Name: Intelligent Phone Jamming Device Bomb Eod Jammer 20MHz-6000MHz
Brand: Pinnacle Technology Co., Limited
SKU: UAV-P19
Price: 22,238.00 USD
Availability: InStock

Home > products > Portable Signal Jammer >

Intelligent Phone Jamming Device Bomb Eod Jammer 20MHz-6000MHz

6000MHz phone jamming device

Eod phone jamming device

Intelligent eod jammer

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

UAV-P19

Request A Quote

Product Details

Model NO.:

PTC-P19

Frequency Range:

20-6000MHz

Jamming Distance:

50-200meters

Jamming Solution:

Artificial Intelligence

IR Remote Control:

For Turning On/off Jammer

Ethernet Software:

Control The Power And Failure Alarm

Specification:

740x490x250mm

Application:

VIP Protection

Highlight:

6000MHz phone jamming device

Eod phone jamming device

Intelligent eod jammer

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Packaging Details

Carton

Delivery Time

10-20days

Payment Terms

T/T, Western Union

Supply Ability

50000

Custom Portable Cellular Phone Blocker EOD Bomb Signal Scrambler Device

Get Best Price

Video

Improvised Explosive Devices RCIED Jammer Phone Signal Blockers For Vehicle

Get Best Price

Video

800W High Power Cell Phone Scrambler Jammer Scrambler Pelican Case

Get Best Price

Video

6 Antenna Cell Phone Blocker Device Pelican Wifi Blocker Moistureproof 350W

Get Best Price

86-755-86239323

Contact Now

Product Description

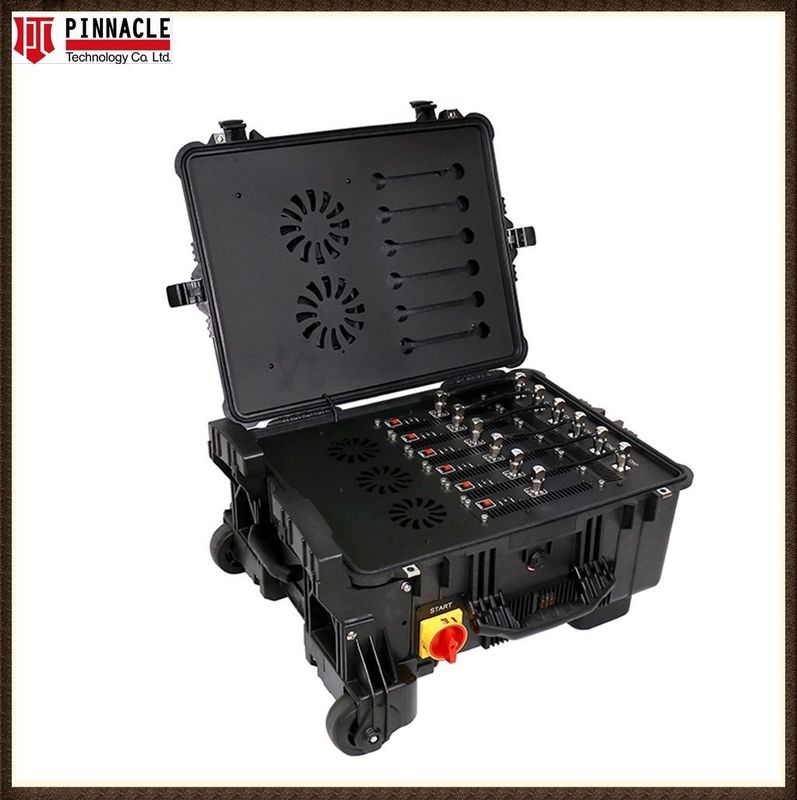

This portable jamming system from 20MHz to 6Ghz NO GAP, designed for safer disabling all IED Bombs signals with AI (Artificial Intelligence) technolony, Consisting multiple transmission frequency bands and high transmission power, used for force protection. The IED Jammer consists of a multi-channel jamming transmitter and unique software, configured as a modular jamming system that allows the end-user to select protection against any threats. Delivering powerful jamming signals through a matching array of antennas. When installed in a vehicle or during EOD division for boom disposals it creates a secure electronic shielding around the anti-IED vehicle, providing IED protection to the entire team.

Basic RF Technical Parameters:
Part No.: PTC-P19
Total Output Power: 400W
Working Channels: 19CH
Jamming Frequency Range: 20-6000MHz for optioin
Jamming Range: 100-300 meters, still depending on the local signal strength
Jammer Size: 740×490×250mm
N.W: 35kgs
Antennas: Built-in High Gain Omni Antennas
Internal Modulation: AI Detection and Jamming Technology
Signal Source: AI Detection and Jamming Module
Power Supply: 220VAC/28VDC
Power Consumption: 600W for each jammer case
Sweep rate: Fixed
Support Remote control and Ethernet Software Contorl
Warranty: 2years

The technical Specification of PTC-P19B180W

Channel	Working Frequencies	Output Power(±1dBm)
Jammer 1
CH1	20-400MHz	43dBm
CH2	400-800MHz	43dBm
CH3	800-1200MHz	43dBm
CH4	1200-1600MHz	43dBm
CH5	1600-2000MHz	43dBm
CH6	2000-2400MHz	43dBm
CH7	2400-2800MHz	43dBm
CH8	3400-3800MHz	43dBm
CH9	5100-5500MHz	43dBm
CH10	5500-5900MHz	43dBm
Jammer 2
CH1	750-821MHz	43dBm
CH2	851-894MHz	43dBm
CH3	920-960MHz	43dBm
CH4	1805-1880MHz	43dBm
CH5	1930-1990MHz	43dBm
CH6	2110-2170MHz	43dBm
CH7	2300-2400MHz	43dBm
CH8	2620-2690MHz	43dBm
CH9	2400-2500MHz	43dBm

Total output power of each Jammer		180W-200W
Each channel power		20W
Internal Modulation:		AI Detection and jamming technology
Jamming Range		20-200meters
Jammer dimension		740×490×250mm
Net weight (included battery)		About 30kgs
Infrared remote control		For switching ON/OFF Jammer
Computer software control		Monitoring working status, failure alarms, control the output power
Power consumption		1000W
Antennas		Built-in high gain Omni antennas
Working Humidity		30%-80%
Working Temperature		-20~+50ºC
2years Warranty

System Features and Advantages :

AI (Aritificial Intelligence) Detecting and Jamming technology for high efficiency.
Specially designed with 2 fully portable high grade trolley cases to cover all the mobile signals 2G/3G/4G/5G and Wifi frequencies and UHF/VHF with no frequencies gap. Easily move on the bumpy uneven roads. Resistance from bumps and falls.
Built-in high gain 360ºC Omni antennas for protection from all 360ºC directions.
Fully rainproof design available for some rainy climates. Compound by high IP grade waterproof parts to ensure high waterproof capabilities rain.

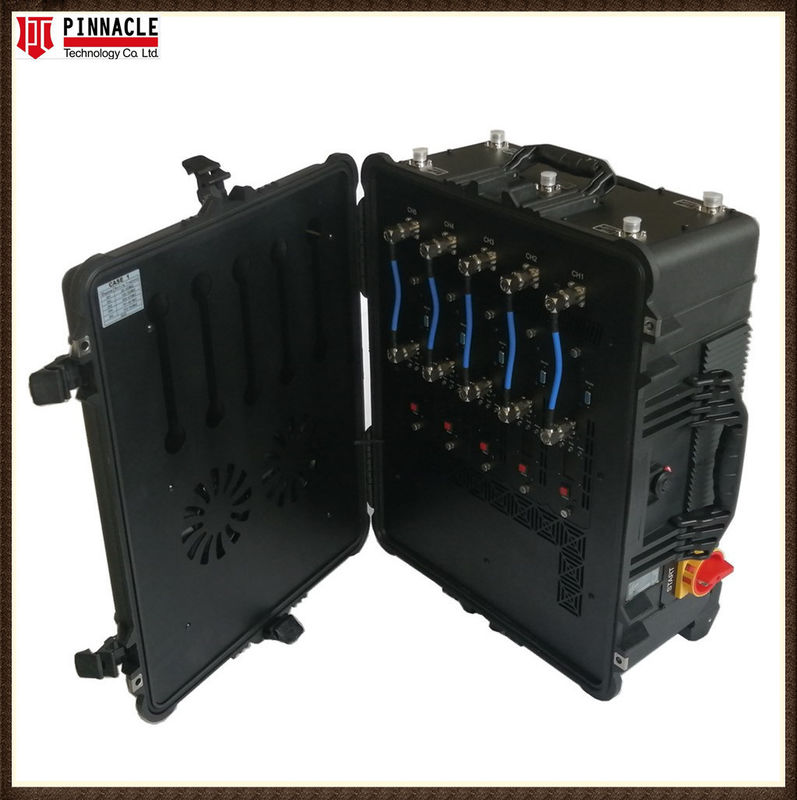

Modular construction for easy removal and connection, maintenance, repair and convenience for future upgrade.
Delicate ventilation design and heat sink built into the case to ensure uninterrupted work.
Each Jammer case contains up to 9 different inhibition modules simultaneously.
Each module with its antenna can work as an independent complete unit.
Each module can be controlled individually. Plug and Play programming.
Support an infrared remote control for turning ON/OFF Jammer.
Support NMS software control, for monitoring the working status and failure alarms.
Built-in 1hour Internal rechargeable battery with battery indicator light. More batteries for option.
There is an LCD screen of the equipment to indicate the level of battery.
Support external backup battery input for option, adapted for external battery.Facilitating battery change in time for use in the field and thus extending hours duration of the equipment.
The Jammer can be portable and mounted in a vehicle, which is the best advantage of the system. The jammer can combine entire frequency bands installed in vehicle, equipped with vehicle mount antennas as required.
Specially designed for EOD divisions when doing bomb disposal.

Remote Control:

IR Remote control or Wired remote control and NMS( Network management system) monitoring software both can be available

IR Remote control or Wired remote control for option

NMS Software Control functions:
a. Working Frequency bands and Output Power Controllable by Software
b. Output Power and VSWR Alarming status
c. Remote Monitoring software to adjust the RF Power of each Band
d. Power Amplifier ON/OFF of each Band by Software

Rechargeable Battery:
Battery type: Lithium Iron Battery
Battery quantity: 1pcs
Battery capacity: 24V-40Ah
Battery working time: 1 hour for each case
Battery Usage Level Indicator
Low battery warning: available
More spare battery available

Antennas:
Built-in Customized High Gain Omni Antennas or Directional Antennas.

disposal squads, VIP protection, EOD(Explosive Ordnance Disposal), Special RCIED disposal department and government security forces, bomb squads, anti-terror units, anti-drug units, border control units, checkpoints etc.
