Name: IP65 Waterproof School Mobile Phone Signal Jammer Jamming Device 210W
Brand: Pinnacle Technology Co., Limited
SKU: UAV-WP70W
Price: 22,238.00 USD
Availability: InStock

Home > products > Mobile Phone Signal Jammer >

IP65 Waterproof School Mobile Phone Signal Jammer Jamming Device 210W

IP65 Waterproof Mobile Phone Signal Jammer

210W Mobile Phone Signal Jammer

School phone jamming device

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

UAV-WP70W

Request A Quote

IP65 Waterproof School Mobile Phone Signal Jammer Jamming Device 210W

Product Details

Model NO.:

PTC-WP70W

Working Bands:

7bands

Total Output Power:

70W/140W/210W

Jamming Frequencies:

2g/3G/4G/5g/WiFi Signals

Antennas:

Internal Panel Antennas

Jamming Range:

10-60m

Built-in Battery:

3hrs For Option

Waterproof Jammer:

IP65

Application:

School/Prison/Jail/Office

Software Control:

Adjust Power And Monitor Working Failures

Highlight:

IP65 Waterproof Mobile Phone Signal Jammer

210W Mobile Phone Signal Jammer

School phone jamming device

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Packaging Details

Carton

Delivery Time

10-20days

Payment Terms

T/T, Western Union

Supply Ability

50000

WIFI 2.4G 5.8G VHF UHF Mobile Phone Signal Jammer Scrambler Device

Get Best Price

20MHz-6000MHz Cellular Mobile Phone Signal Jammer Blocker Jamming Devices

Get Best Price

IP65 Waterproof School Mobile Phone Signal Jammer Jamming Device 210W

Get Best Price

High Power Portable Cellphone Jammer Signal Scrambler 8CH OEM

Get Best Price

86-755-86239323

Contact Now

Product Description

PTC-WP70W Outdoor Waterproof Jamming System is specially designed for blocking all RF cellular networks and all kinds of cellular standard in the world, includes 2g/3g/4g/5g/ WIFI 2.4g & 5.8g with waterproof function to provide you privacy, security and peace in all ways. It has been used widely in prisons/Jails and schools in many countries.

Technical Parameters

Channel	Working Frequencies	Output Power(±1dBm)
CH1	750-803 MHz	40 dBm/10W
CH2	869-894 MHz	40 dBm/10W
CH3	925-960 MHz	40 dBm/10W
CH4	1930-1990 MHz	40 dBm/10W
CH5	2110-2170 MHz	40 dBm/10W
CH6	2400 – 2500 MHz	40 dBm/10W
CH7	2500-2600 MHz	40 dBm/10W
CH8	2600 – 2700 MHz	40 dBm/10W
CH9	3300-3400 MHz	37dBm/5W
CH10	3400-3600 MHz	37dBm/5W
CH11	3600-3800 MHz	37dBm/5W
CH12	5150-5450 MHz	33dBm/2W
CH13	5450-5850 MHz	33dBm/2W

Total working bands	7 -13 bands for option
Each band power	10W/5W/2W for option
Total output power	70W
Power Supply	AC-110-240V
Band power adjustable	power controllable by software control
Infrared remote control	to Turn on/off Jammer
Software Control interface	RJ45
Antennas	7pcs high gain internal Panel antenna
Jamming Range	about 2-60meters@-80dBm, depend on local signal strength
Dimension	400288155mm(LxWxD)
N.W	12kgs (no cover packing)
Stand alone module design
Totally waterproof design, IP65.
VSWR over protection and temperature over protection
Consumption Power: 210W
Storage temperature: -20℃ ~+60℃ Humidity:5%~90%

Advantages and Features:

1. Each Jammer can jam up to 7 frequencies simultaneously.

2. Built-in high gain directional antennas for disguising, so the users dont need to install the antennas on site.

3. Specially equipped with IP65 Waterproof and solid housing for all weather protection.

4. Supports Remote control for switching ON/OFF Jammer

5. Supports Remote Access Control (computer internet software control) for controlling each band power. Failure alarms and running time.

Jammer Failure Alarms: Such as the cabinet opened maliciously, RF cables cut off deliberately, Modules failure,Temperature problems, the failure alarms will be sent to software.

6. UPS and battery backup in case of mains power failure for option.

7. ON/OFF each modules separately by computer software.

8. For the cellular phone jamming, only block the downlink frequencies, not disturb the uplink for keeping the BTS normal running.

9. Continuous operation, even in hot climates, with no time limit.

10. Heat sink designing combing with the fans to make system in a cooling status.

11. Secure design to avoid sabotage.

12. (VSWR) circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.

13. Different directional antennas and 360 ºC omni antennas for option.

14. 2Years Quality Warranty

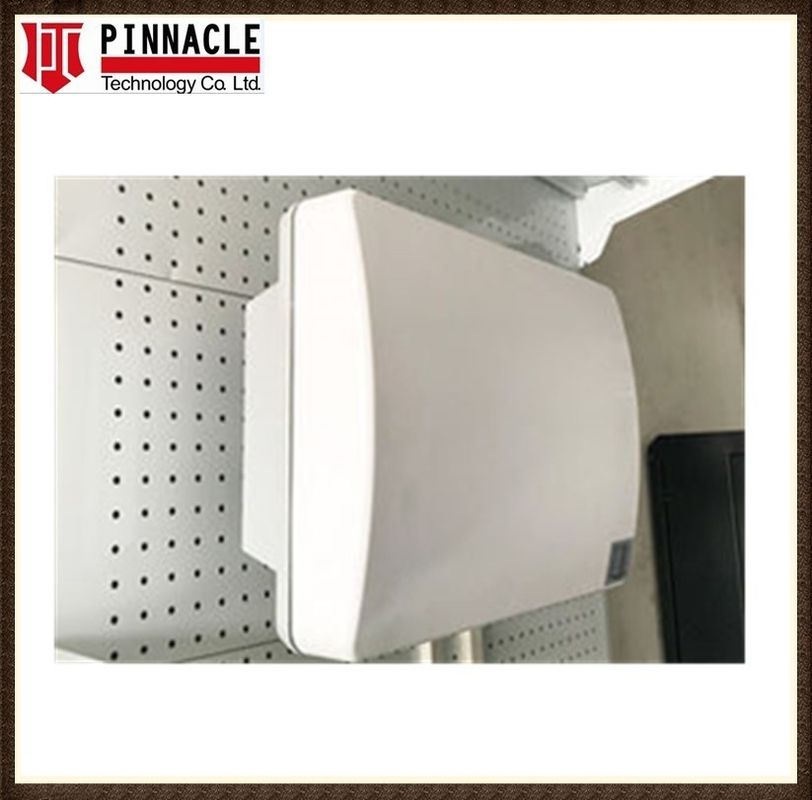

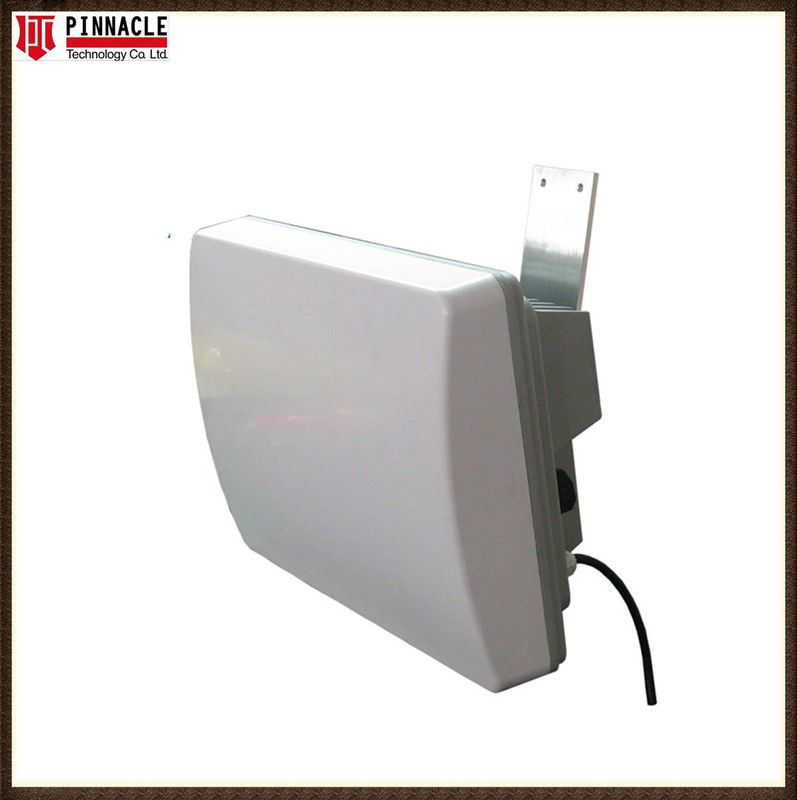

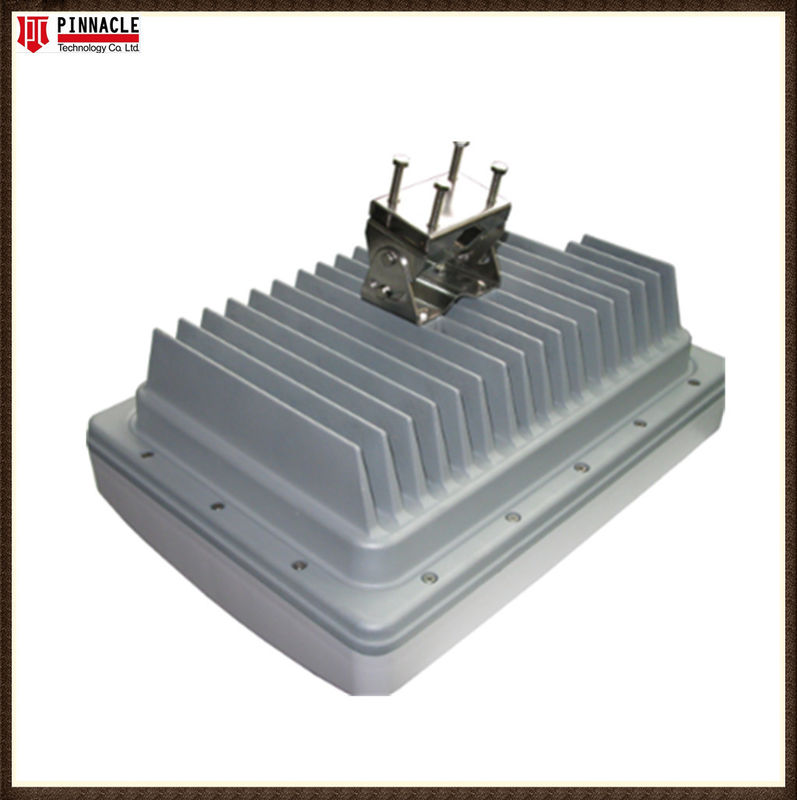

Detailed Photos
