Name: Low Altitude UAV Radar Systems Drone Defense Surveillance With EQ Camera
Brand: Pinnacle Technology Co., Limited
SKU: PMA3KM
Price: 22,238.00 USD
Availability: InStock

Home > products > Drone Detection and Jamming System >

Low Altitude UAV Radar Systems Drone Defense Surveillance With EQ Camera

Low Altitude uav radar systems

surveillance uav radar systems

Low Altitude uav surveillance radar

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

PMA3KM

Request A Quote

Product Details

Model NO.:

PTC-PMA3KM

Radar Detection:

Up To 3km

EQ Camera Resolution:

1080p

Jamming Frequencies:

1.5g+2.4G+5.8g+900MHz+1.2g+433MHz

Jamming Distance:

2km

Application:

Drone Detection And Jamming

System Combination:

Radar+EQ Camera+Radio Detection+Jamming+

Highlight:

Low Altitude uav radar systems

surveillance uav radar systems

Low Altitude uav surveillance radar

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Packaging Details

Carton

Delivery Time

10-20days

Payment Terms

T/T, Western Union

Supply Ability

50000

Low Altitude UAV Radar Systems Drone Defense Surveillance With EQ Camera

Get Best Price

Video

Waterproof UAV UAS FPV Signal Detection And Jamming System 20mhz-6000mhz

Get Best Price

Video

Fixed Type UAVS Drone Signals Detection And Drone Signal Jammer Device 2.4G 5.8G

Get Best Price

Video

High Speed EO Military UAV Camera For Tracking And Identify Drone 2km

Get Best Price

86-755-86239323

Contact Now

Product Description

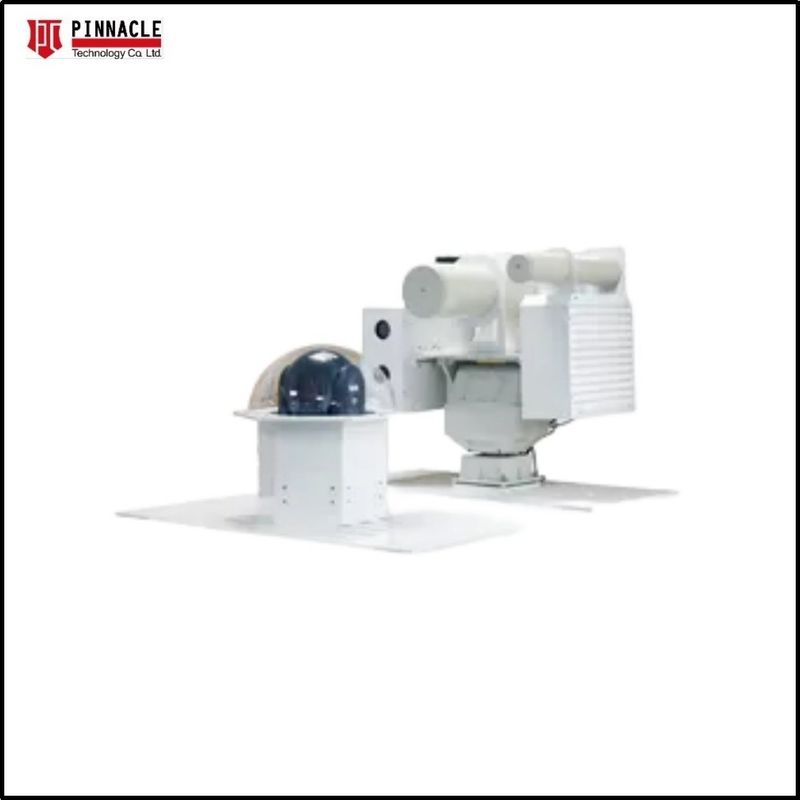

Low Altitude Radar Detection Drone Defense System With EQ Camera And Anti Drone System

Low-Altitude Defense System is an advanced modular design system,which is comprised of security radar, EO camera, radio detector and radio jammer for UAV threats elimination.

It is quick to deploy, easy to maintain and upgrade. High performance module is optional for tighter and larger security coverage. Multiple devices can be networked together.

LADS systems contains all solid-state pulsed Doppler radar, high speed EO camera , radio detector and radio jammer for 3km security coverage. The angle of radar antenna is adjustable to adapt different environments

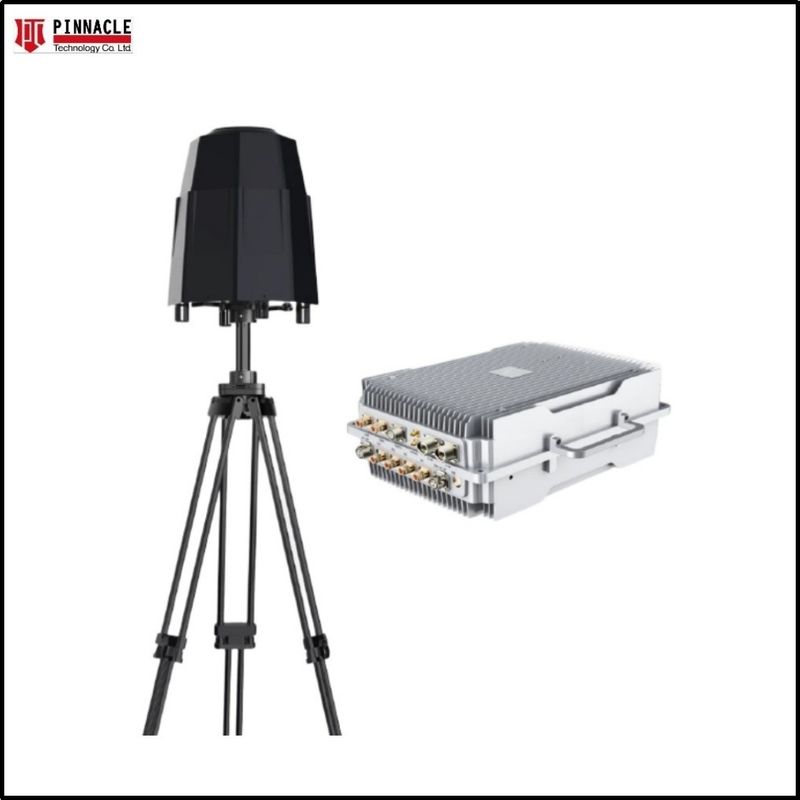

1. The specifcaiton of Radio Drone Detection and Jamming system

Device	Item	Index
Detection	Detection frequency band	900M,2.4G, 5.8G
	Detection range	360 °
	Detection time	≤ 9s
	Detection success rate	≥ 95%
	Detection and identification range	≥ 5km
	Max targets detection	≥ 24
Interference	Frequency band	900M, 1.5G, 2.4G, 5.8G
	Effective range	2km (flat and open area without shelter)
	Output power option	10dBm (0.01W), 20dBm (0.1W), 30dBm (1W), 37dBm (5W), 40dBm (10W)

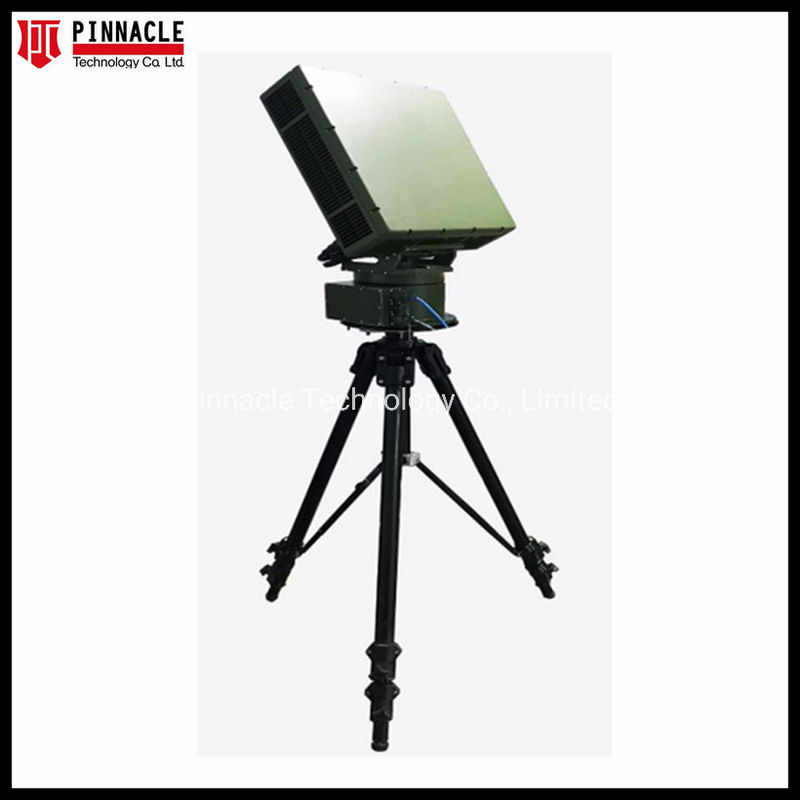

2. The specification of Radar and EQ Camera

Device	Item	Index
Radar	System	3-D Active Phase Array
	Band	Ku band(16.1GHz~16.5GHz)
	Power	≤100w
	Detection range	Maximum range:3km (RCS=0.01m²)
	Detection range	Minimum range: 200m
	Range resolution	≤10m
	Azimuth resolution	≤1°
	elevation resolution	≤3°
	range resolution	≤20m
	Antenna scanning cycle	6~10 rpm
	Directional coverage	Horizontal: 360°, (≤7s)
	Directional coverage	Vertical: 42°
	Scanning range	360° mechanical scanning
	Weight	≤30kg
	Dimension(Radar antenna)	422mm (L) x 422mm (W) x 124mm (D)
	Power supply	DC 24V, 10A
	Power consumption	≤120W
	IP	66

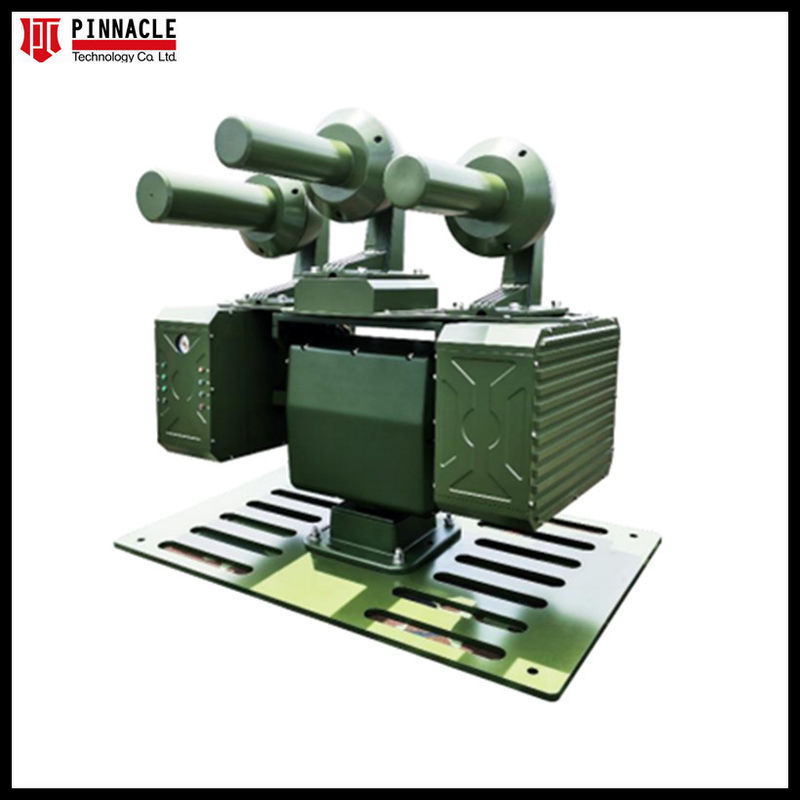

Device	Item	Index
Lens&PTZ	Movement Range	pan:360°, tilt: -45°~+90°
	Speed	Pan speed:≤80°/s Tilt speed:≤60°/s
	Angle of View	Horizontal field of view: 0.54°~18.12° (wide-tele)
	Angle of View	Vertical field of view: 0.41°~13.48° (wide-tele)
	View Range	Pan Range: 360° endless
	View Range	Tilt Range: -45°~+90°
Visible light	Resolution	1080p
	Pixels	≥2MP
	Min. Illumination	≥0.002Lux
	Focal Length	22.5~755mm,34x optical
Illuminator	Laser source	infrared laser
	Wavelength	810nm
	Power	13W
	Angle	0.5°~20°
	Synchronization accuracy	0.1°
System	UAV identification & tracking range	Clear sky:≤2km
	UAV identification & tracking range	Night vision:≤1km
	Identification time	<3S
	IP	66
