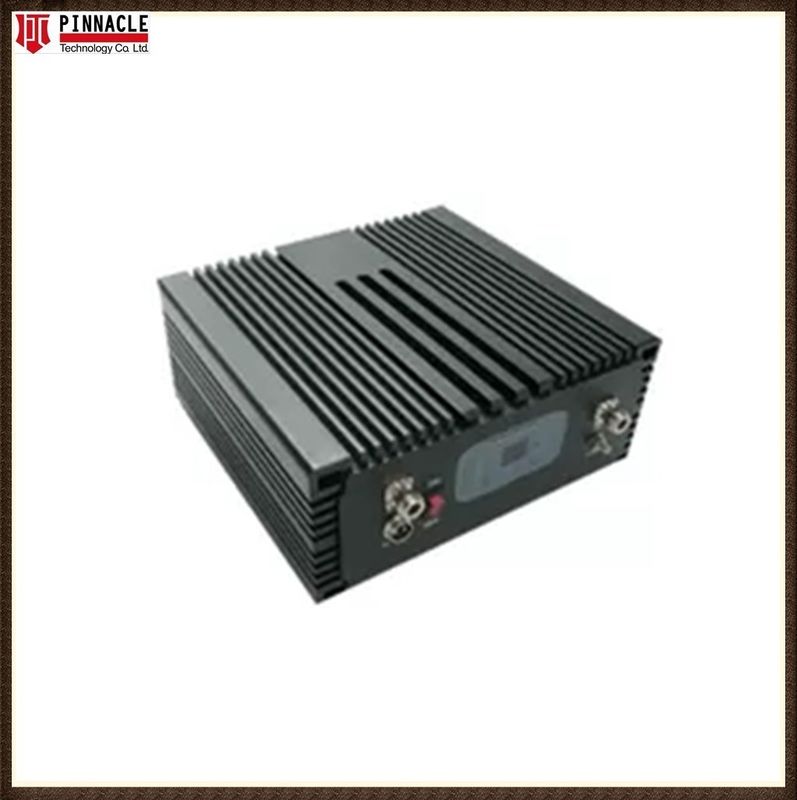

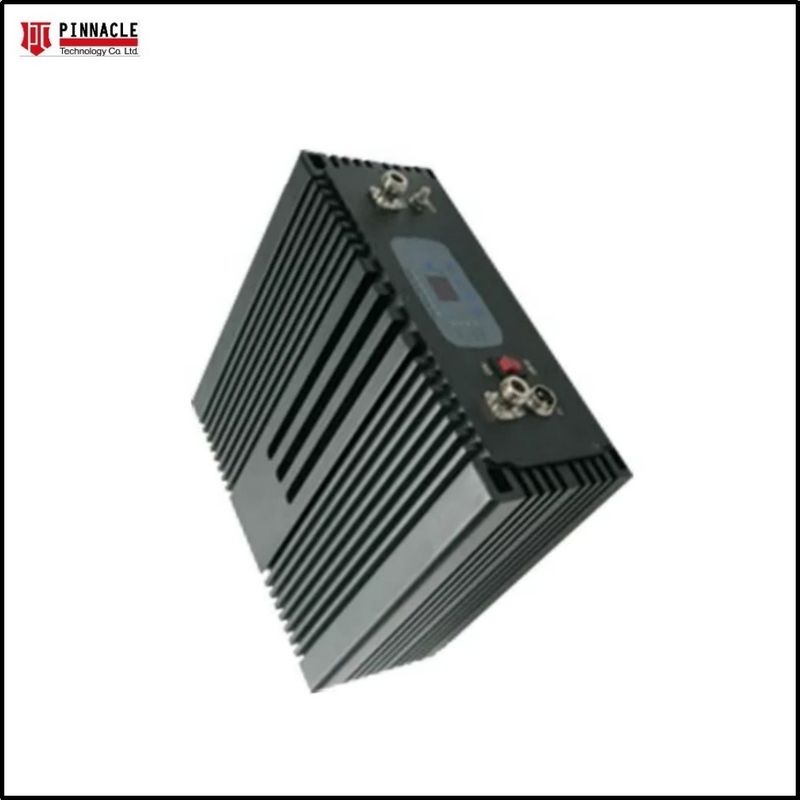

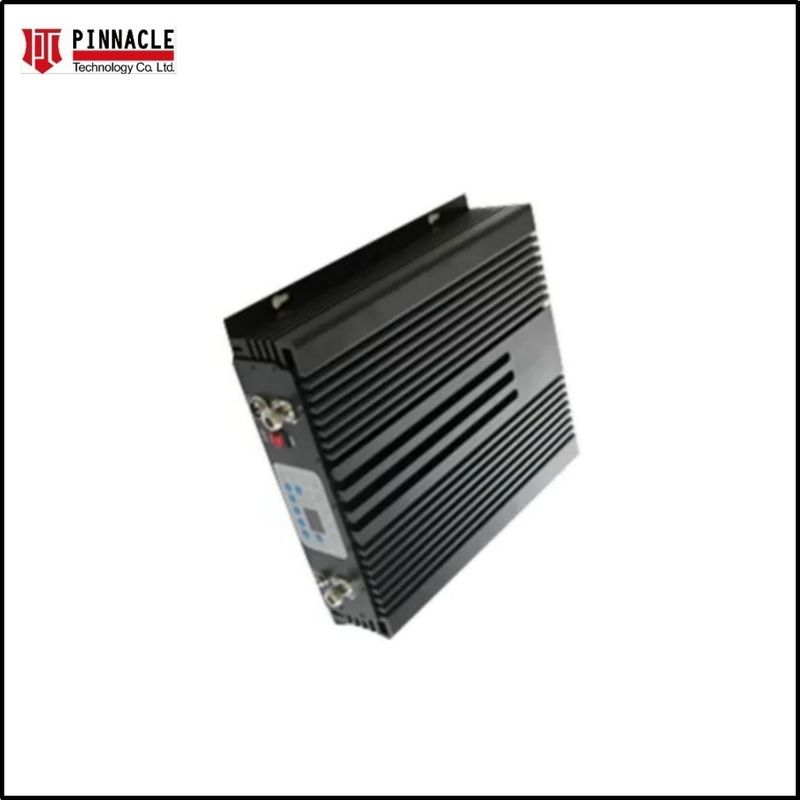

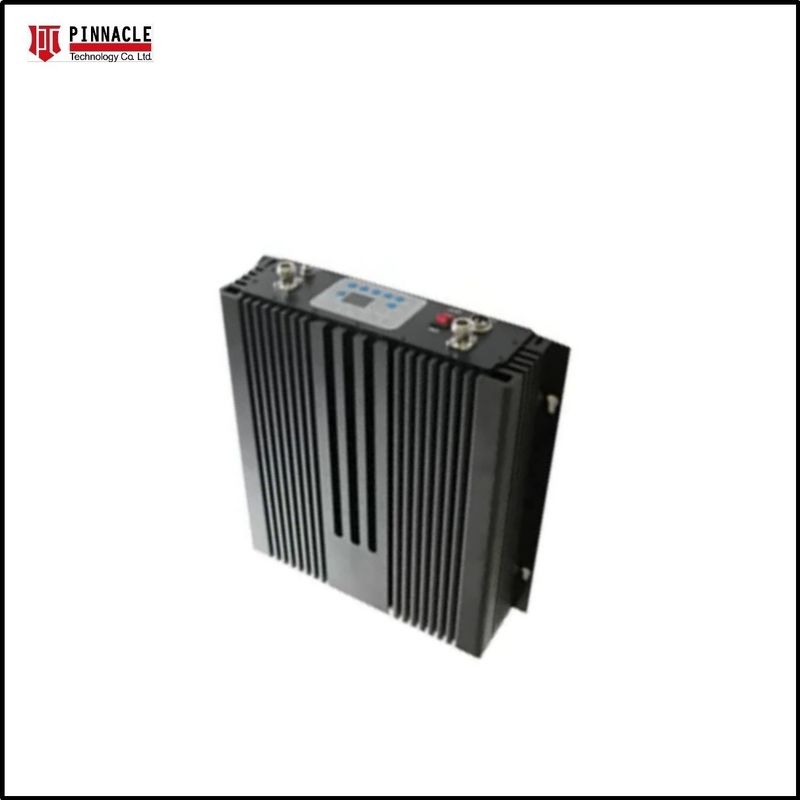

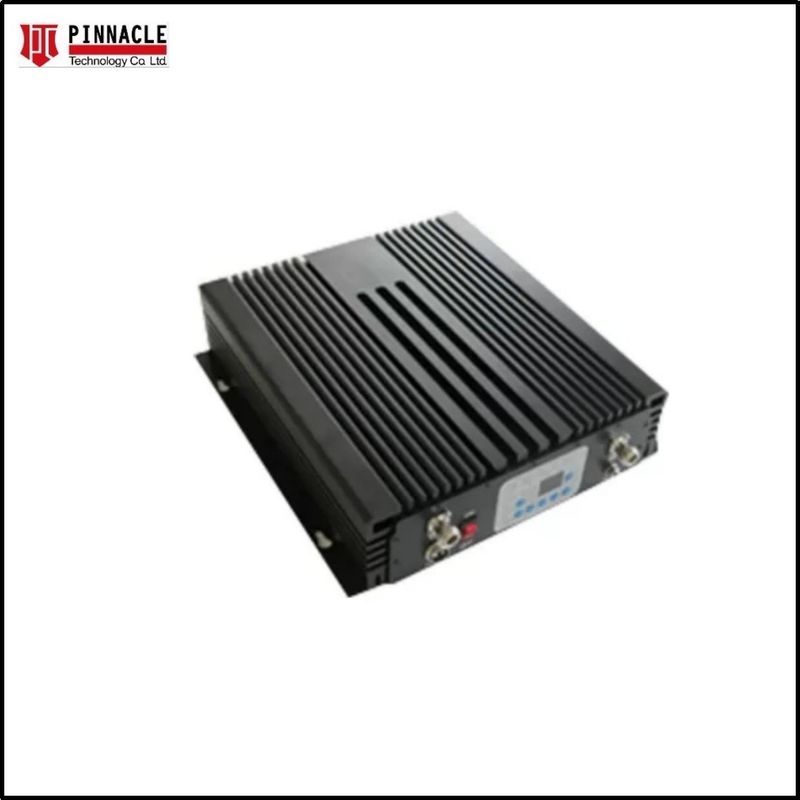

Wireless GSM 4G Mobile Cell Phone Signal Booster Repeater Dual Band Signal Booster
Brand Name:
PTC
Model Number:
2D16B
Place of Origin:
Shenzhen China
Certification:
ISO 9000
MOQ:
1set
Price:
Contact Us
Supply Ability:
50000
Delivery Time:
10-20days
Payment Terms:
T/T, Western Union
Standard Packaging:
Carton
Product Details
Highlight:
Wireless GSM 4g mobile signal booster
,portable 4g mobile signal booster
,Dual Band portable cell phone booster
Model NO.:
PTC-2D16B
Frequency Band:
Dcs And 4G-2600MHz
Output Power:
15dBm
Dimension:
295*283*76mm
Product Description
Detailed Specifications & Features
Dcs 4G Lte Dual Band Selective Ics Pico Repeater
Model: PTC -2D16B
Product Instructions
The Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
- Two signal ports with full duplex design
- High system gain
- Linear power amplification to effectively suppress inter-modulation and spurious emission
- Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously
- Unique color LEDs to indicate power supply and state and alarm
- Simple installation with external AC/DC adapter
Applications
- To expand signal coverage or fill signal blind area where signal is weak or unavailable.
- Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots
- Application Diagram
Technical Specifications
| Items | DCS | 4G LTE | |
| Frequency Range (Customized) |
Uplink | 1710~1785MHz | 2500~2570MHz |
| Downlink | 1805~1880MHz | 2620~2690MHz | |
| Working Bandwidth(DL/UL Selective) | 75MHz | 60MHz | |
| Gain(Uplink/Downlink) | ≥ 70dB | ≥ 70dB | |
| Output Power (Customized) | 15dBm | 15dBm | |
| Manual Gain Control | ≥31dB | ||
| AGC Control Range | ≥20dB | ||
| Max, Input Power Without Damage | ≤0dBm | ||
| In-Band Power Ripple | ≤ 6Db(P-P) ≤3dB/3.84MHz | ||
| VSWR | ≤ 2 | ||
| Group Delay Time | ≤5ìs | ||
| I/O Impedance | 50Ù | ||
| Noise Figure | ≤8dBm | ||
| Out-of Band Gain(DL&UL) | ±2.5MHz ≤3dB ±5MHz ≤15dB |
2.7 ≤ f offset <3.5MHz ≤ 60dB | |
| 3.5 ≤ f offset <7.5MHz ≤ 45dB | |||
| 12.5 ≤ f offset ≤ 35dB | |||
| Spurious Emission | 9kHz~1GyZ : ≤ 60dBm/30kHz 1GHz~12.75GHz: 30dBm/30kHz |
||
| Third-order Inter-Modulation | Max:-40dBc | ||
| RF Connector | N-Type(Female) | ||
| Power Consumption | ≤40W | ||
| Power Supply | AC 100~240V | ||
| Dimensions | 295*283*76mm | ||
| Weight | ≤5.6kg | ||
| Alarm Monitoring System | Alarm for uplink self-oscillation | ||
| Indication LED | Power supply, Alarm, state | ||
| Operation Temperature | -10~50ºC | ||
| IP Rating | IP30 | ||
| Humidity | ≤95% | ||
