Home > products > Portable Signal Jammer >

8 Antenna Cell Phone Reception Blocker Scrambler RCIED Convoy jammer 1300W

1300W cell phone reception blocker

RCIED Convoy cell phone reception blocker

1300W cellphone scrambler

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

Request A Quote

Product Details

Part Number:

PTC-P8

Jamming Freuencies:

Cellphone Signals And Wifi Gps

Jamming Distance:

10-100meters

Software Controller:

Adjust Power And Monitor Jammer Failures

Band Power:

10-100W

Waterproof Level:

IP54

Highlight:

1300W cell phone reception blocker

RCIED Convoy cell phone reception blocker

1300W cellphone scrambler

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Packaging Details

Carton

Delivery Time

10-20days

Payment Terms

T/T, Western Union

Supply Ability

50000

Custom Portable Cellular Phone Blocker EOD Bomb Signal Scrambler Device

Get Best Price

Video

Improvised Explosive Devices RCIED Jammer Phone Signal Blockers For Vehicle

Get Best Price

Video

800W High Power Cell Phone Scrambler Jammer Scrambler Pelican Case

Get Best Price

Video

6 Antenna Cell Phone Blocker Device Pelican Wifi Blocker Moistureproof 350W

Get Best Price

86-755-86239323

Contact Now

Product Description

Product Details:

Introductions:

This Jamming system including 2units Portable Pelican Jammers (Jammer A + Jammer B), which designed for blocking HF, VHF, UHF, GPS, mobile phone signals and also WIFI 2.4G and 5.8G signals.

The Jamming systems used state-of-art AI (Artificial Intelligence) Technology for maximum performance and jamming the signals transmits to activate bombs.

Jamming radius of this system depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc.

Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band.

Product Technical Details:

Jamming Power Division:

Module / Channel		Frequency Band	RF Power	Jamming target
Module 1	Channel 1	20-200MHz	40W	HF , Remote Control, Walkie Talkie
Module 2	Channel 2	200-400MHz	40W	VHF Radio, Remote Control, Walkie Talkie
Module 3	Channel 3	400-600MHz	40W	VHF Radio, Remote Control, Walkie Talkie
Module 4	Channel 4	1560-1620MHz	40W	GPS L1
Module 5	Channel 5	1200-1300MHz	40W	GPS L2
Module 6	Channel 6	5150-5850MHz	40W	WIFI 5.8g
TOTAL			240W

Jammer B:

Module / Channel		Frequency Band	RF Power	Jamming target
Module 7	Channel 7	758-803MHz	40W	Mobile 4g 700MHz
Module 8	Channel 8	851-894MHz	40W	Mobile 850MHz
Module 9	Channel 9	1930-1990MHz	40W	Mobile 1900MHz
Module 10	Channel 10	2110-2180MHz	40W	Mobile 3g 2100MHz
Module11	Channel 11	25500-2690MHz	40W	Mobile 4g 2600mhz
Module 12	Channel 12	2400-2500MHz	40W	Satellite ; Remote Control, WiFi2.4g
TOTAL			240W

System Features and Advantages :

l AI Detection and Jamming technology for getting utmost Jamming efficiency.
l Specially designed with 2 fully portable military grade trolley cases to cover 20-6000mhz.
easily move on some bumpy uneven roads. Resistance to bumps and falls.l
l Modular construction for easy removal and connection, maintenance, repair and upgrade.
l Delicate ventilation design and heat sink built into the case to ensure uninterrupted work.
l Each case contains up to 8 different inhibition modules simultaneously, it covers different frequency bands. Each inhibition module can be reprogram to have six channel frequencies as required. Each module LCD display shows the operating frequency, power output, VSWR, amperage,voltage and temperature. To make it easier to diagnose computer problems.
l Each module with its antenna can be used as a complete unit.
l Each module can be controlled individually. Plug and Play programming.
l Equipped with a wired remote control waterproof panel. The operator can turn ON / OFF each module via the wired remote control and display the battery level.
l There is a LCD screen on the control panel of the equipment to indicate the level Of battery.

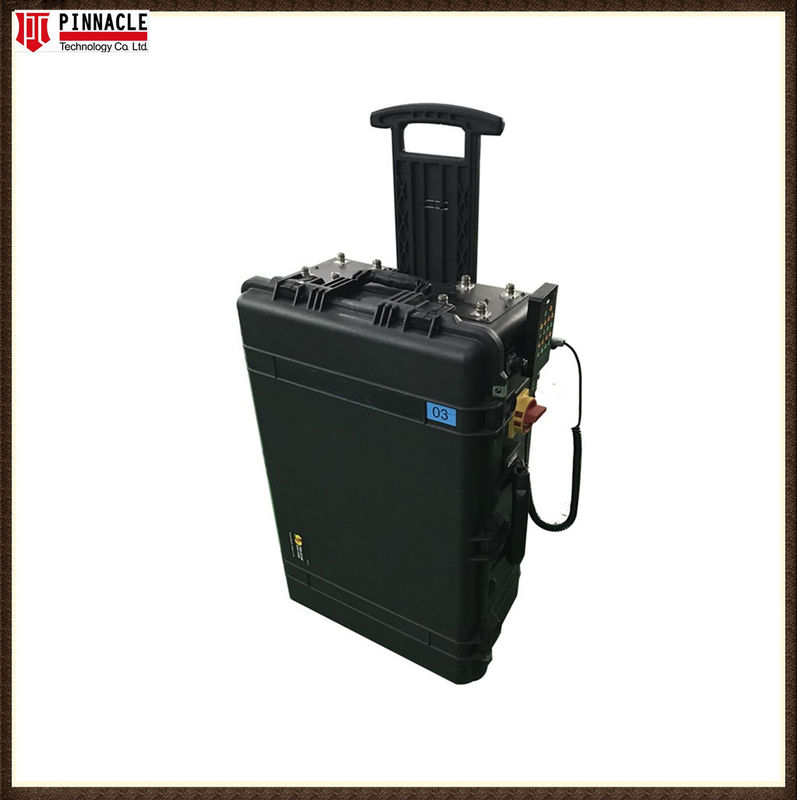

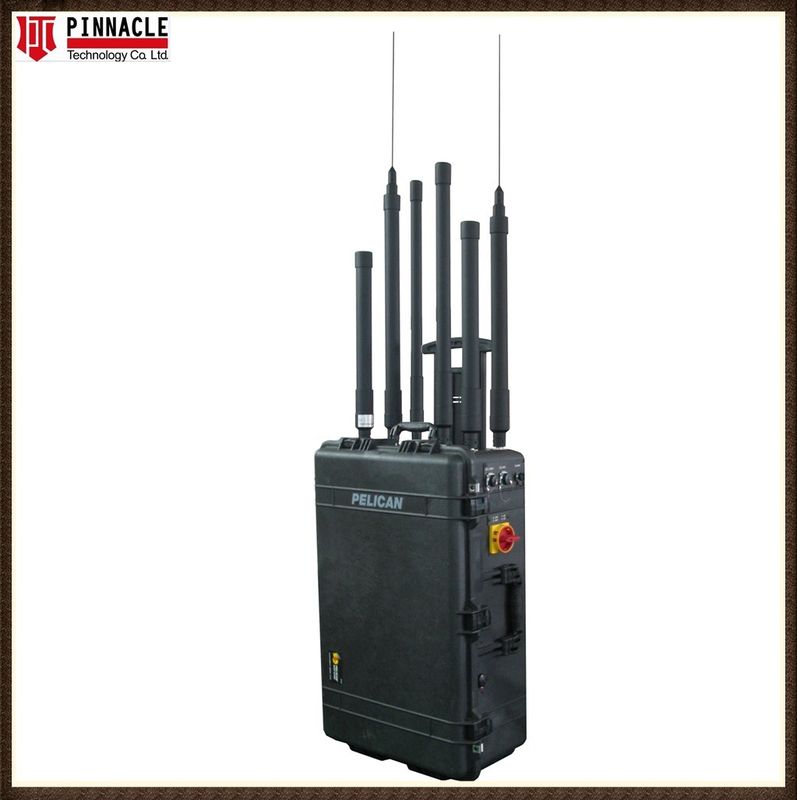

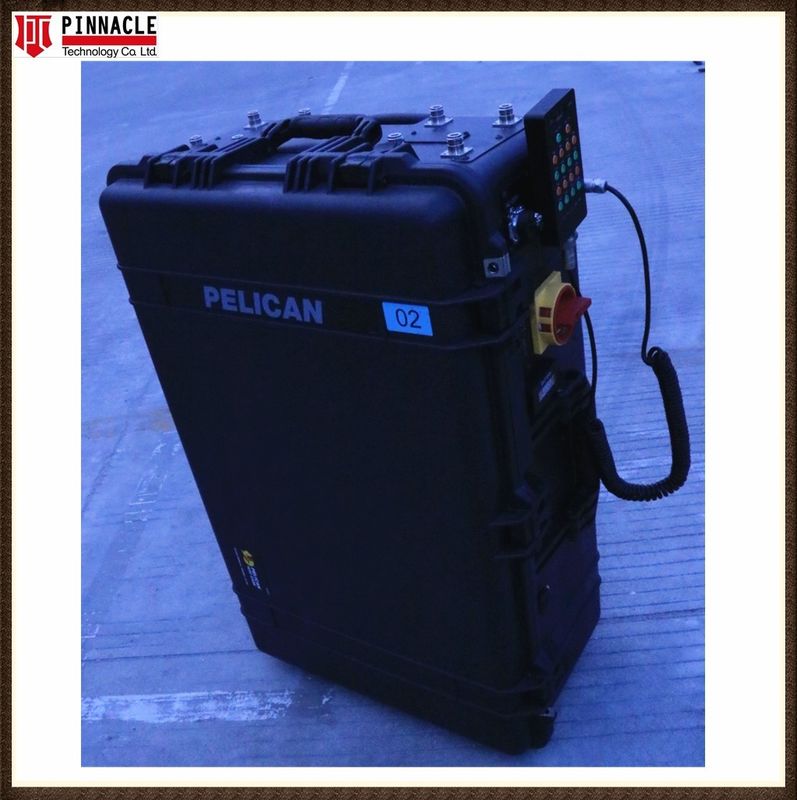

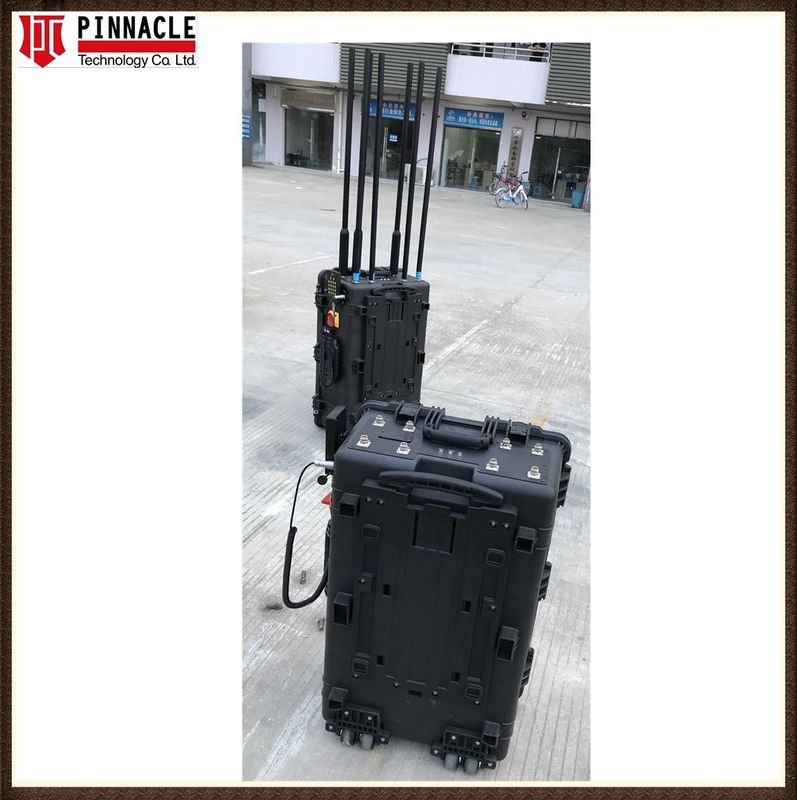

Product Image:
