Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
P8

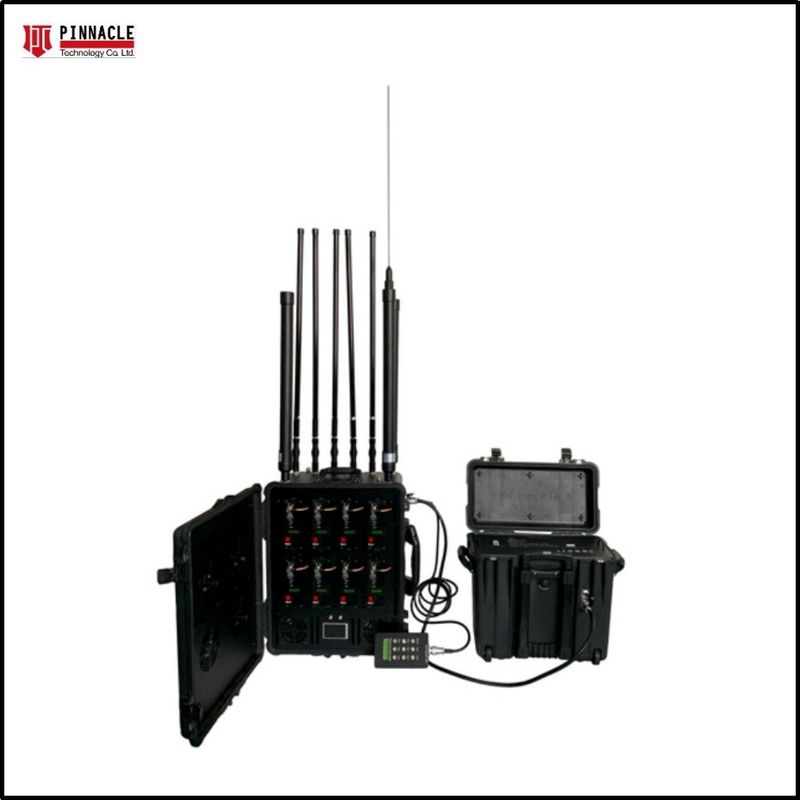

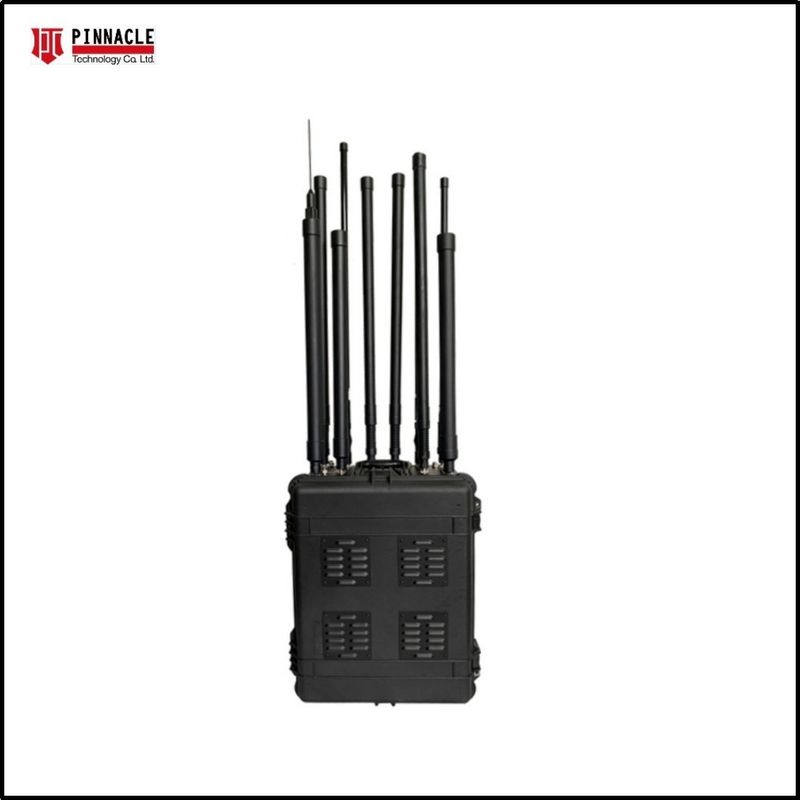

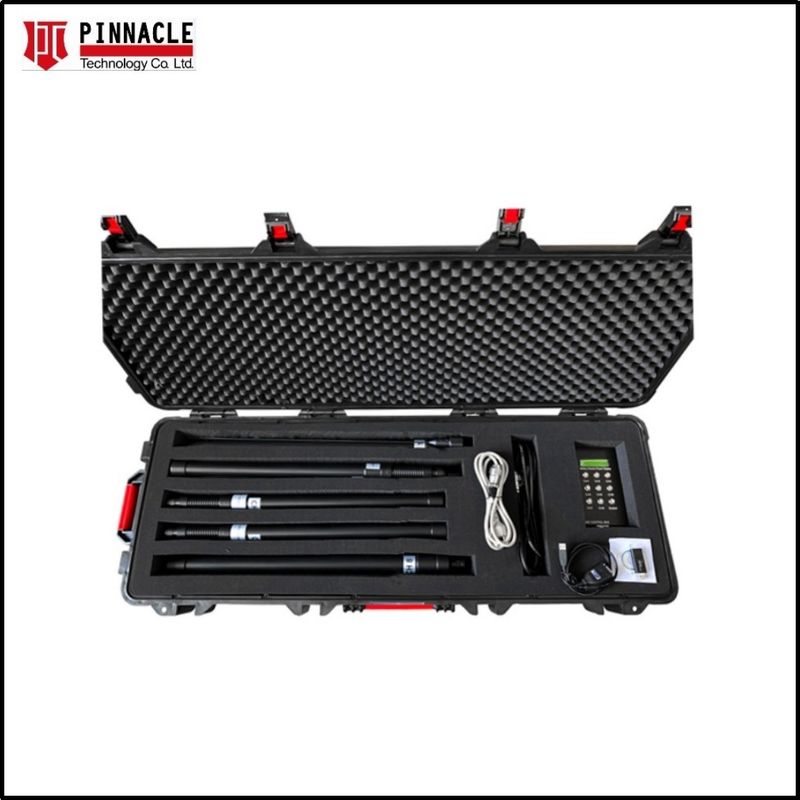

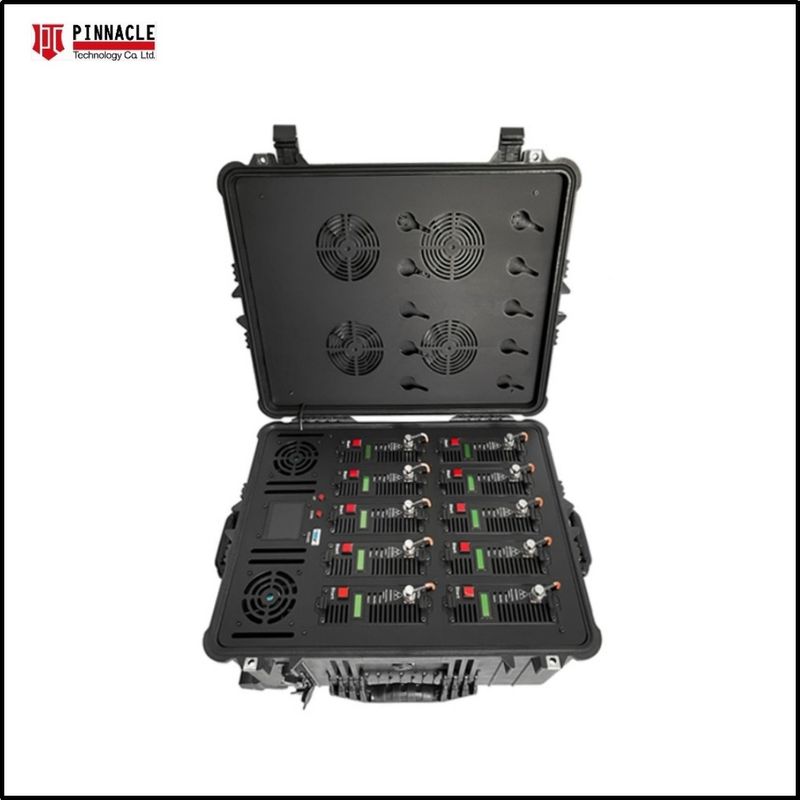

This Jamming system including 1 unit Portable Pelican Jammer, which designed for blocking the mobile phone signals and also WIFI 2.4G and 5.8G signals.
Product Technical Parameters:
| Channel | Working Frequency | Output Power(±3dBm) |
| CH1 | 20-100 MHz | 44.77dBm |
| CH2 | 100-300MHz | 44.77dBm |
| CH3 | 300-500MHz | 47dBm |
| CH4 | 800-1000MHz | 47dBm |
| CH5 | 1520- 1670 MHz | 48.75dBm |
| CH6 | 1800-2000 MHz | 48.75dBm |
| CH7 | 2000-2200 MHz | 48.75dBm |
| CH8 | 2400-2690 MHz | 48.75dBm |
| Power: AC 220V | ||
|
Power Consumption : 1000W Mainframe weight: 53.6Kg Size(L×W×H):800×500×310 mm |
||
| Humidity: 5%-95% Running Temperature: -35 to +80 ℃ | ||
Product Features:
l Using UHF broadband interference technology.
l High effective power (channel power) and large interference radius.
l Imported device, slow start circuit design can avoid the mechanical switch fire phenomenon, high integration, stable work.
l Perfect self-protection function. When the device is warned of overheating fault, the shielding device will automatically shut down the failed module to avoid the damage of the shielding device.
