Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
P8
1 - 8 Channels Portable Bomb Jamming system, Portable Cellphone Signal Jammer, Portable VIP Convoy Bomb Jammer, Portable IED Jammer
Product Technical Parameter:
| Channel | Working Frequencies | Output Power(±3dBm) |
| CH1 | 869-894 MHz | 70W |
| CH2 | 920-960 MHz | 70W |
| CH3 | 1805-1880 MHz | 70W |
| CH4 | 2100-2170MHz | 70W |
| CH5 | 2300-2400MHz | 70W |
| CH6 | 2400-2500 MHz | 70W |
| CH7 | 2500-2690MHz | 70W |
| CH8 | 5150-5850MHz | 20W |
| Total working bands | 8bands |
| Each band power | 20/70W |
| Total output power | 510W |
| Power Supply | AC-110-240V, DC-48V |
| Channel Width Adjustable | Each channel frequency width can be adjusted by software |
| Jamming Range | about 10-100meters@-80dBm, depend on local signal strength |
| Antennas | 1set/8pcs high gain Omni antennas (with case) |
| 1set/1pcs 17dBi high gain directional antenna | |
| 1pcs Tripod Pole for directional antenna mounting | |
| Ethernet Software control | Adjust the power and monitor the failure alarms. |
| Wired remote control | to Turn on/off Jammer and adjust the power |
| Software Control interface | RJ45 |
| Dimension | 430*220*630mm(LxWxD) |
| N.W | 35kgs (no cover antennas and packing) |
| Jamming target | 2G&3G&4G&5G mobile phone signals, WIFI 2.4G&5.8G |
| Sweep rate | Fixed |
| Stand alone module design | |
|
Power Amplifier Protectors: |
|
| Consumption Power:1600W | |
| Storage temperature: -10℃ ~+50℃ Humidity:5%~90% | |
| Operating Temperature: -20℃ ~+60℃ | |
Product Features:
l Using UHF broadband interference technology.
l High effective power (channel power) and large interference radius.
l Imported device, slow start circuit design can avoid the mechanical switch fire phenomenon, high integration, stable work.
l Perfect self-protection function. When the device is warned of overheating fault, the shielding device will automatically shut down the failed
module to avoid the damage of the shielding device.
Product Applications:

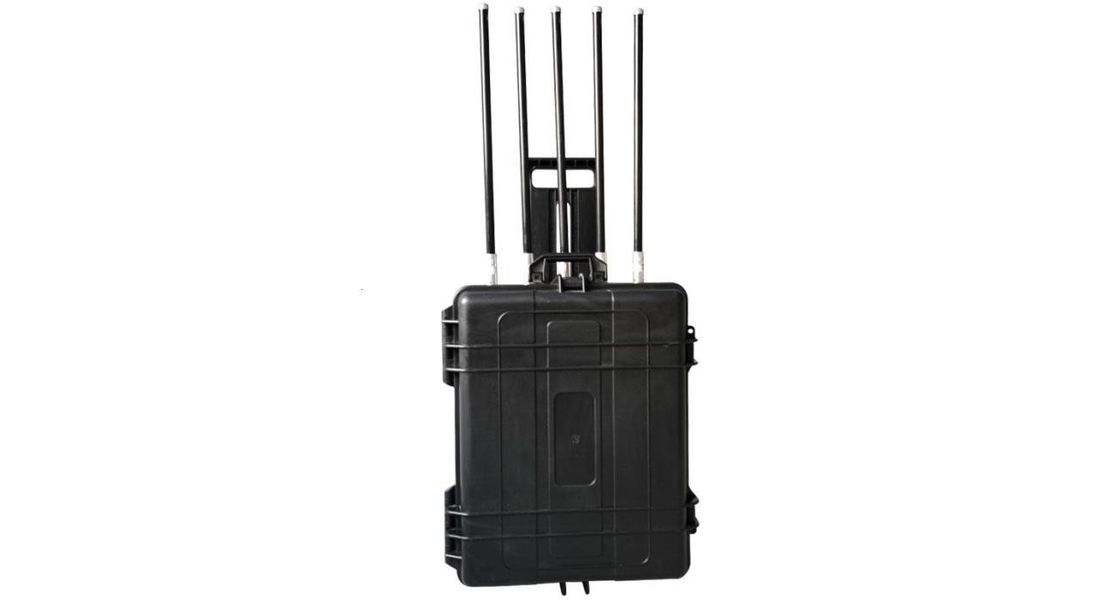

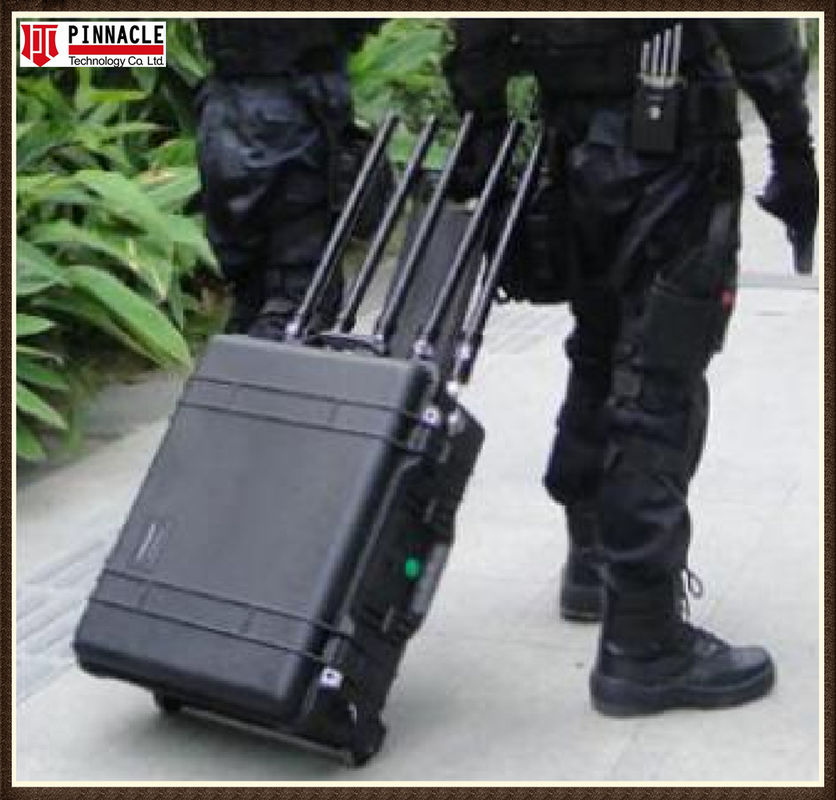

Product Pictures:
