RF DDS Cell Phone Scrambler Device Signal Blockers 5G 4G 3G CDMA GSM WIFI

RF DDS phone scrambler device

3G CDMA phone scrambler device

RF DDS cell phone signal blockers

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

Request A Quote

Product Details

Part Number:

PTC-P8

Jamming Frequencies:

2g/3G/4G/5g/WiFi

Jamming Distance:

10-100meters

Antenna:

High Gain Omni Antennas

LAN:

Adjust Each Band Power/Monitoring Jammer Failures

Handheld LCD Controller:

Adjust Each Band Power And Turn On/off Jammer

Highlight:

RF DDS phone scrambler device

3G CDMA phone scrambler device

RF DDS cell phone signal blockers

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Packaging Details

Carton

Delivery Time

10-20days

Payment Terms

T/T, Western Union

Supply Ability

50000

Custom Portable Cellular Phone Blocker EOD Bomb Signal Scrambler Device

Get Best Price

Video

Improvised Explosive Devices RCIED Jammer Phone Signal Blockers For Vehicle

Get Best Price

Video

800W High Power Cell Phone Scrambler Jammer Scrambler Pelican Case

Get Best Price

Video

6 Antenna Cell Phone Blocker Device Pelican Wifi Blocker Moistureproof 350W

Get Best Price

86-755-86239323

Contact Now

Product Description

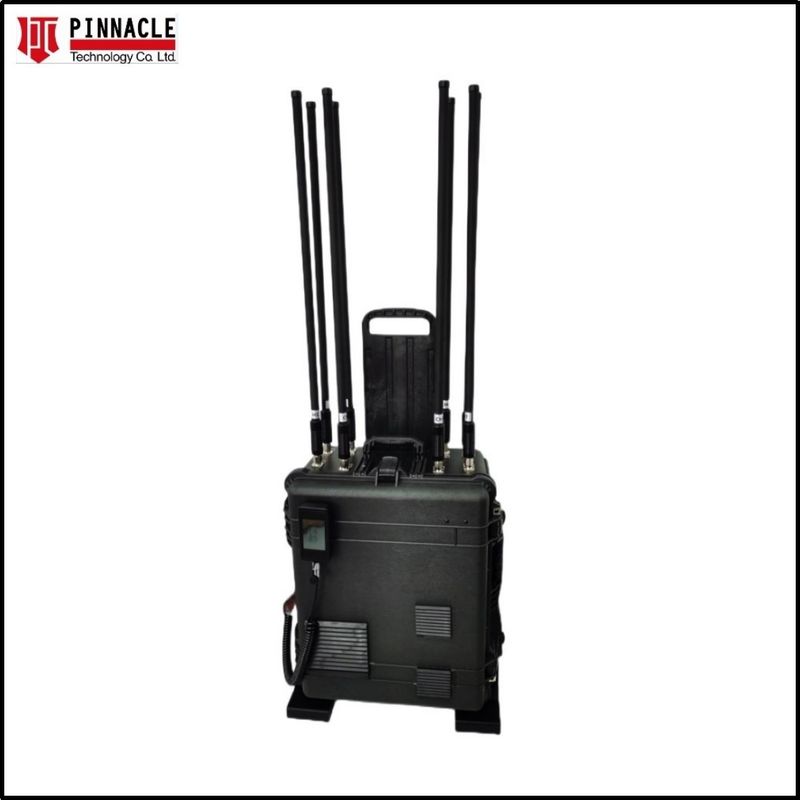

This Jamming system including 1 units Portable Pelican Jammer, which designed for blocking the mobile phone signals and also WIFI 2.4G and 5.8G signals.

The Jamming systems used state-of-art BTS Technology for maximum performance and jamming the signals transmits to activate bombs.

Jamming radius of this system depends on several conditions such as transmitter frequency and output power, distance to receiver, and obstacles between, etc.

Because of the variety of jamming targets and a wide range of uncertainties, we have adopted the more advanced and effective jamming signal modulation method, which will increase the jamming efficiency in each band.

Product Technical Parameter:

Channel	Working Frequencies	Output Power(±3dBm)
CH1	869-894 MHz	70W
CH2	920-960 MHz	70W
CH3	1805-1880 MHz	70W
CH4	2100-2170MHz	70W
CH5	2300-2400MHz	70W
CH6	2400-2500 MHz	70W
CH7	2500-2690MHz	70W
CH8	5150-5850MHz	20W

Total working bands	8bands
Each band power	20/70W
Total output power	510W
Power Supply	AC-110-240V, DC-48V
Channel Width Adjustable	Each channel frequency width can be adjusted by software
Jamming Range	about 10-100meters@-80dBm, depend on local signal strength
Antennas	1set/8pcs high gain Omni antennas (with case)
	1set/1pcs 17dBi high gain directional antenna
	1pcs Tripod Pole for directional antenna mounting
Ethernet Software control	Adjust the power and monitor the failure alarms.
Wired remote control	to Turn on/off Jammer and adjust the power
Software Control interface	RJ45
Dimension	430220630mm(LxWxD)
N.W	35kgs (no cover antennas and packing)
Jamming target	2G&3G&4G&5G mobile phone signals, WIFI 2.4G&5.8G
Sweep rate	Fixed
Stand alone module design
Power Amplifier Protectors: A. Over- Heat protection –Thermal protector B. Over current protection C. High input Voltage and low Voltage protection D. VSWR protection: against antenna miss-match including open and short circuit Cooling: Heat sink and air forced fans
Consumption Power:1600W
Storage temperature: -10℃ ~+50℃ Humidity:5%~90%
Operating Temperature: -20℃ ~+60℃
