Backpack RCIED Bomb DDS Mobile Phone Signal Jammer 10 Bands

Brand Name: PTC
Model Number: UAV-MP10
Place of Origin: Shenzhen China
Certification: ISO 9000
MOQ: 1set
Price: Contact Us
Supply Ability: 50000
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Standard Packaging: Carton
Product Details
Highlight:

Backpack Mobile Phone Signal Jammer

,

RCIED Bomb Mobile Phone Signal Jammer

,

RCIED Bomb dds jammer
Part Number: PTC-MP10
Working Channel: 10CH
Output Power: 170W
Jamming Frequencies: 20-6000mhz Selectable
Power Control: Power Adjustable By Handheld Controller
Working Model: 1-key Start Working
Product Description
Detailed Specifications & Features
Product Details:


Technical Specification:





Frequency Band

Channel RF

Output Power (Watt)



Jamming Target



130-180MHZ

 20W



RC, CB, FM, VHF



420-480MHZ

 20W



TRS, FRS, UHF

 750-803MHZ

 20W

4G-700

850-894MHZ

 20W

Mobile: 800mhz

1805-1990MHZ

 20W

Mobile: 1800,1900

2110-2170MHZ

 15W

3G-2100



2500-2690MHz

 15W



4G-2600



3300-3800MHz

15W

5G Frequency

2400-2500MHz 15W WIFI F-2.4G

5150-5850MHZ

15W

WI-FI -5.8G

Total Transmission Power

170W

Output power tolerance

± 2 dB over frequency



± 2 dB over temperature

Heat Management

Forced cooling

Battery Type

1x standard rechargeable Lithium-ion battery

Battery Operating Time

40minutes without battery change-out

Low Battery Indicator

 Yes

Remote Control Unit (RCU)

Wired RCU functions: ON/OFF, Status LED

Program Software

Adjust power and failure alarms

Antenna Interfaces

 4

Enclosure Material

Machined aluminum

Operating Temperature

-10  C to +50  C

Humidity

95% non-condensing

Weight (Kg)

About 20Kgs including batteries, antennas, RCU





Battery:

Battery type: Built-in Lithium Iron Battery Battery capacity for each Case: 24V-40A Battery working time: 1 hour

Low battery warning: available

Remaining Battery Indication Interface: available





Physical Data:

NW

 20KGS
Dimension 430x320x120mm

Environment of operation:

Operating Temperature:

-10ºC - +55ºC

Humidity:

5% - 90%

Proof Level

IP54



Applications:

v  Convoy protection VIP Protection

v RIOT Control

v S.W.A.T Team EOD Operations

v Electronic countermeasure, etc





Product Image:

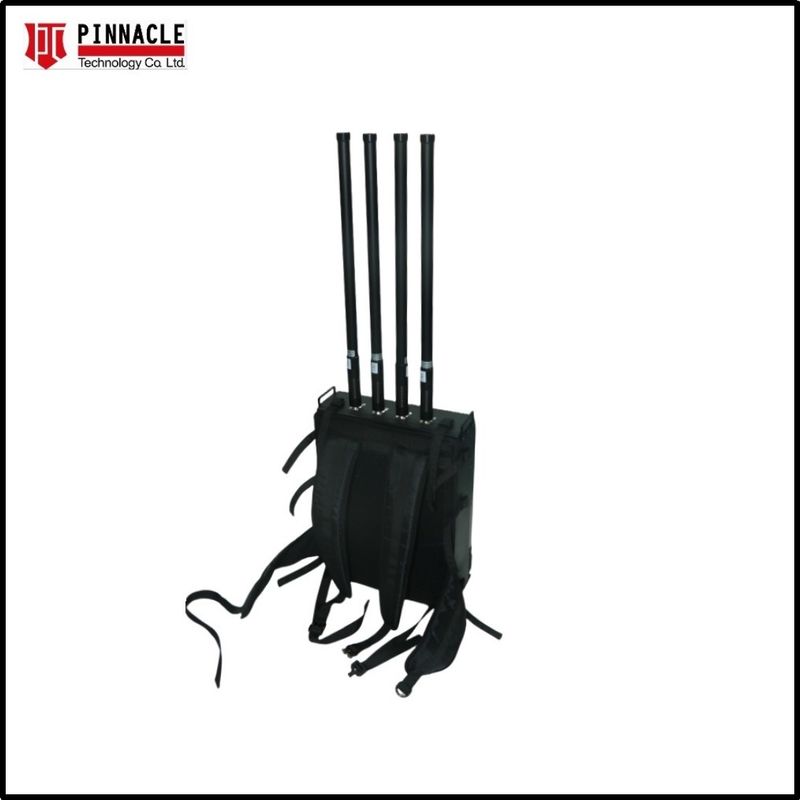

Backpack RCIED Bomb DDS Mobile Phone Signal Jammer 10 Bands 0
