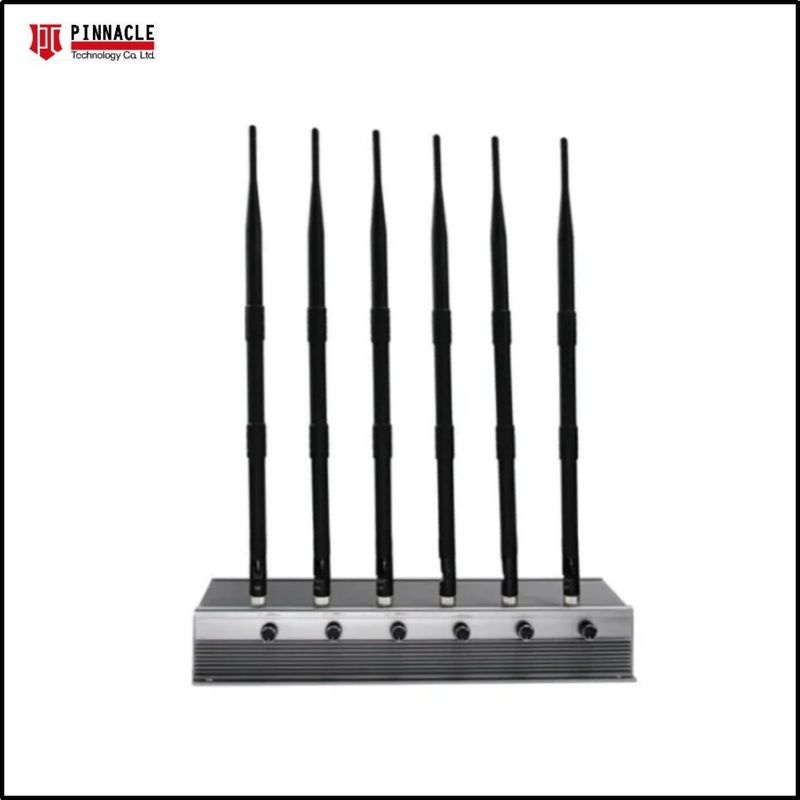

6 Antennas Desktop Mobile Phone Signal Jammer Device Power Controllable 315 MHz
Mobile Phone desktop jammer
,Power Controllable desktop jammer
,315 MHz phone jamming device
Product Information
The high power desktop Mobile phone Signal Jammer 6 Antennas Adjustable 3G 4G Phone signal Blocker with 2.4G GPS,It also is a good quality multi-functional LOJACK UHF VHF WIFI5G and Remote control 433 315 MHz signal jammer ,Adjustable and built-in smart cooling fan to support non-stop working.
Part Number: PTC-D6
Jamming Frequencies: 6 bands for option
Output Power:Total 60W
Jamming Range:2-60meters
Power Supply:AC110-240V to DC12V

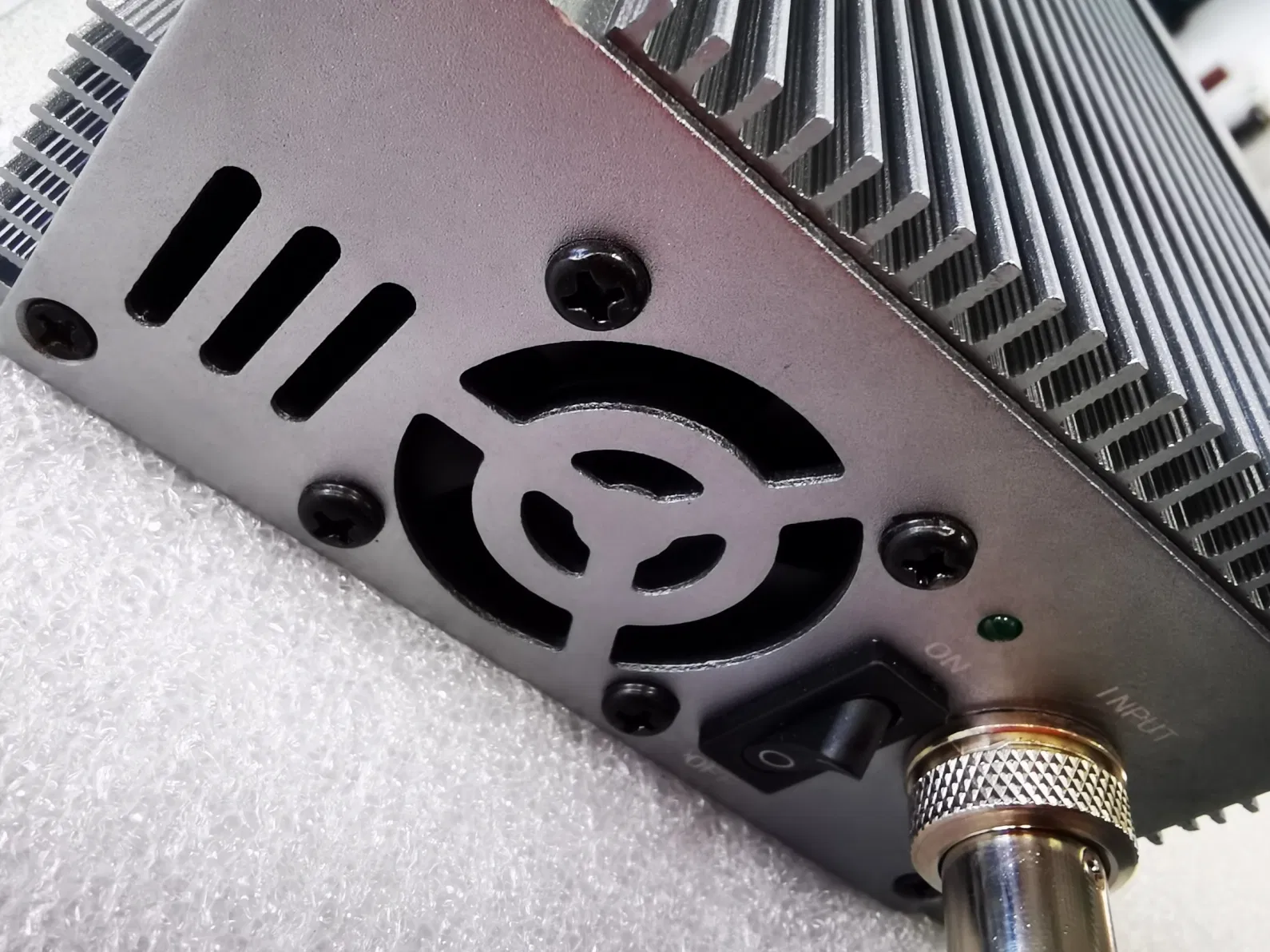

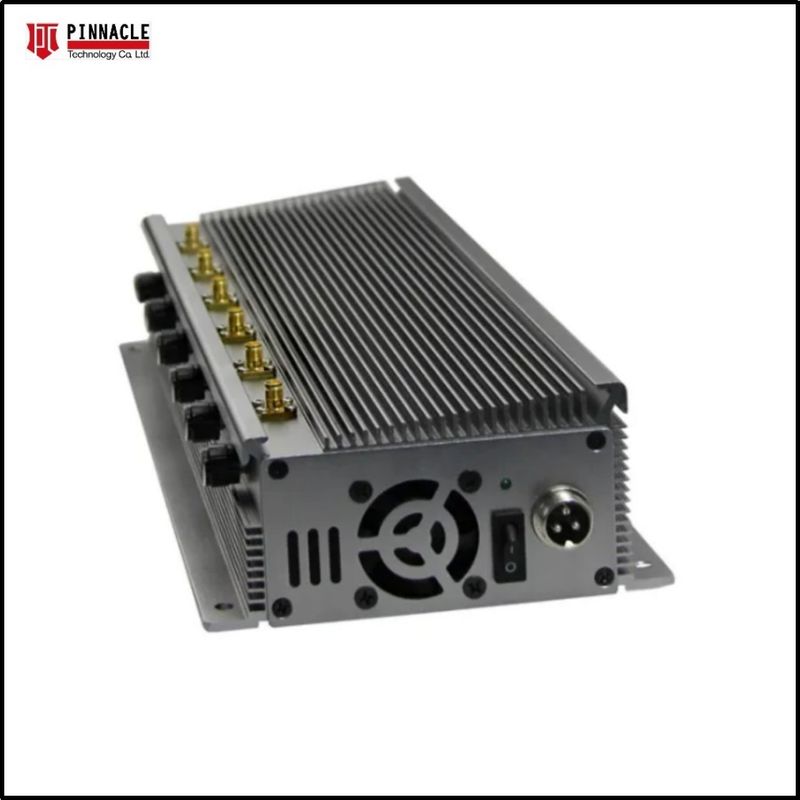

Cooling System:High efficiency aluminum alloy radiator, Build-in 2
cooling fans
Working Time: Non-stop
External battery for option: more than 1.0+ hours
Product Size:350x160x60mm(not Include Antenna)
Length of antenna :380mm Gain:5.0dbi
Product Weight: appr.4kg (N.W)

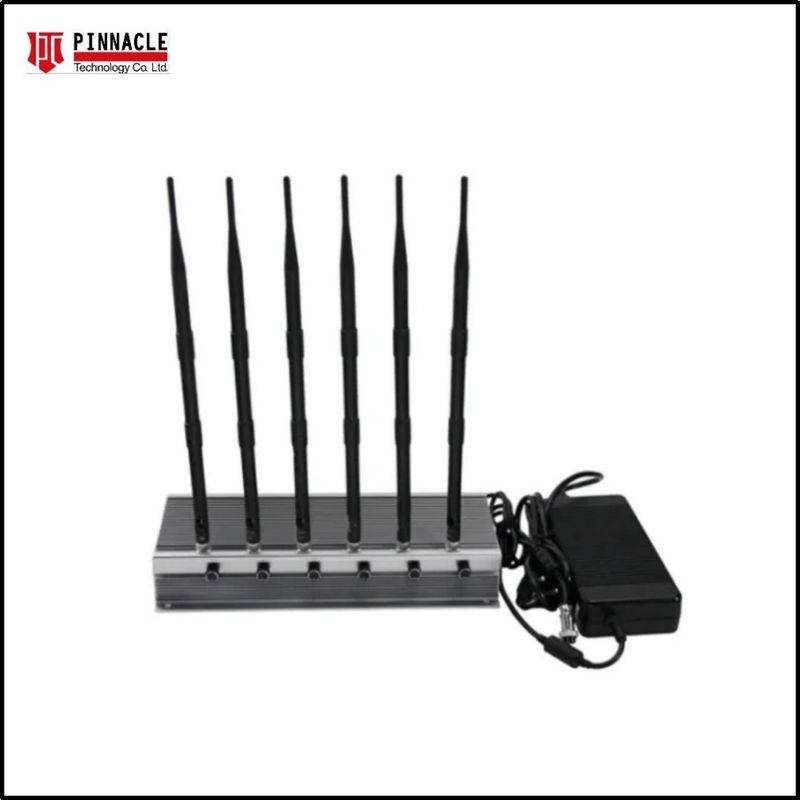

Package Contents:Jammer Host x 1, AC adaptor x1,antenna x6
Power supply: AC-110~240V, DC-24V

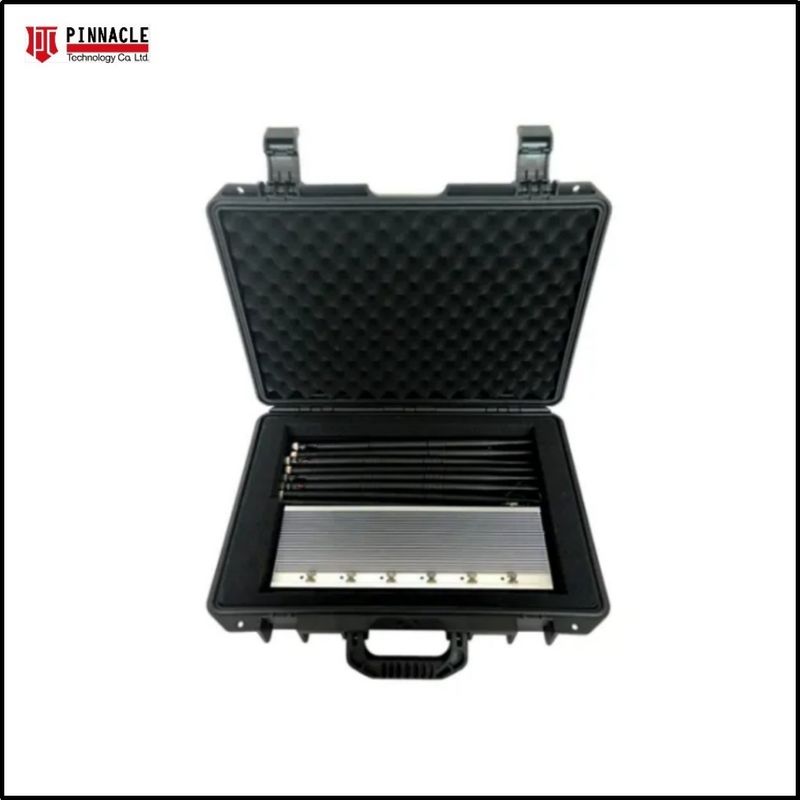

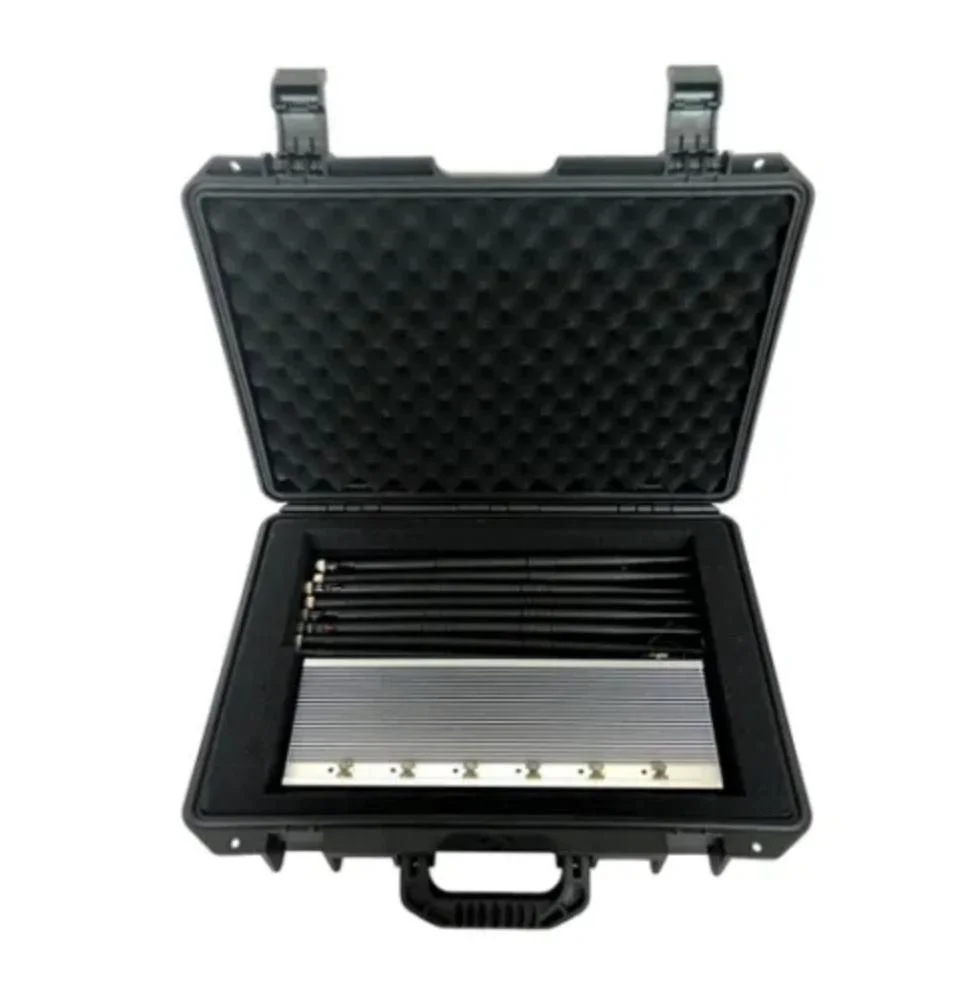

Portable carry box for option
Specification of desktop PTC-D6
|
PTC-D6-4G ( 6 Bands) |
PTC-D6-MX Mexico ( 6 Bands) |
PTC-D6-E4G ( 6 Bands) |
PTC-D6-E5G ( 6 Bands) |
|
850-895MHz: 10W CDMA |
850-895MHz: 10W CDMA |
920-965MHz: 10W GSM 900 |
920-965MHz: 10W GSM 900 |
|
1800-1990MHz: 10W PHS, DCS |
1920-1990MHz: 10W PHS, DCS |
1800-1880MHz: 10W DCS |
1800-1880MHz: 10W DCS |
|
2100-2170MHz: 10W 3G, UMTS |
2100-2170MHz: 10W 3G, UMTS |
2100-2170MHz: 10W 3G, UMTS |
2100-2170MHz: 10W 3G, UMTS |
|
WiFi 2345-2480MHz:8W 11.b, g |
WiFi 2400-2480MHz:8W 11.b, g |
WiFi 2400-2480MHz:8W 11.b, g |
WiFi 2400-2480MHz:8W 11.b, g |
| 4G LTE USA i-Phone 700-800MHz: 10W |
1700-1800MHz: 10W 4G |
790-830MHz: 10W 4G Low |
790-830MHz: 10W 4G Low |
| 4G WiMAX USA Sprint 2500-2700MHz:8 W | GPS: L1 1575.42Mhz: 10W |
2570-2690MHz: 8W 4G High |
2570-2690MHz: 8W 4G High |
| Total: 56 W | Total: 58 W | Total: 56 W | Total: 60 W |
|
Option: Remote/Alarm Control 315MHz, 433MHz, 868MHz, GPS L2 L3 L4 L5,, LoJack 173MHz SAT Sattellite Phones 1520-1670MHz, 11.a WiFi 5.1-5.5GHz, 5.5-5.9GHz, 3.5-3.7GHz |
|||
| Adjustable Output Power/LED each Band/Channel, Max Output Power to 0 (OFF) | |||
| Power supply: | AC100-240V or DC 24V | ||
| Jamming Range | Radius 20~60 meters (-85dBm@Omnidirectional antennas) | ||
| All Frequency can mix very Flexible | Each module/Band is independent | ||
| Weight | 4.0Kg | ||
| Dimension: | 350*160*60mm | ||
| Working time: | Without the time limit, May continue to work, | ||
| Antenna | 380 mm Long | ||
| Warranty: | 1 year | ||
New module 6 chancel design, Customized for special frequency band
High output power, Total up to: 80W Max, jamming up to 50m (Still depends on the strength signal in given area.)
Support 6PCS High Gain external Omni l antennas all the TX frequencies covered down link only
Built-in smart cooling system inside three fans, Working non-stopped
Can adjust or turn off any single band without influencing the other bands operation
