Portable Handheld Dji Uav Drone Signal Detector with Remote Control Positioning 1-3kmr

Place of Origin:

CHINA

Brand Name:

PTC

Model Number:

D35

Request A Quote

Portable Handheld Dji Uav Drone Signal Detector with Remote Control Positioning 1-3kmr

Product Details

Detection Range:

2.4&5.2g&5.8G

Detection Distance:

1-3km

Locate Positioning:

1-3km

Numer Of Detection:

>3 (Simultaneous)

Dimension:

260mm*160mm*40mm

Weight:

1.5KGS

Screen Size:

7 Inches

Battery Capacity:

10000mAh

Positioning:

For Drones And Pilot

Payment & Shipping Terms

Minimum Order Quantity

Price

4588-4888

Packaging Details

Carton Packing

Delivery Time

5-8days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Supply Ability

1000000/Y

Handheld Drone Detection up to 3km

Get Best Price

Video

Handheld Drone Detection FPV Detection

Get Best Price

Video

Handheld Drone Detector and Location 100-6000MHz Dji Fpv Autel 1-2km Signal Detector

Get Best Price

Video

Handheld Dji FPV Autel Drone Signal Detector with Drone and Controller Locate Positioning up to 3km

Get Best Price

86-755-86239323

Contact Now

Product Description

PTC-DT35 is a NEW Design handheld Drone Detector with strong locate positioning of UAV and Controller, adopted Passive detection technology and integrated UAV Spectrum Detection, Protocol Analysis, RID Identification and other regulatory functions. The detection range may up to 3km.

With compact design, easy to carry and long endurance, the product can be applied to low-altitude security operations in scenes such as security of major events, security guard missions, security patrols, special counter-terrorism, political core areas, border guards, airports, power and petrochemical parks, and so on.

Drone Detector Specification Parameters:

#	Item	Technical Parameters
1	Operating mode	Passive detection
2	Drone models supported	DJI series drones,FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello drones etc.
3	Working frequency	2.4G & 5.8g
4	Detection range	1 ~ 3km (urban environment)
5	Locate Positioning	1~2km
6	Battery Lifte	3~4hr
7	Battery Capactity	7.4V/10000mAh
8	Detect models	700+ drone models
8	Operating Temperature	-25~40ºC
9	Storage Temperature	-35~40ºC
10	Operating System	Android and Linus
11	Support	4G/5G function, support GNSS global positioning
12	Net Weight	1kgs
13	Dimension	26016040mm
14	Operating Lauguages	English, Spanish, Russian, Chinese
	Mechnical Technical Parameters
1	LCD Dimension	7 inch
2	Screen resolution	1920*1200
3	Multi-touch screen
4	Rear 1200W high-sensitivity camera module

Drone positioning: Locates the drones and shows the results as icons of drones on the e-map.
Pilot positioning: Locates the remote controllers (pilots), and shows the results as icons of the remote controllers on the e-map.
Vast drone data library:Identifies over 700 types of drones, including DJI, AUTEL, FPVs and DIY drones.
Pilot navigation: DT35 plans the route for tracking drone controllers with easy operation.
RID detection: It is able to identify DJI drones (with OcuSync protocol), drones with RID, and the unique serial number (SN) of WIFI drones.
Comprehensive information:Realtime display of the drone model, coordinates, velocity, altitude, pilot coordinates and so on.
Black and white list: Once a white list is set, the alarm of DT35 will not be set off if the drone in white list is detected.
Early warning:The device will alarm by beeping or vibrating whe

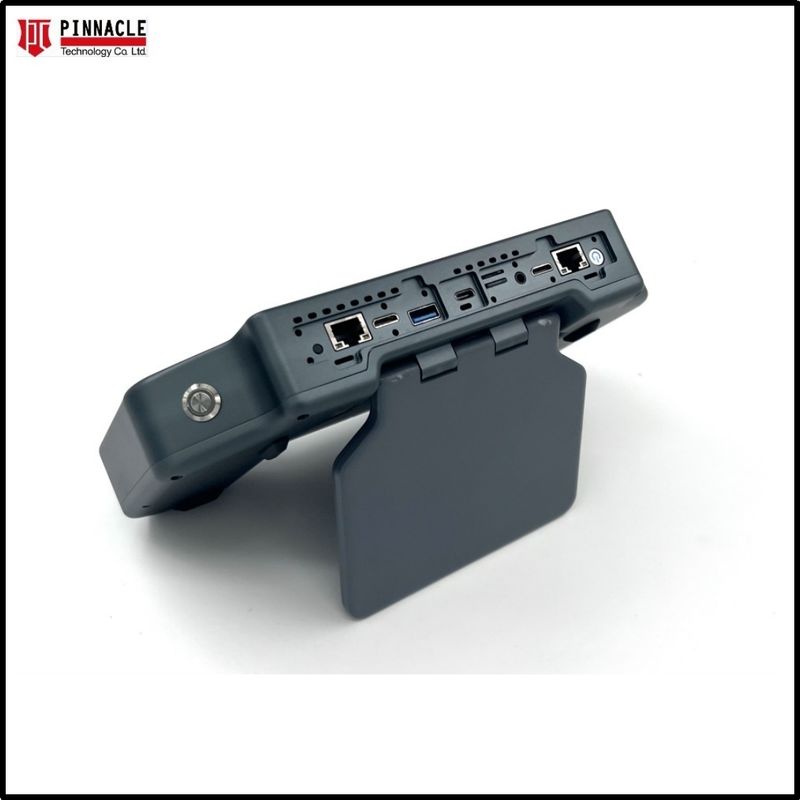

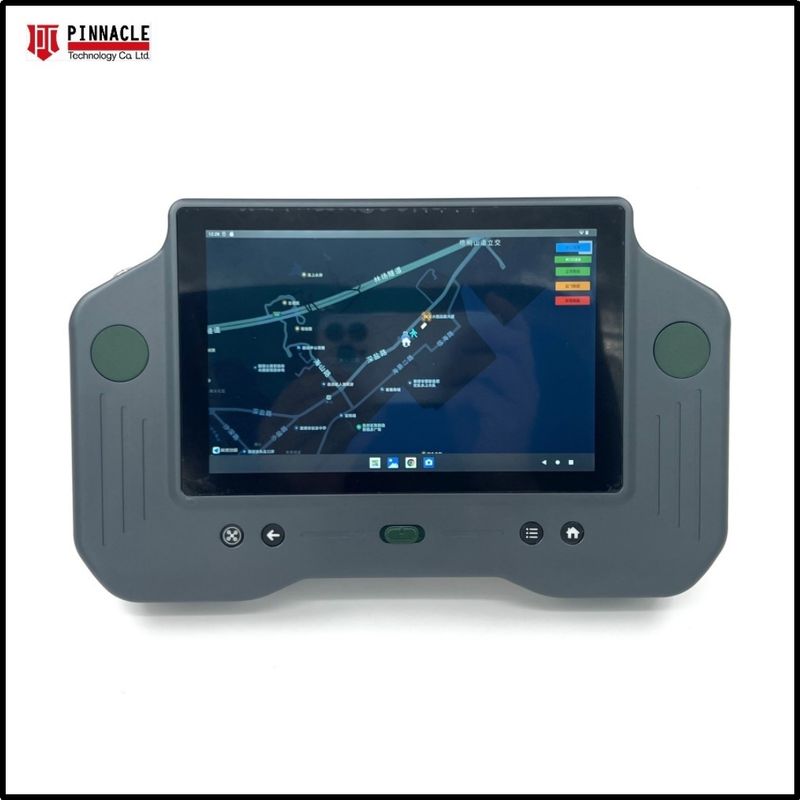

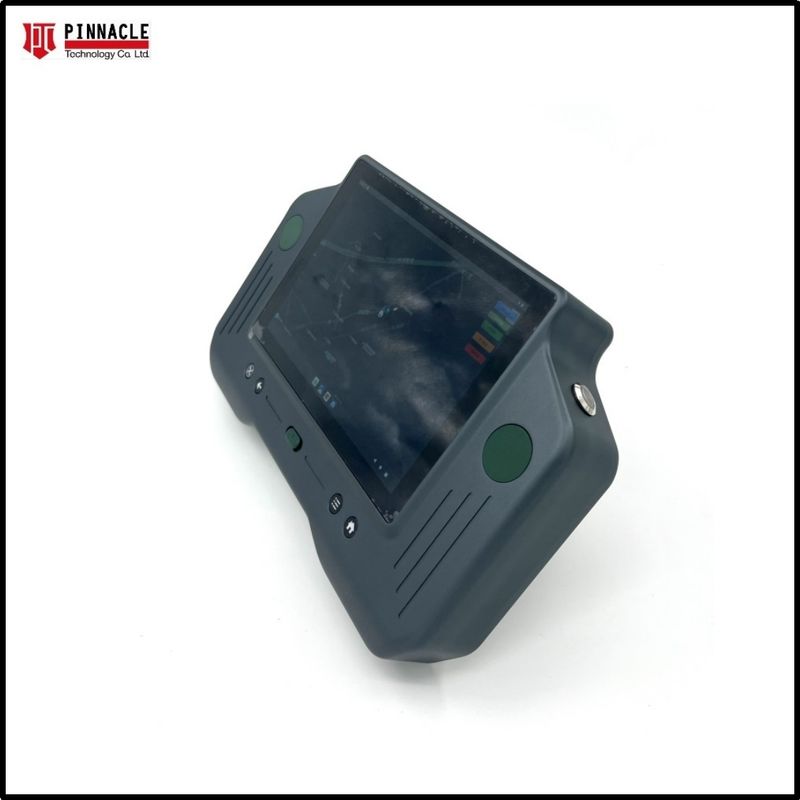

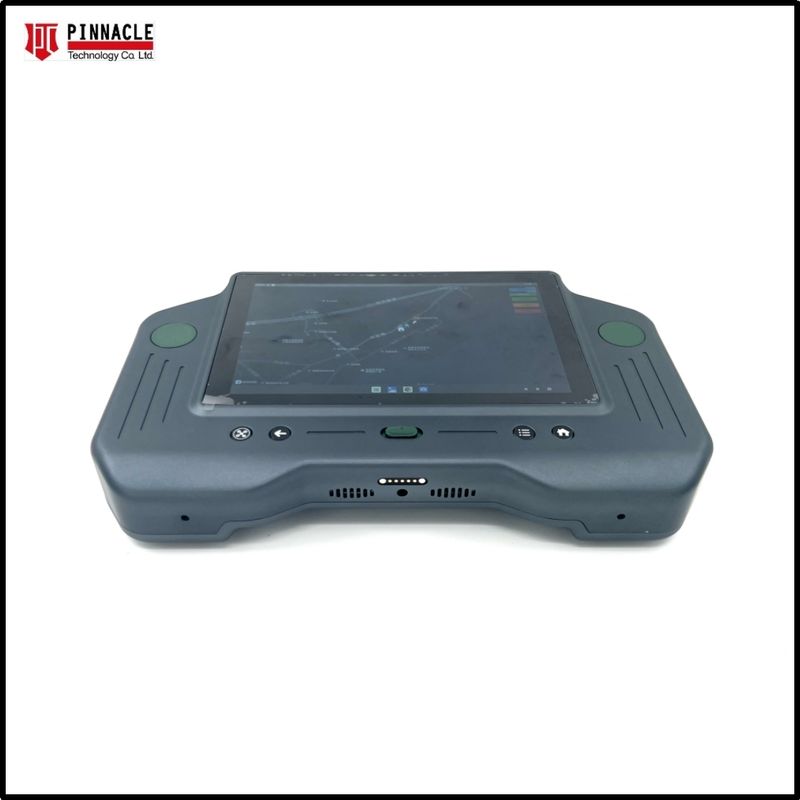

Product Pictures Details:

Portable Handheld Dji Uav Drone Signal Detector with Remote Control Positioning 1-3kmr 1
