400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module
Brand Name:
PTC
Model Number:
PTC-A4030-50W
Place of Origin:
Shenzhen China
Certification:
QS,CE
MOQ:
1pcs
Price:
Neg
Supply Ability:
50000/M
Delivery Time:
3-30days
Payment Terms:
Western Union, T/T, L/C, D/A, D/P
Standard Packaging:
Carton Packing
Product Details
Highlight:
400-3000MHz RF power amplifier module
,50W broadband RF amplifier
,wide band power amplifier module
Product Description
Detailed Specifications & Features

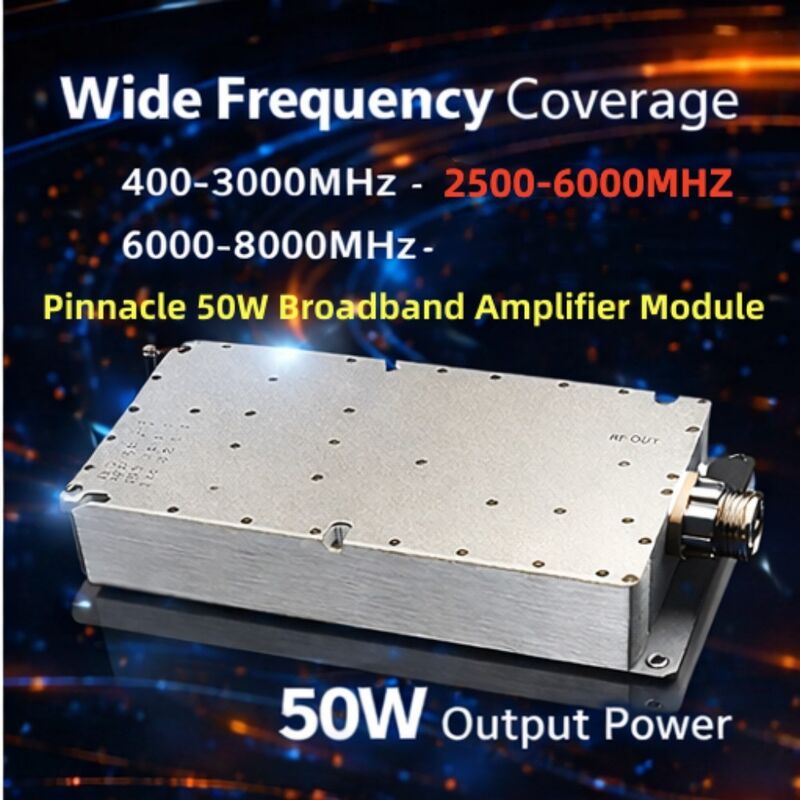

400-3000MHz Broadband Wide Band 50W RF Power Amplifier Module

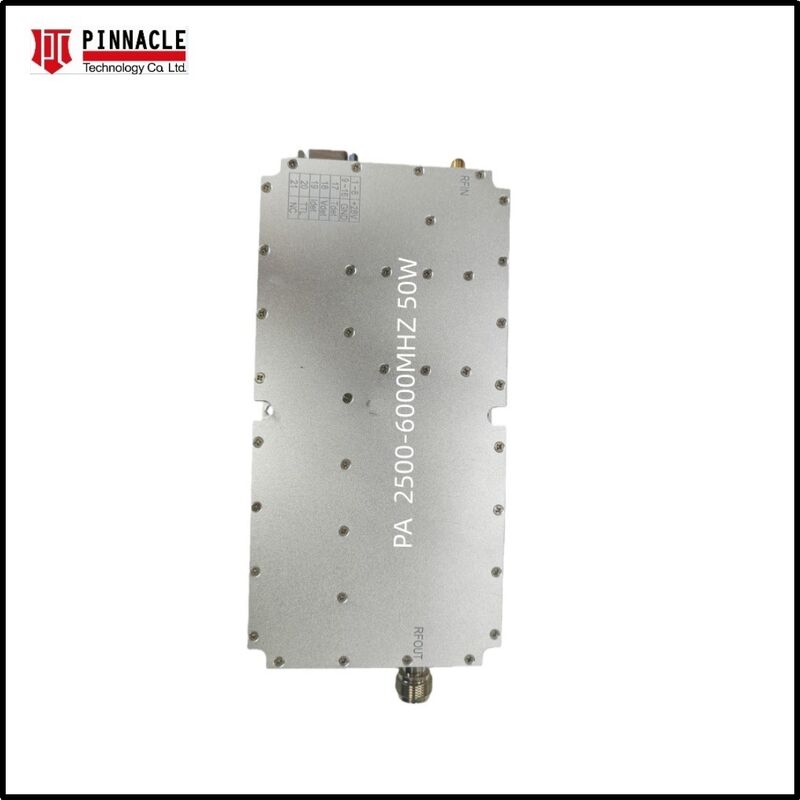

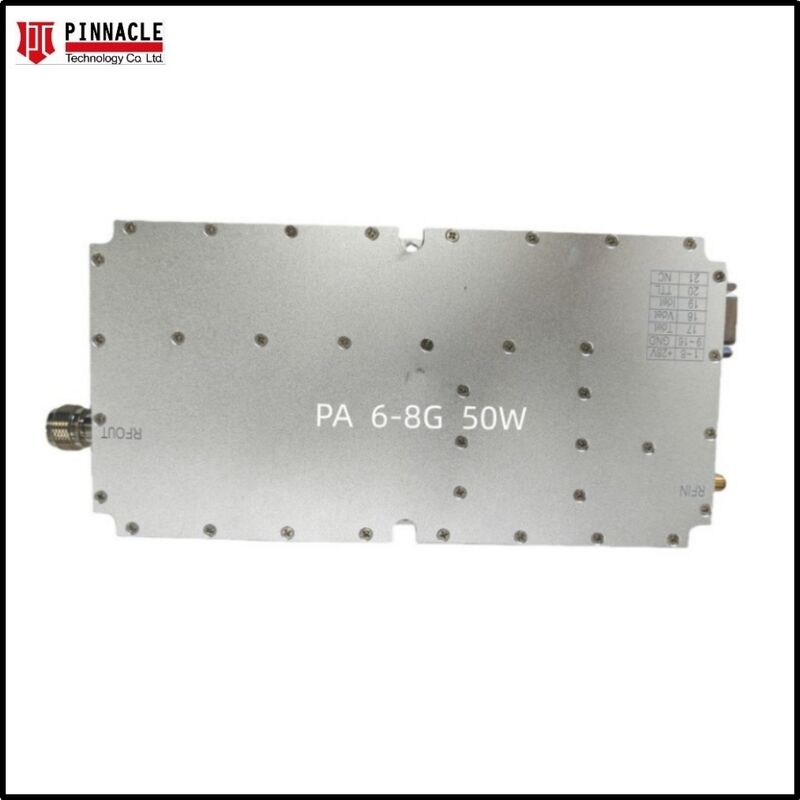

This 400-3000MHz RF Module 50W Power Amplifier is a no signal source power amplifier module delivering 50W output power. Available in multiple frequency ranges including 400-3000MHz, 2500-6000MHz, and 6000-8000MHz RF PA configurations.
Key Features
Ultra-Wideband Performance
Seamless coverage from 400MHz to 3000MHz, eliminating the need for multiple narrow-band amplifiers.
Advanced GaN Technology
Utilizes high-efficiency Gallium Nitride on Silicon Carbide (GaN-on-SiC) devices for superior power density and thermal management.
Built-in Protection
Includes integrated circuitry for over-temperature protection and VSWR (Voltage Standing Wave Ratio) protection to prevent damage from signal reflection.
Compact & Rugged Design
Housed in a precision-machined aluminum alloy chassis, designed to withstand harsh industrial and relative evironments.
Customization Options
Frequency range and output power can be customized according to specific requirements.
Applications
- Electronic Countermeasures (ECM): Ideal for signal jamming and broad-spectrum interference systems
- Test & Measurement: A reliable lab-grade power source for EMC testing and antenna measurements
- Communication Systems: High-power booster for 5G, Wi-Fi 6, and satellite ground stations
- Radar Systems: Pulse and CW (Continuous Wave) applications for modern radar detection
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 400-3000MHz |
| Output Power (P_sat) | ≥50W |
| Gain | ≥50dB |
| In-band Gain Flatness | ≤5.0dB |
| Working Current | ≤5.5A |
| Connector | SMA-Female |
| Power Supply & Control Interface | DB7W2 |
| VCC Power Supply & Maximum Voltage | +28V, +32V |
| Dimension | 180×90×25mm (Not including connectors) |
| Net Weight | 1kg |
| Power Supply Wire | Red+Black+Enable wire |
| Working Temperature | -40℃ to +55℃ |
