Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
UAV-UAV-S7

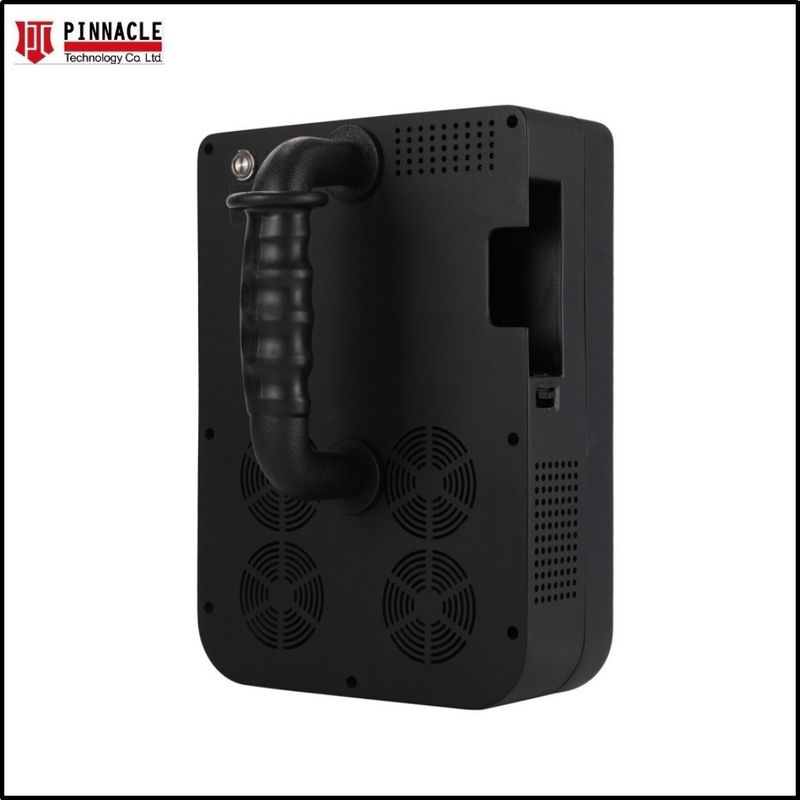

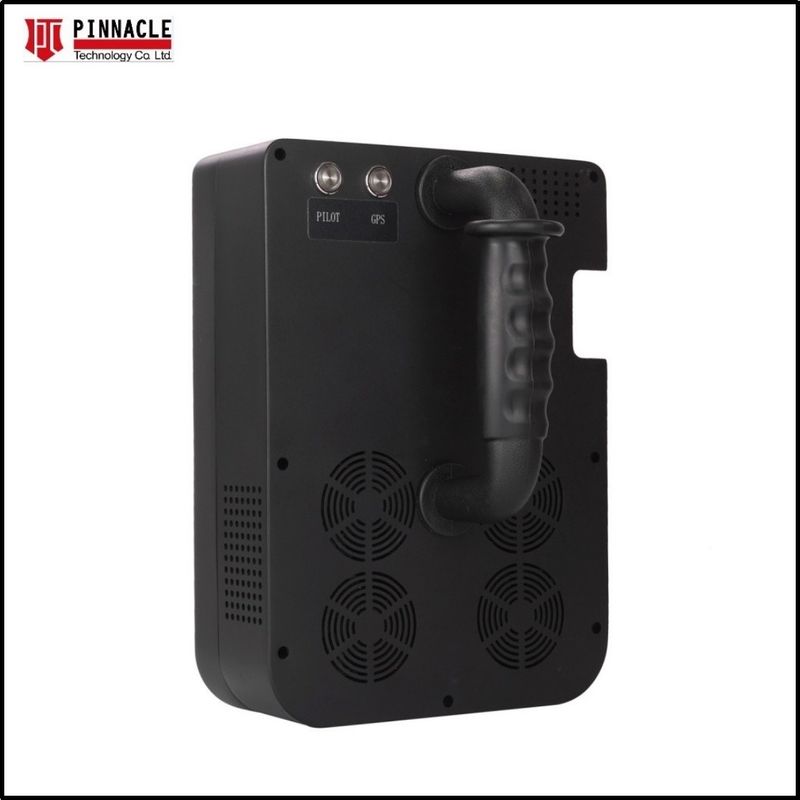

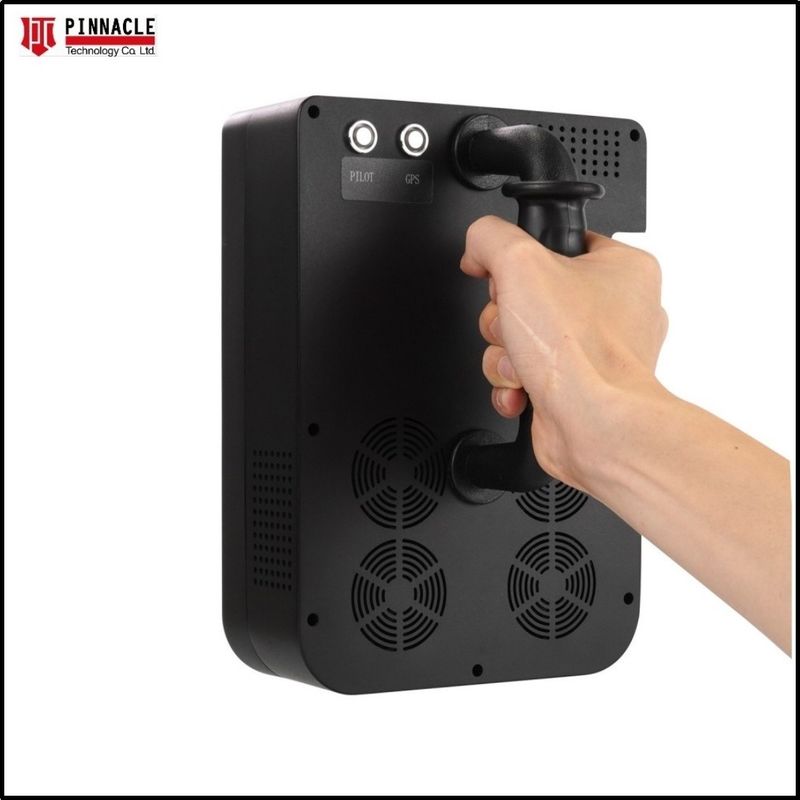

The Shield Type UAV/drone signal jammer PTC-UAV-S7 is our company specially designed drone Jamming product against the widespread use of commercial Drones / UAVs. It disables the targeted UAV / Drones by jamming the remote-control signal and GPS signal, so as to force the UAV to fall or return. The jamming distance reaches more than 1500 meters.
---Technical parameters-----
| Channel | Working Frequency | Channel Power(±1dBm) | |
| CH1 | 433 - 435MHz | 10W | |
| CH2 | 902-928MHz | 10W | |
| CH3 | 1160-1280MHz | 30W | |
| CH4 | 1550 - 1620MHz | 30W | |
| CH5 | 2400 - 2500MHz | 30W | |
| CH6 | 5725 - 5850MHz | 30W | |
| CH7 | 5725 - 5850MHz | 30W | |
| Total Working Channels | 7 channels | ||
| Total Working Output | 170W | ||
| Shielding distance | 300-2000m | ||
| Technology Solution for option | VCO, BTS, AI for option | ||
| Battery | 28V/5AH | ||
| Battery working time | 40 minutes | ||
| Built-in internal Antenna | High gain Directional antenna | ||
| Power consumption | 500W | ||
| Weight | 8.5Kg | ||
| Size(Length × width × height) | 320*220*108mm | ||
| Humidity | 5%-95% | ||
| Operation temperature | -20 to +50ºC | ||
1. Frequency band and output power are optional;
2. Integrate the main equipment, battery, and antenna to increase equipment mobility
3. Different frequency bands can be independently controlled by different switches;
4. Optional AC or DC power supply;
5. Power amplifier protection design ensures the reliability of equipment work;
6. Using imported chips, high integration, good stability, slow start circuit design;
7. The rechargeable battery can support the jammer to work for 30 minutes to 1 hour;
8. Batteries can be quickly replaced.
9. Light Weight and Friendly use
10.Effective segmentation to block each drone controlled signals.
11.Imported chips, slow start circuit design can avoid the sparking phenomenon caused by mechanical switch, high integration and
stable operation.
12.Perfect self-protection function, when the device is overheated, over output -power, standing wave and other fault alarms, the
drone signal jammer will automatically cut off the failed module to avoid damage to the drone shield.
