Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
UAV-UAV-F3
Product Details: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
Features and Advantages
1. Ultrahigh frequency board-band jamming technology
2. Easy to carry, Flashlight type, very light weight (1kgs), small size
3. With strong flashlight function, It can be used for lighting and jamming drones
4. Great concealment, It looks like a flashlight.
5. Available in three colors: black, camouflage and desert yellow for option.
6. Wide coverage of 3 Frequencies with high effective power
7. Long Battery working time: A single battery can support jammer works for 45 minutes, and flashlight lighting time up to 3 hours. More batteries to replace for option.
8. Jamming Range up to 300m.
9. Effective segmentation to block each drone controlled signals.
10. Waterproof design.
11. Imported chips, slow start circuit design can avoid the sparking phenomenon caused by mechanical switch, high integration and stable operation.
12. Perfect self-protection function, when the device is overheated, over output -power,
standing wave and other fault alarms, the drone signal jammer will automatically cut
off the failed module to avoid damage to the drone shield.
Technical Parameters
Flash Light Specification
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Amplifier Protectors:
A. Over- Heat protection – Thermal protector
B. Over current protection
C. High input Voltage and low Voltage protection
D. VSWR protection: against antenna miss-match including open and short circuit
Cooling: Heat sink and air forced fans
Physical Data:
Net Weight of Jammer Host: approx 1kg
Dimension: 66*66*280mm
Waterproof Level: IP65
Environment of operation:
Operating Temperature: -10ºC - +50ºC
Humidity: up to 85%
Battery:
Battery type: Lithium Battery
Battery quantity: 1pcs
Battery working time: >=30 min
Low battery warning: available
Battery fast change: available
Spare Battery: optional

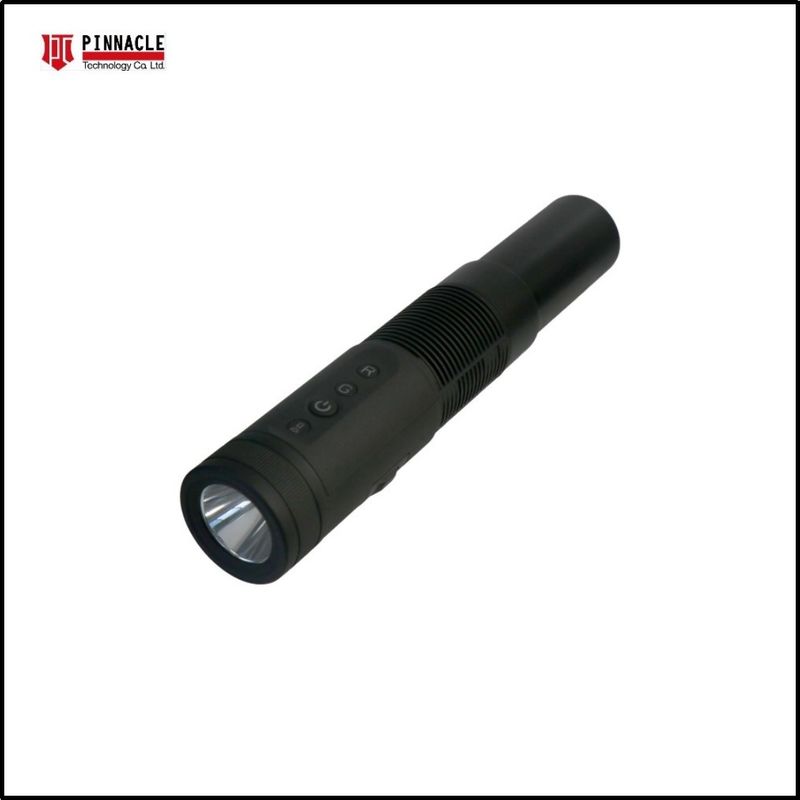

Product Detailed Pictures:
