433MHz 900MHz Backpack Anti Drone Jammer Signal With Internal Battery

433MHz 900MHz Backpack Anti Drone Jammer Signal With Internal Battery

433MHz Anti Drone Jammer

900MHz Anti Drone Jammer

433MHz backpack jammer

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

UAV-LB8

Contact Us
Request A Quote
Product Details
Model NO.:
PTC-UAV-LB8
Output Power:
200W
Frequency Range:
433MHz+900MHz+1.2g+1.5g+2.4G+5.8g
Jamming Distance:
50-1500meters
Built-in Battery:
1hour
Application:
Drone Jamming
Highlight:

433MHz Anti Drone Jammer

,

900MHz Anti Drone Jammer

,

433MHz backpack jammer

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
Contact Us
Packaging Details
Carton
Delivery Time
10-20days
Payment Terms
T/T, Western Union
Supply Ability
50000
Product Description
Product Description

This packpack UAV defense jamming system is specially designed for single Solider and VIP protection from drone spying, which mainly for cutting off most the commercial drones signals and without influence on surrounding signals such as those for mobile communication, communication base station, car remote control and so on. The jammer is configured with 8 frequencies signals (remote control signals+WIFI2.4G/5.8G +GPS ) to intercept drone's remote control signal.

Product Parameters



The Specification of PTC-UAV-LB8

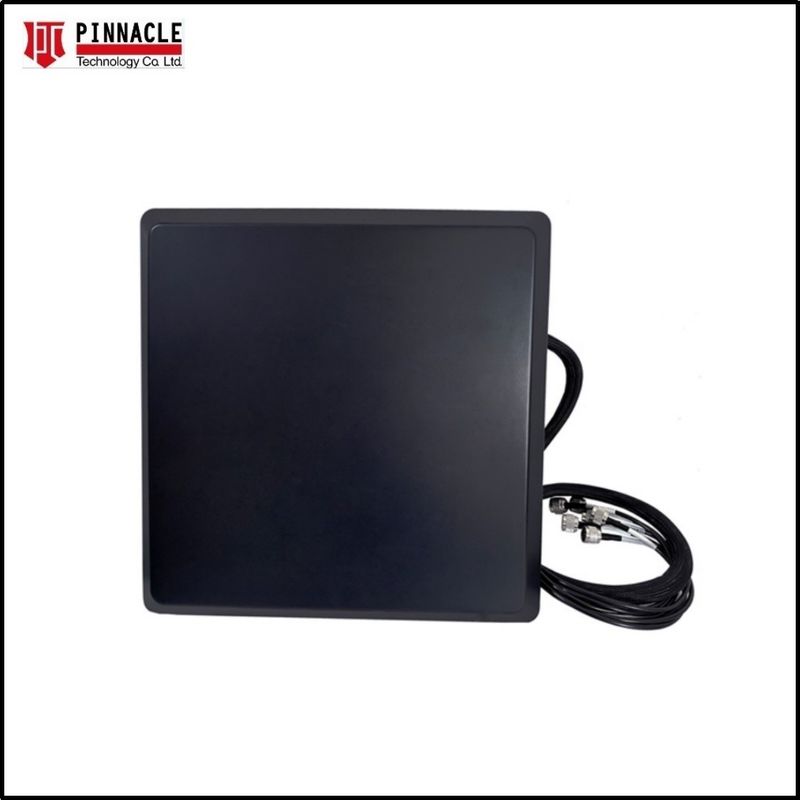

Eight Bands in One Directional Antenna




2.4-2.5GHz:25W
WiFi 11.g, b, Bluetooth (Vertical Polarization)
2.4-2.5GHz:25W
WiFi 11.g, b, Bluetooth (Horizontal Polarization)
GPS L1 + GLONASS L1 :30W
1570-1620MHz
5.7GHz-5.9GHz: 30.0W
WiFi 11.a
433MHz:40W Remote Control
860-930MHz:30W Remote Control
5100MHz-5350MHz: 30W WiFi 11.a
1200-1300MHz: 25W GPS L2 , FPV
  Total : 235 W
Two 2.4GHz Bands 25W per band ( 4 bands in 1 Directional Antenna, 4 bands in Omni Antenna)
Cover Most Commercial Drones / UAVs
Like Dji Phantom 4, Phantom 3 Professional, Advanced, Standard series, MAVIC Series...
100% Safe VSWR over protection (Isolator) for each modular
Each Band ON/OFF and Wired Remote Control with Battery Status LCD
Power supply: AC adapter (AC220V/110V-DC27V or 27V/18Amp)
Jamming Range: 500~1500 Meters
Battery Operating Time 1- 2 Hours (more option about battery working time)
Dimension:490 x 370 x 190 mm (H × W × D)
Weight:13 Kg (approximately) just main unit not included antenna & all accessories
Operating temperature:-20ºC~ +60ºC


Electrical Specifications

Frequency Range 1575-1620MHz 2400-2500MHz 5650-5920MHz 860-930MHz 1170-1280MHz 433MHz 5100-5400MHz

Gain 12dBi 14dBi 17dBi 8dBi 8dBi 5dBi 17dBi

VSWR ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5 ≤1.5

Polarization Vertical Vertical Vertical Vertical Vertical Vertical Vertical

Horizontal beamwidth 20±5 20±5 20±5 32±5 32±5 75±5 20±5

Vertical beamwidth 20±5 20±5 20±5 32±5 32±5 65±5 20±5

Front to back ratio ≥24dB ≥25dB ≥25dB ≥25dB ≥25dB ≥25dB ≥25dB

Input Impedance 50Ω 50Ω 50Ω 50Ω 50Ω 50Ω 50Ω

Max Input Power 50W 50W 50W 50W 50W 50W 50W
Double 2.4GHz 25W block much longer
Good Isolation each other (8 bands in)


Connector SMA-J

Lightning protection Direct Ground

Mechanical Specifications

Dimensions 390*390*50mm (only Antenna)

Weight 2.5kg

Radiator Material Alumina

Radome Material Black

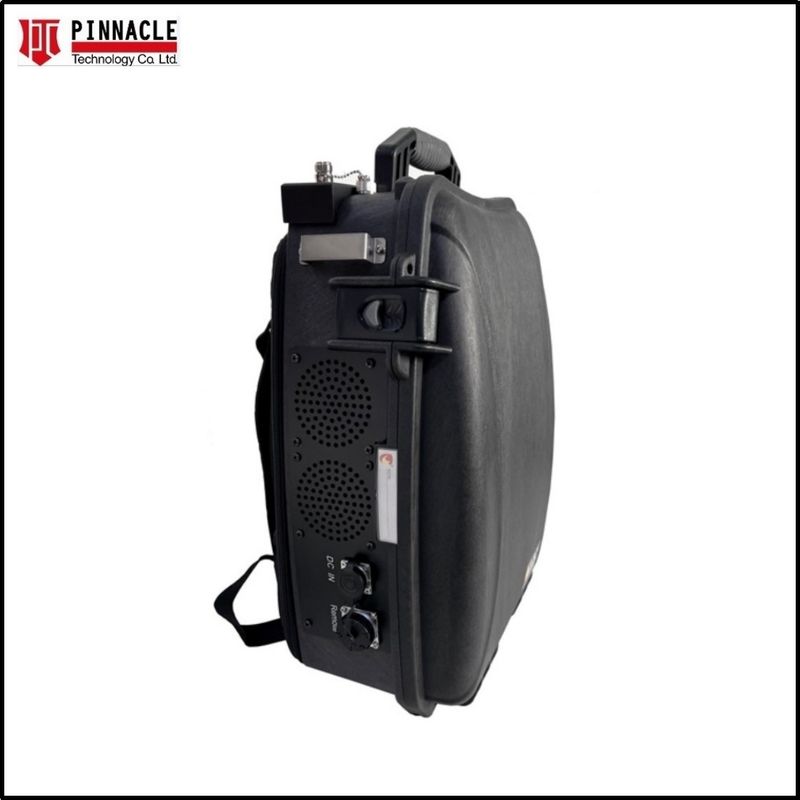

Detailed Photos
433MHz 900MHz Backpack Anti Drone Jammer Signal With Internal Battery 0
433MHz 900MHz Backpack Anti Drone Jammer Signal With Internal Battery 1



Product Advantages

Features and Advantages

  1. Ultrahigh frequency board-band jamming technology
  2. Wide coverage of 8 Frequencies with high effective power
  3. Long jamming Range up to 500m-1.5km.
  4. Light Weight and Friendly use
  5. Built-In 1-2hours battery operation and high gain Directional Antennas
  6. Effective segmentation to block each drone controlled signals.
  7. Imported chips, slow start circuit design can avoid the sparking phenomenon caused by  mechanical switch, high integration and stable operation. standing wave and other fault alarms, the drone signal jammer will automatically cut off the failed module to avoid damage to the drone shield.
  8. Perfect self-protection function, when the device is overheated, over output -power, the amplifier will be switch off automatically.
Operation Instructions
433MHz 900MHz Backpack Anti Drone Jammer Signal With Internal Battery 2
How to Use:

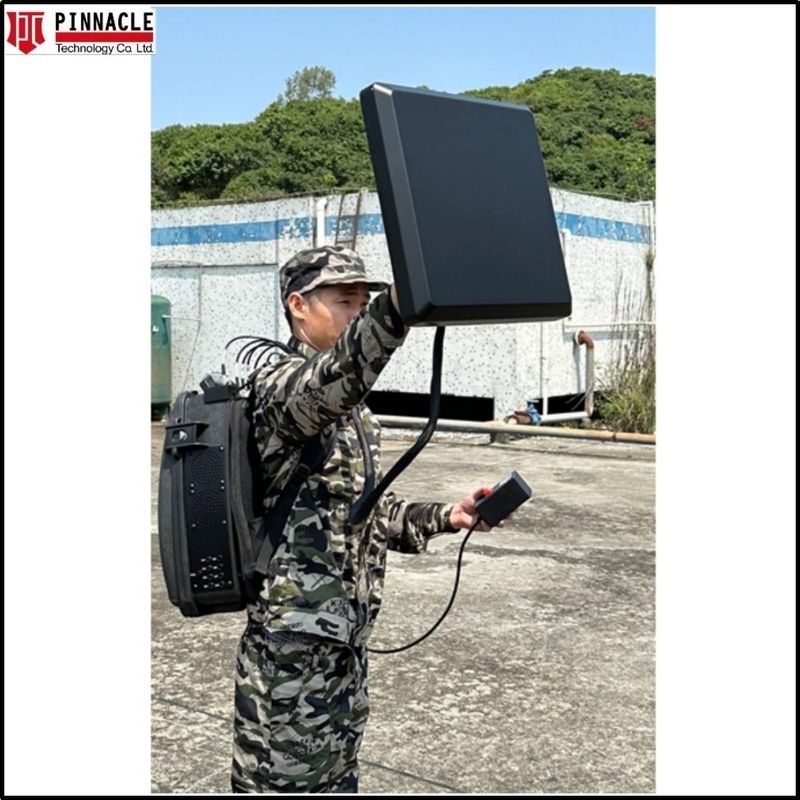

Put the Drone jammer to point at your target drone, using the gun-shaped antenna holder (with the antennas on it), it will cut off the signal between the controller and the drone. The drone will not be able to receive any control signals or transmit any camera signals back to the controller and drop down. The drone will be officially MIA (missing in action).

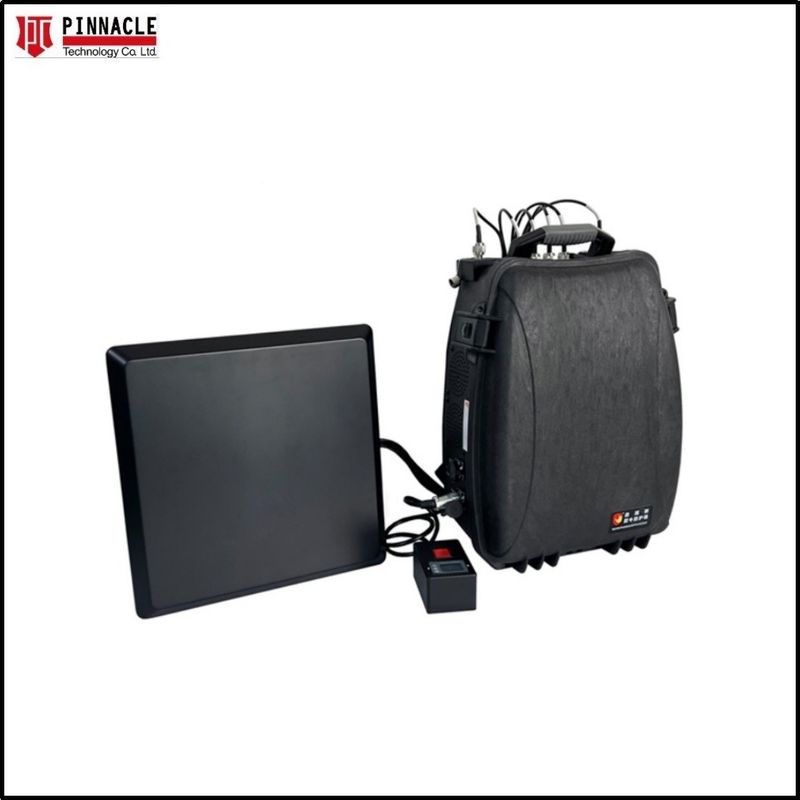

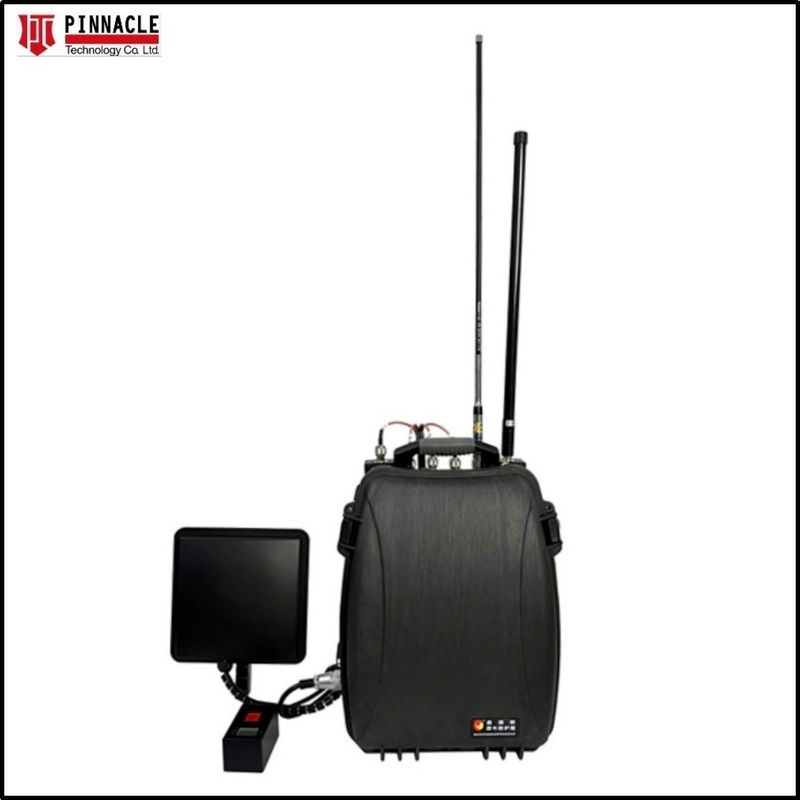

There are 2 Jamming Modes:
433MHz 900MHz Backpack Anti Drone Jammer Signal With Internal Battery 3
433MHz 900MHz Backpack Anti Drone Jammer Signal With Internal Battery 4

433MHz 900MHz Backpack Anti Drone Jammer Signal With Internal Battery 5
Applications:
Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Ar-my Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities
etc.
