Name: Anti UAS UAV Handheld Drone Detector For WiFi GPS Signal Detection
Brand: Pinnacle Technology Co., Limited
SKU: UAV-UAV-DT1
Price: 22,238.00 USD
Availability: InStock

Home > products > Drone Detector >

Anti UAS UAV Handheld Drone Detector For WiFi GPS Signal Detection

Anti UAS Handheld Drone Detector

GPS Handheld Drone Detector

Drone GPS Signal Detector

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

UAV-UAV-DT1

Request A Quote

Anti UAS UAV Handheld Drone Detector For WiFi GPS Signal Detection

Product Details

Part Number:

PTC-Uav-DT1

Channel:

2CH

Detection Frequencies:

2.4G+5.8g

Detection Distance:

50-300meters

Battery Working Time:

3hours

Work Mode:

Passive Detection

Detection Drone Model:

Mainstream, DIY, Fpv, Racing Drones Included

Highlight:

Anti UAS Handheld Drone Detector

GPS Handheld Drone Detector

Drone GPS Signal Detector

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Packaging Details

Carton

Delivery Time

10-20days

Payment Terms

T/T, Western Union

Supply Ability

50000

Handheld Drone Detection FPV Detection

Get Best Price

Video

Handheld Drone Detector and Location 100-6000MHz Dji Fpv Autel 1-2km Signal Detector

Get Best Price

Video

Handheld Dji FPV Autel Drone Signal Detector with Drone and Controller Locate Positioning up to 3km

Get Best Price

Video

Drone Counter-Measure Detector with Direction Finding and Location Positioning

Get Best Price

86-755-86239323

Contact Now

Product Description

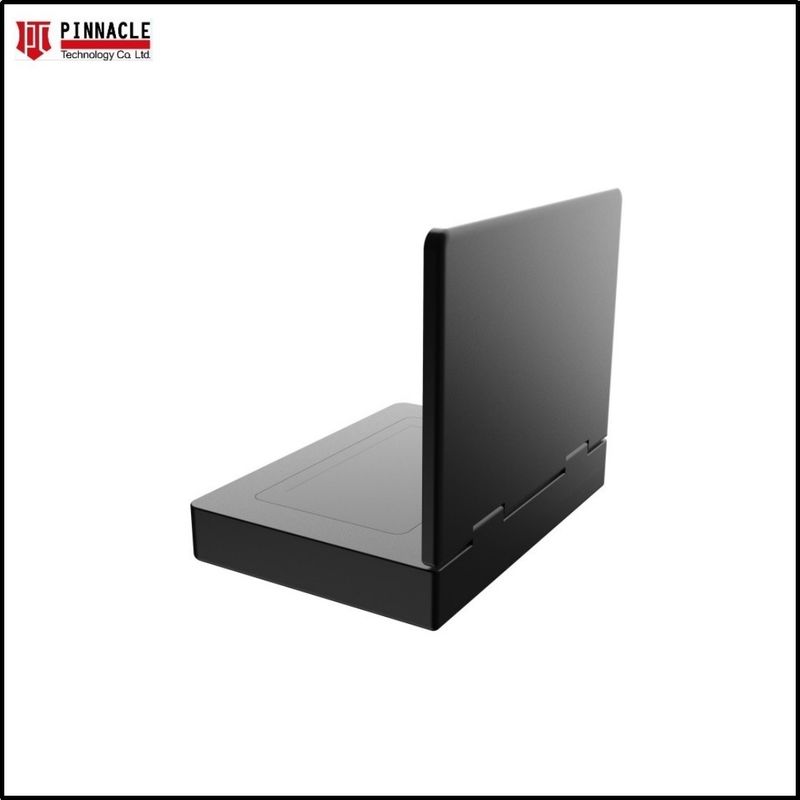

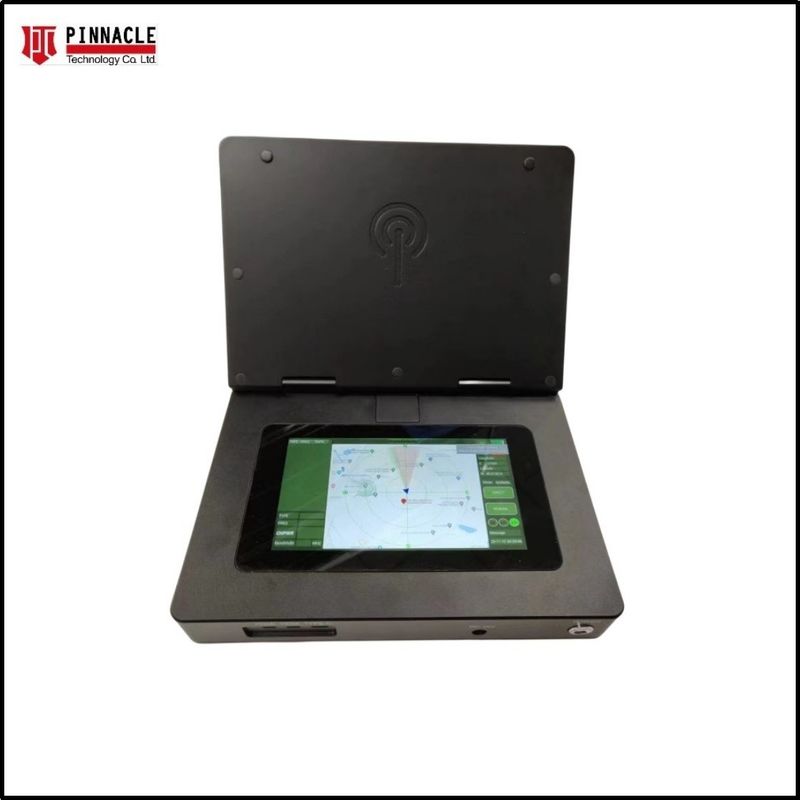

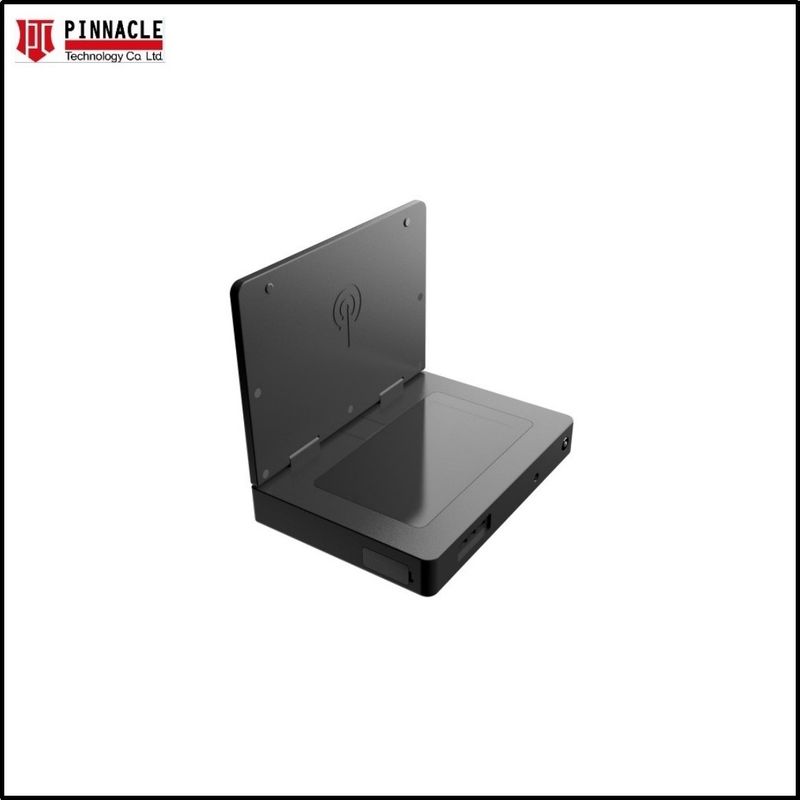

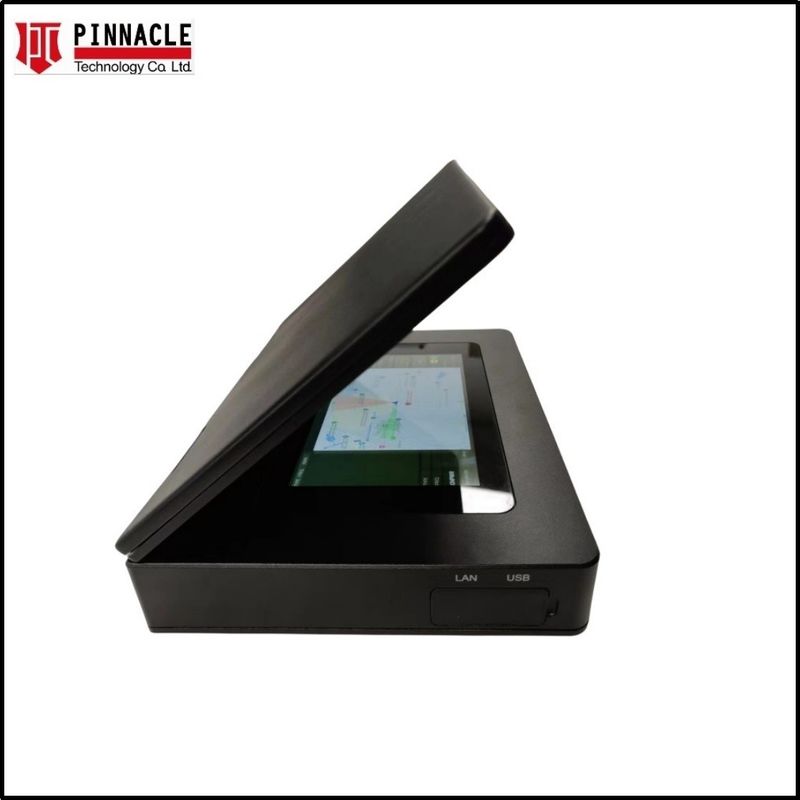

PTC-UAV-DT1 is a handheld device for detection, identification and direction finding of drones. It identifies drone flight control and image transmission signals based on spectrum sensing and artificial intelligence technologies. Its features include: direction finding for Drones; detection of drones with full frequency bands and various types; long detection distance and low false alarm rate; large color screen display with rich display content; small size, light weight, hand-held and It can cooperate with anti-interference guns or Drone Jammers, and is suitable for security tasks in major events, industrial parks, border and coastal defense and other places.

#	Item	Technical Parameters
1	Operating mode	Passive detection
2	Drone models supported	DJI series drones,FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello drones etc.
3	Working frequency	2.4GHz, 5.8GHz
4	Detection range	0-1000 meters (urban environment, tested with DJI AIR2 as the target)
5	Azimuth	0°~360°(omnidirectional antenna)
6	Recognition time	≤2s
7	False alarm rate	≤once/day(In an anechoic chamber environment)
8	Swarm detection	≥10 concurrent drones

Direction Finding Mode

1	Operating mode	Directional passive detection
2	Action object	Some drones such as DJI (Phantom series and Yu series), Daotong and Hubson
3	Working frequency	2.4GHz and 5.8GHz
4	Detection distance	100-2000 meters (urban environment, tested with DJI AIR2 as the target)
5	Probe azimuth	≤±17.5°(Target 1km away with frequency locked)

Mechanical parameters

1	size	LWH:250mm180mm55mm(the host)
2	weight	≤2kgs(Antenna included)
3	Battery life	≥3hours
4	Charging time	≤3 hours (using the original charger)
5	Charging interface	Type-C

Anti UAS UAV Handheld Drone Detector For WiFi GPS Signal Detection 0

Safety and Standards

Model	PTC-UAV-DT1
Degree of protection	IP54

Mechanical parameters

Size	LWH:250mm180mm55mm(Built-in Omni Antenna)
Weight	≤1000g(Antenna included)

Environmental adaptability

Operating temperature

-20ºC~55ºC

Product Features

Passive detection, no signal emission, no interference to the peripheral, environment friendly.
Real-time detection function: the equipment can display the number, brand, model and operating frequency of detected drones in real time.
Direction-finding function: The equipment has a direction-finding mode. After turn the equipment direction-finding mode, the equipment can perform direction-finding on the UAV target.
360ºC Direction finding capability with built-in high gain Omni antenna.
Handheld Tablet type, works alone or couple with a counter drone gun or drone jammers.
Sensitivity adjustment function: the equipment supports adjusting the signal recognition threshold by adjusting the detection sensitivity option.
Low battery reminder function: Equipped with multi-level battery display, when the battery is too low, it will give an alarm promptly.
Alarm mode configuration function: support multiple alarm modes such as light and sound, and the urgency of the alarm ringtone is adjustable.
Type-C charging interface, can use common Android phone charger.
Online update of drone library.
Reset the device to out-of-factory state.
Storage and view of historical detection result data.
View of drone library, including drone make, model and frequency.

Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Ar-my Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities
etc.
