Name: 2.4G 5.8G Drone Frequency Blocker Radio Jammer Direction Finder ODM
Brand: Pinnacle Technology Co., Limited
SKU: H1B-D
Price: 22,238.00 USD
Availability: InStock

Home > products > Drone Detector >

2.4G 5.8G Drone Frequency Blocker Radio Jammer Direction Finder ODM

5.8G drone frequency blocker

ODM drone frequency blocker

ODM drone radio jammer

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

H1B-D

Request A Quote

2.4G 5.8G Drone Frequency Blocker Radio Jammer Direction Finder ODM

Product Details

Model NO.:

PTC-H1B-D

Detection Mode:

Passive Detection

Detection Frequency:

900MHz、1.1GHz、1.2GHz、1.4GHz、2.4GHz、5.2GHz、5.8GHz

Detection Distance:

0-800meters

Detection Drone Model:

DJI Series Drones, FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello Drones Etc.

Directional Finding Model:

2.4GHz And 5.8GHz

Direction Finding Distance:

100-2000 Meters

N.W:

800G

Highlight:

5.8G drone frequency blocker

ODM drone frequency blocker

ODM drone radio jammer

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Packaging Details

Carton

Delivery Time

10-20days

Payment Terms

T/T, Western Union

Supply Ability

50000

Handheld Drone Detection FPV Detection

Get Best Price

Video

Handheld Drone Detector and Location 100-6000MHz Dji Fpv Autel 1-2km Signal Detector

Get Best Price

Video

Handheld Dji FPV Autel Drone Signal Detector with Drone and Controller Locate Positioning up to 3km

Get Best Price

Video

Drone Counter-Measure Detector with Direction Finding and Location Positioning

Get Best Price

86-755-86239323

Contact Now

Product Description

Powerful Handheld Drone Detector and Direction Finder with Frequency 2.4G 5.8g

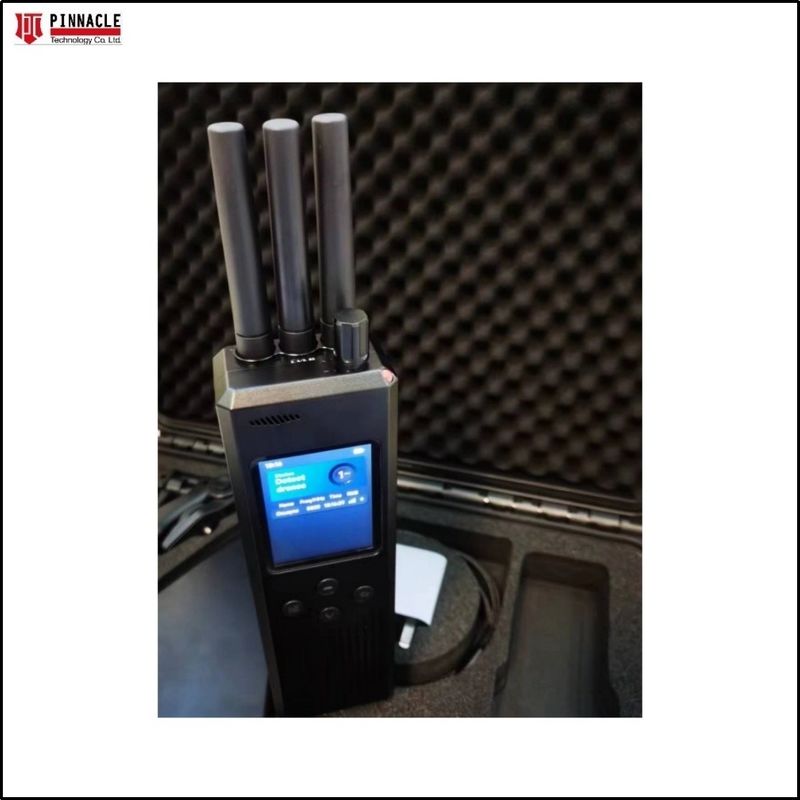

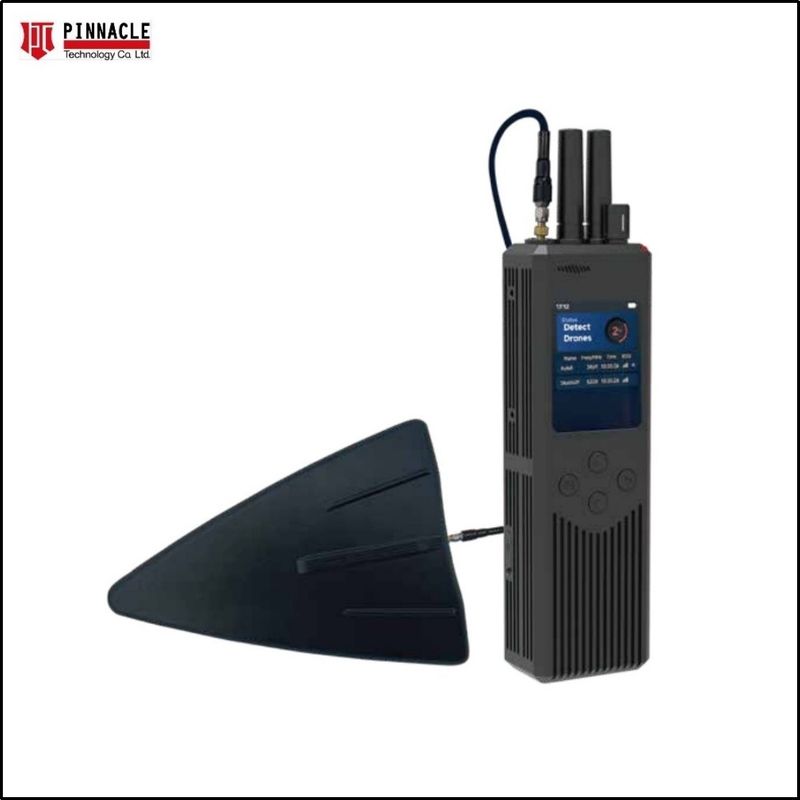

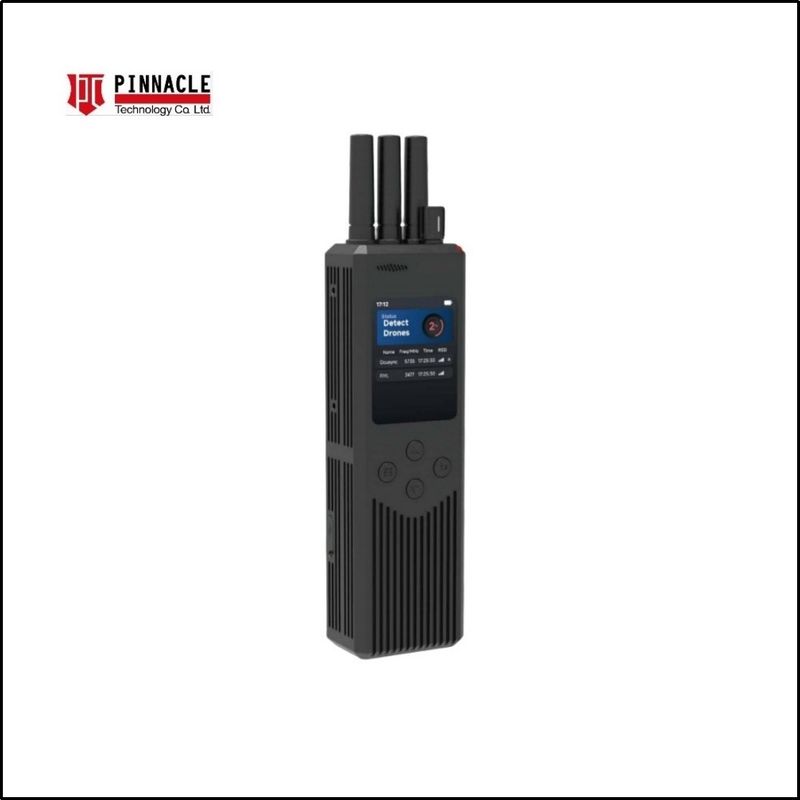

PTC-H1B-D is a carry-on device for drone detection, identification a nd alarm. An optional direction finding antenna comes with the device, giving it the capability to determine the rough direction of a coming drone.

The device collects surrounding radio signals and sorts drone signals out via deep learning. When a drone is identified, it alerts people through sound and/or light alarms.

2.4G 5.8G Drone Frequency Blocker Radio Jammer Direction Finder ODM 0

Omni-directional detection mode

#	Item	Technical Parameters
1	Operating mode	Passive detection
2	Drone models supported	DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello drones etc.
3	Working frequency	900MHz,1.1GHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz
4	Detection range	0-800 meters (urban environment, tested with DJI AIR2 as the target)
5	Azimuth	0°~360°(omnidirectional antenna)
6	Recognition time	≤2s
7	False alarm rate	≤once/day(In an anechoic chamber environment)
8	Swarm detection	≥10 concurrent drones

Direction finding mode

1	Operating mode	Directional passive detection
2	Action object	Some drones such as DJI (Phantom series and Yu series), Daotong and Hubson
3	Working frequency	2.4GHz and 5.8GHz
4	Detection distance	100-2000 meters (urban environment, tested with DJI AIR2 as the target)
5	Probe azimuth	≤±17.5°(Target 1km away with frequency locked)

Safety and Standards

Model	PTC-DF-H1
Degree of protection	IP54

Electrical characteristics

Power consumption	≤6W(complete machine)
Battery life	≥6h
Charging time	≤3h(Use the original charger)

Mechanical parameters

Size	LWH:235mm66mm43mm(the host)
Weight	≤800g(Antenna not included)

Environmental adaptability

Operating temperature

-20ºC~55ºC

Battery parameters

Nominal capacity	10000mAh
Nominal voltage	3.7V
Nominal electricity	37Wh
Battery Type	lithium battery

Packaging parameters

Protective box size	470mm420mm143mm(LWH)
Net weight of protective box	2.65kg

Function Description

Real-time detection function: the equipment can display the number, brand, model and operating frequency of detected drones in real time;
Direction-finding function: The equipment has a direction-finding mode. After the equipment is equipped with a direction-finding antenna, the equipment can perform direction-finding on the UAV target;
Sensitivity adjustment function: the equipment supports adjusting the signal recognition threshold by adjusting the detection sensitivity option;
Low battery reminder function: Equipped with multi-level battery display, when the battery is too low, it will give an alarm prompt;
Alarm mode configuration function: support multiple alarm modes such as light and sound, and the urgency of the alarm ringtone is adjustable.
