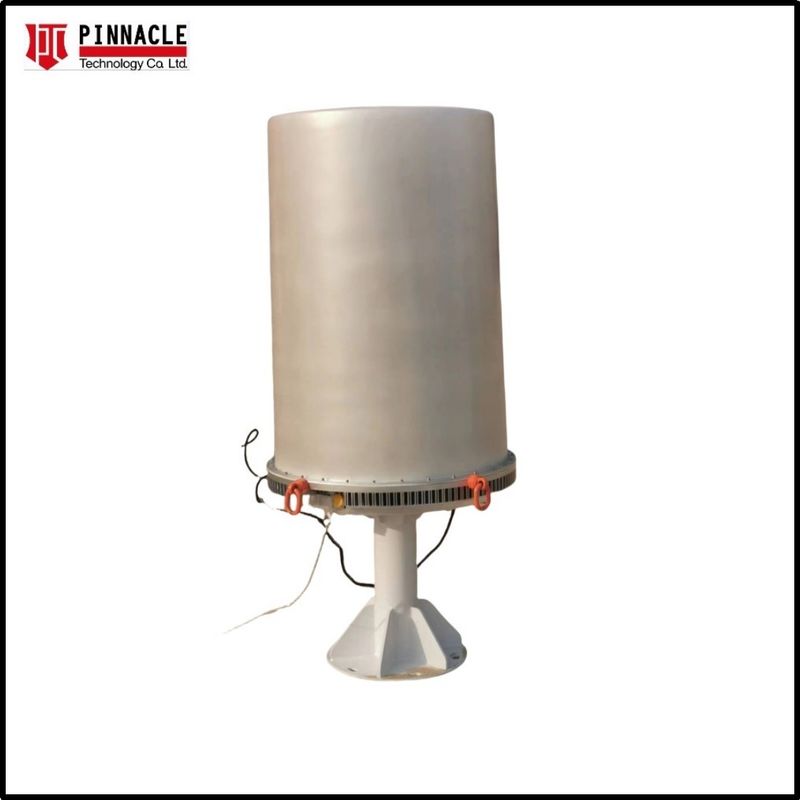

Outdoor Waterproof Anti-Drone FPV Jammer with Internal Antennas up to 7km Range

This high power 1000W ANTI-DRONE JAMMER with strong Waterproof function is elaborately designed as a domestic and international drone-controlling device by adopting advanced technologies both at home and abroad. It is an environment-friendly jammer. And designed to disturb low-altitude flying drone's remote control signals without influence on surrounding signals such as those for mobile communication, communication base station, car remote control and so on. The jammer is configured with 8 output channels (VHF/UHF/remote control /Wifi2.4G/5.8G/GPS positioning) to intercept drone's remote control signal, disturbing range can be up to 7km for option.

Product Parameters

Basic Specifications
Working Frequencies: 7 Frequencies
Total Output Power:1000W
Jam Range: 3km-10km
Power Supply: AC 220V
Product Size:1510mm×700mm×400 mm(Built-in Omni
                         Antenna)
Product Weight: appr.120kg
Support IR Remote control and Ethernet software control.

Frequency parameters can be customized. Typical frequencies are shown below:

Channel	Working Frequency		Channel Power(±3dBm)
CH1	900-930 MHz		50W
CH2	1200-1300 MHz		50W
CH3	1560-1620 MHz		50W
CH4	2400-2440 MHz		200W
CH5	2440-2484MHz		200W
CH6	5150-5250MHz		50W
CH7	5725-5850MHz		400W
Total Working Channels		7 channels
Total Working Output		1000W
Shielding distance		3-7km
Technology Solution for option		AI Jamming solution
Power Supply		AC: 110-240V
Built-in internal Antenna		High gain 360ºC Omni antenna
IR Remote Control		For turning ON/OFF Jammer
Ethernet Software Control		Control the jamming power and failure alarm
Power consumption		3000W
Weight		120Kg
Size(Length × width × height)		1510mm×700mm×400 mm(Built-in Omni Antenna)
Humidity		5%-95%
Operation temperature		-20 to +50ºC

Features and Advantages

1. Ultrahigh frequency board-band jamming technology
2. Wide coverage of 7 Frequencies with high effective power up to 1000W.
3. Support IR Remote control and Ethernet software control.
4. Waterproof designed
5. Long jamming Range up to 7km.
6. High Power and Friendly use
7. Support high gain Omni Antennas
8. Effective segmentation to block each drone controlled signals.
9. Imported chips, slow start circuit design can avoid the sparking phenomenon caused by mechanical switch, high integration and stable operation. standing wave and other fault alarms, the drone signal jammer will automatically cut off the failed module to avoid damage to the drone shield.

Controlling Interference Function
There are two ways to control the signal interference function of this device, via IR infrared remote controller and via Ethernet connection to a computer terminal.
1. IR Remote Controller
2. Ethernet Software Control, control Interface: RJ45
      a. Working Frequency bands and Output Power Controllable by Software
     b. Output Power and VSWR Alarming status
    c. Remote Monitoring software to adjust the RF Power of each Band
    d. Power Amplifier ON/OFF of each Band by Software

Jamming Methods

How to Use:

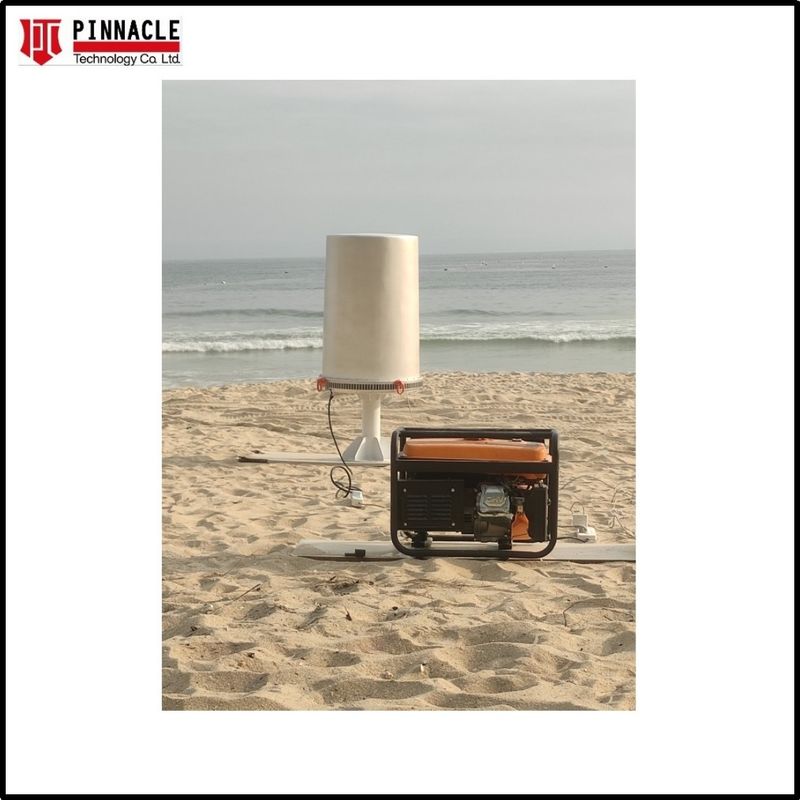

Put the Drone jammer on the higher places and switch on then jammer works, it will cut off the signal between the controller and the drones. The drone will not be able to receive any control signals or transmit any camera signals back to the controller and drop down. The drone will be officially MIA (missing in action).

Applications:

Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Ar-my Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities

etc.
