Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
WP800W

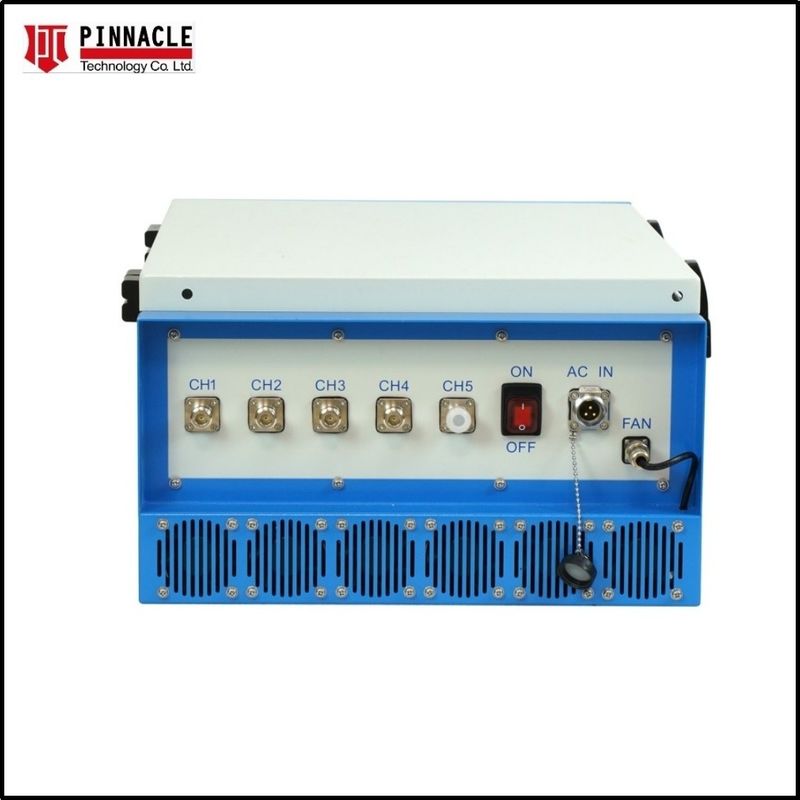

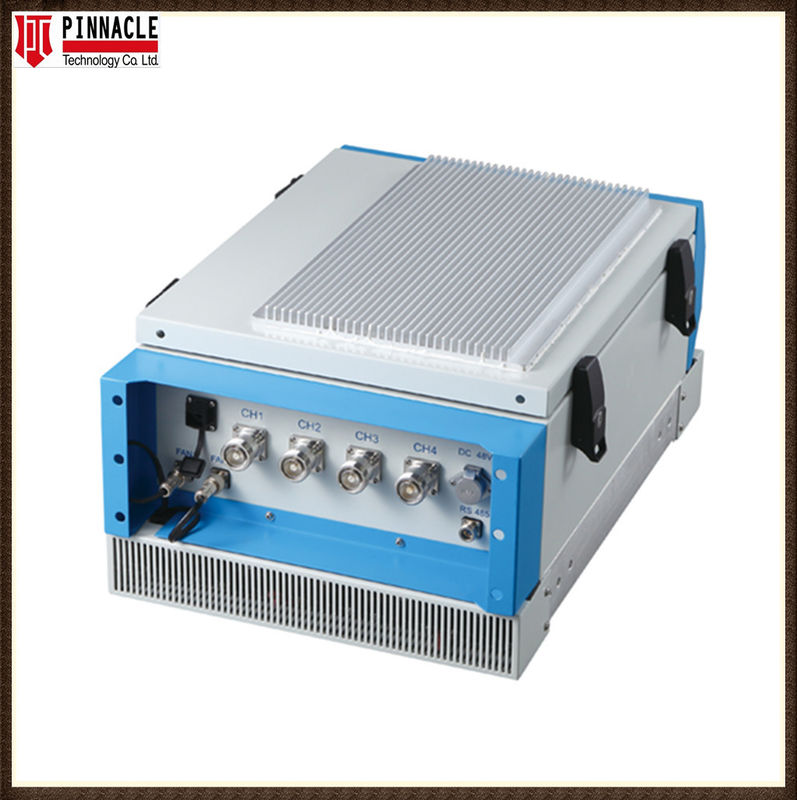

PTC-WP800W Outdoor Waterproof Prison Jammer is a Cellular RF Wireless Signal jamming system. It designed to block all unauthorized cellular phones and communications devices in prisons and secure facilities, it is an important part of security and crime prevention. The prison Jammer can be easily installed, operating over many frequencies bands cell phones, satellite phone, Wi-Fi and many other communications devices are disabled.
Advantages and Features:
| Channels No. | Frequencies | RF Output Power +/-1dBm |
| 1 | 790-894MHz | 100W |
| 2 | 925-960MHz | 100W |
| 3 | 1805-1880MHz | 100W |
| 4 | 2110-2170MHz | 100W |
| 5 | 2620-2690MHz | 100W |
| 6 | 2400-25000MHz | 100W |
| 7 | 5150-5850MHz | 40W |
| 8 | 3400-3800MHZ | 50W |
| Total Working Channels | 8 channels (the frequencies can be customized as per request) | |
| Each band power | 40-100W | |
| Total output Power | 690W | |
| Remote Control | Support Infrared remote control and software Ethernet Access control | |
| Power Adjustable | Each band power can be adjustable by software | |
| Jamming Range | 20-100meters @-85dBm | |
| Jammer Size | 700*550*300mm(LxWxD) | |
| Antenna | 1pcs High Gain Directional Antennas fully tuned 1jammer | |
| Power Supply | AC: 110-240V/DC-48V | |
| N.W | 50Kg | |
| Working temperature/ | -20℃-+50℃ | |
| Working Humidity | 5% - 95% | |
| Temperature Protection | High/Low temperature protection | |
| Jamming Frequency Range | Mobile frequencies + wifi Signals, GPS for option | |
| Jamming target | 2G/3G/4G/5G mobile phone signals+ WIFI 2.4G, WIFI 5.8G | |
