High Power Waterproof Prison Signal Jammer 5G 4G 3G 2G Cell Phone WIFI Blocker
Brand Name:
PTC
Model Number:
WP800W
Place of Origin:
Shenzhen China
Certification:
ISO 9000
MOQ:
1set
Price:
Contact Us
Supply Ability:
50000
Delivery Time:
10-20days
Payment Terms:
T/T, Western Union
Standard Packaging:
Carton
Product Details
Highlight:
4G wifi prison signal jammer
,Waterproof prison signal jammer
,Prison cell phone wifi blocker
Model NO.:
PTC-WP800W
Working Channel:
8CH
Output Power:
800W
Jamming Distance:
30-150meters
Jamming Frequencies:
2g/3G/4G/5g/WiFi
Remote Control:
To Turn On/off Jammer
Remote Access:
To Adjust The Power And Monitoring The Working Failures
Dimension:
700*550*300mm
Waterproof Grade:
IP65
Antennas:
Directional Antennas & Omni Antennas For Option
Product Description
Detailed Specifications & Features
PTC-WP800W Outdoor Waterproof Prison Jammer is a Cellular RF Wireless Signal jamming system. It designed to block all unauthorized cellular phones and communications devices in prisons and secure facilities, it is an important part of security and crime prevention. The prison Jammer can be easily installed, operating over many frequencies bands cell phones, satellite phone, Wi-Fi and many other communications devices are disabled.
Basic Specifications
Part No.#: PTC-WP800W
Working Frequencies: 8Frequencies
Output Power:Total 690W for option
Jam Range: 20-100m@-85dBm environment signal strength, the jamming range is depend on local signals strength given
Remote control: IR remote control for turning ON/OFF Jammer
Software control: for monitoring all jammers working situation
Jammer dimension: 700*550*300mm(LxWxD)
Power Supply:AC220V/DC-48V(UPS)
Cooling System:High efficiency aluminum alloy radiator
Working Time:Not-stop Working
Power Consumption: 2000W
Waterproof level: IP65
Warranty: 2years
Part No.#: PTC-WP800W
Working Frequencies: 8Frequencies
Output Power:Total 690W for option
Jam Range: 20-100m@-85dBm environment signal strength, the jamming range is depend on local signals strength given
Remote control: IR remote control for turning ON/OFF Jammer
Software control: for monitoring all jammers working situation
Jammer dimension: 700*550*300mm(LxWxD)
Power Supply:AC220V/DC-48V(UPS)
Cooling System:High efficiency aluminum alloy radiator
Working Time:Not-stop Working
Power Consumption: 2000W
Waterproof level: IP65
Warranty: 2years
The specification of PTC-WP800W
| Channels No. | Frequencies | RF Output Power +/-1dBm |
| 1 | 790-894MHz | 100W |
| 2 | 925-960MHz | 100W |
| 3 | 1805-1880MHz | 100W |
| 4 | 2110-2170MHz | 100W |
| 5 | 2620-2690MHz | 100W |
| 6 | 2400-25000MHz | 100W |
| 7 | 5150-5850MHz | 40W |
| 8 | 3400-3800MHZ | 50W |
| Total Working Channels | 8 channels | |
| Each band power | 40-100W | |
| Total output Power | 690W | |
| Remote Control | Support Infrared remote control and software Ethernet Access control | |
| Power Adjustable | Each band power can be adjustable by software, monitoring all jammers andfailure alarms by software | |
| Jamming Range | 20-100meters @-85dBm | |
| Antennas | 1pcs High Gain Directional Antennas fully tuned 1jammer | |
| Jammer dimension | 700*550*300mm(LxWxD) | |
| Jamming technology | VCO, DDS, AI, 3 solutions for option | |
| Power Supply | AC: 110-240V/DC-48V | |
| Waterproof grade | IP65 | |
| N.W | 50Kg | |
| Working temperature/ | -20ºC-+50ºC | |
| Working Humidity | 5% - 95% | |
| Temperature Protection | High/Low temperature protection | |
| Jamming Frequency Range | Mobile frequencies + wifi Signals, GPS for option | |
| Jamming target | 2G/3G/4G/5G mobile phone signals+ WIFI 2.4G, WIFI 5.8G | |
Advantages and Features:
1. Each Jammer can jam up to 8 frequencies simultaneously.
2. Supports high gain directional antennas for covering long range as far as possible
3. Specially equipped with IP65 Waterproof and solid housing for all weather protection.
4. Supports Remote control for switching ON/OFF Jammer
5. Supports Remote Access Control (computer internet software control) for controlling
each band power. Failure alarms and running time.
Jammer Failure Alarms: Such as the cabinet opened maliciously, RF cables cut off deliberately, Modules failure,Temperature problems, the failure alarms will be sent to software.
6. UPS and battery backup in case of mains power failure for option.
7. ON/OFF each modules separately by computer software.
8. For the cellular phone jamming, only block the downlink frequencies, not disturb the
uplink to keep the BTS normal running.
9. Continuous operation, even in hot climates, with no time limit.
10. Heat sink designing combing with the fans to make system in a cooling status.
11. Secure design to avoid sabotage.
12. (VSWR) circuit protection to ensure system will not burn out in case of antenna
short circuiting or disconnection.
13. Directional antennas and 360 ºC omni antennas for option.
14. 2Years Quality Warranty
15. DDS and AI technology for option
by Software operation
b. Output Power and VSWR Alarming status
c. Remote Monitoring software to adjust the RF output Power of
each Band
d. Power Amplifier ON/OFF of each Band by Software
15. DDS and AI technology for option
Remote monitoring software also can be available
a. Working Frequency bands and Output Power Controllable by Software operation
b. Output Power and VSWR Alarming status
c. Remote Monitoring software to adjust the RF output Power of
each Band
d. Power Amplifier ON/OFF of each Band by Software
IR Remote Control
Infrared Remote control for switching ON/OFF Jammer

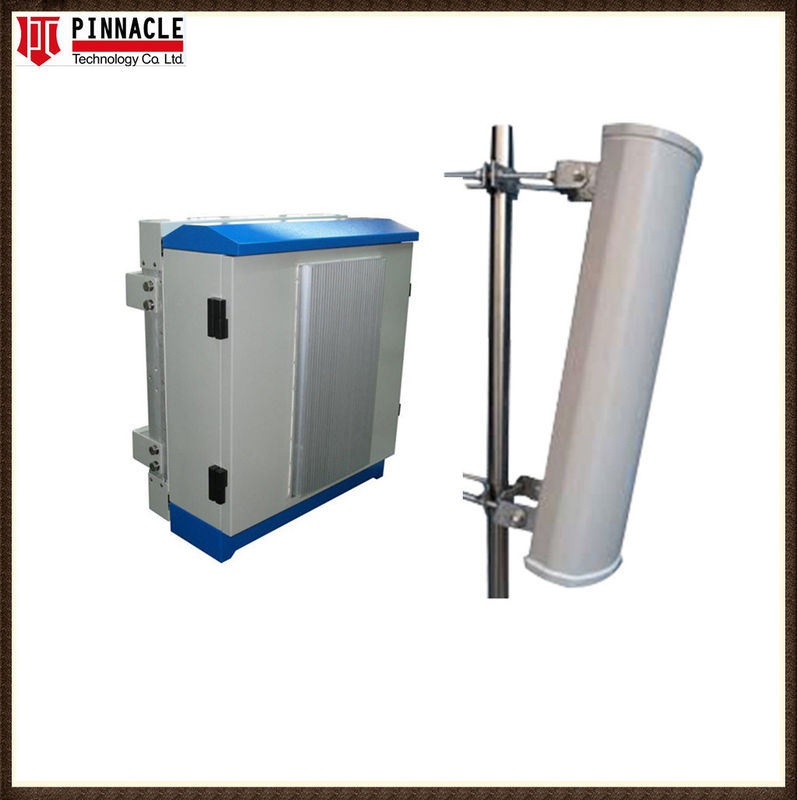

Only need 1pcs high gain Directional Antennas for fully tuned one set of Jammer
Application
It can be applied at prisons, school, meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
It can be applied at prisons, school, meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
