Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
UAV-WP800W

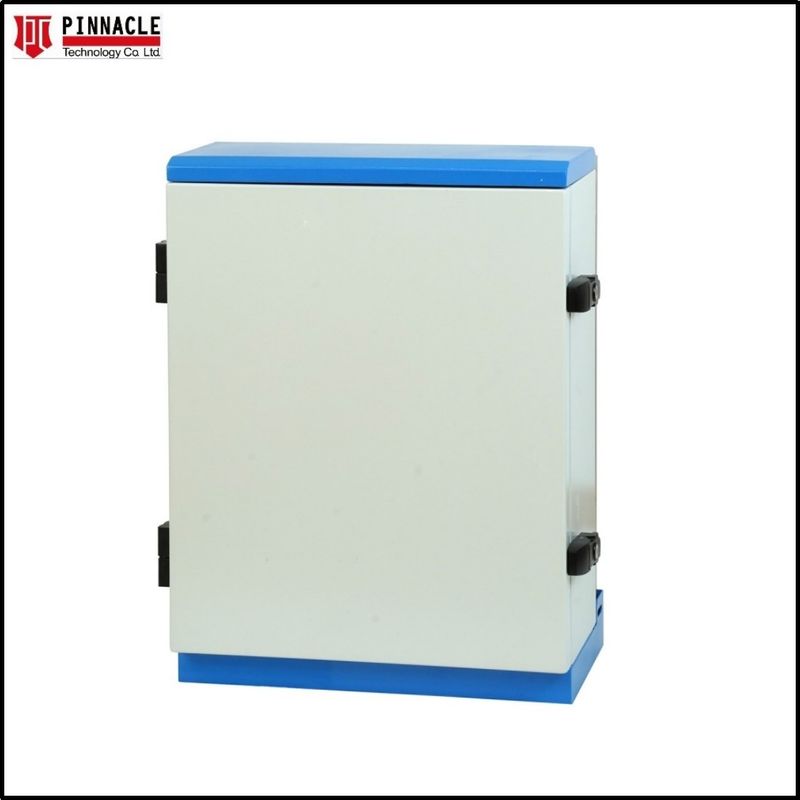

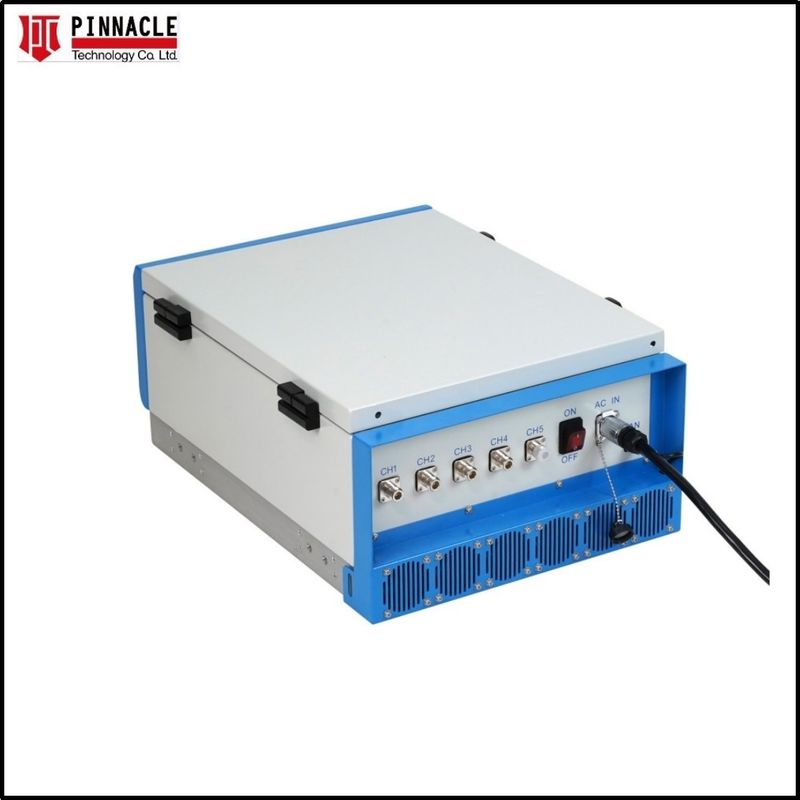

Fixed Type Outdoor Waterproof Anti-Drones Jamming System Uav FPV Signal Jammer up to 800W
This high power Outdoor Waterproof Drone Jammer is a Drone/FPV RF Wireless Signal jamming system. It designed with strong waterproof function to block all drones and remote controls communications devices in secure facilities, it is an important part of security and crime prevention. The Drone Jammer can be easily installed, operating over many frequencies bands Remote control, satellite GPS, Wi-Fi and many other communications devices are disabled.
Technical Parameters:
| Channels No. | Frequencies | RF Output Power +/-3dBm |
| 1 | 428-438MHz | 100W |
| 2 | 860-930MHz | 100W |
| 3 | 1170-1280MHz | 100W |
| 4 | 1400-1440MHz | 100W |
| 5 | 1560-1620MHz | 100W |
| 6 | 2400-2500MHz | 100W |
| 7 | 5150-5250MHz | 100W |
| 8 | 5725-5850MHz | 100W |
| Total Working Channels | 8-channels | |
| Each band power | 100W | |
| Total output Power | 800W | |
| Remote Control | Support Infrared remote control and software Ethernet Access control | |
| Power Adjustable | Each band power can be adjustable by software | |
| Jamming Range |
500-2000m, the jamming range depends on the local environment factors and the distance between drone, remote control and Jammer |
|
| Jammer Size | 700*550*300mm(LxWxD) | |
| Antenna | 8pcs high gain Omni antennas + directional antennas | |
| Power Supply | AC: 110-240V/DC-48V | |
| N.W | 50Kg | |
| Working temperature/ | -20℃-+50℃ | |
| Working Humidity | 5% - 95% | |
| Temperature Protection | High/Low temperature protection | |
| Jamming Frequency Range | Mobile frequencies + wifi Signals, GPS for option | |
| Jamming target | The drone frequencies and remote control frequencies from 20-6000 | |
