Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
UAV-P7

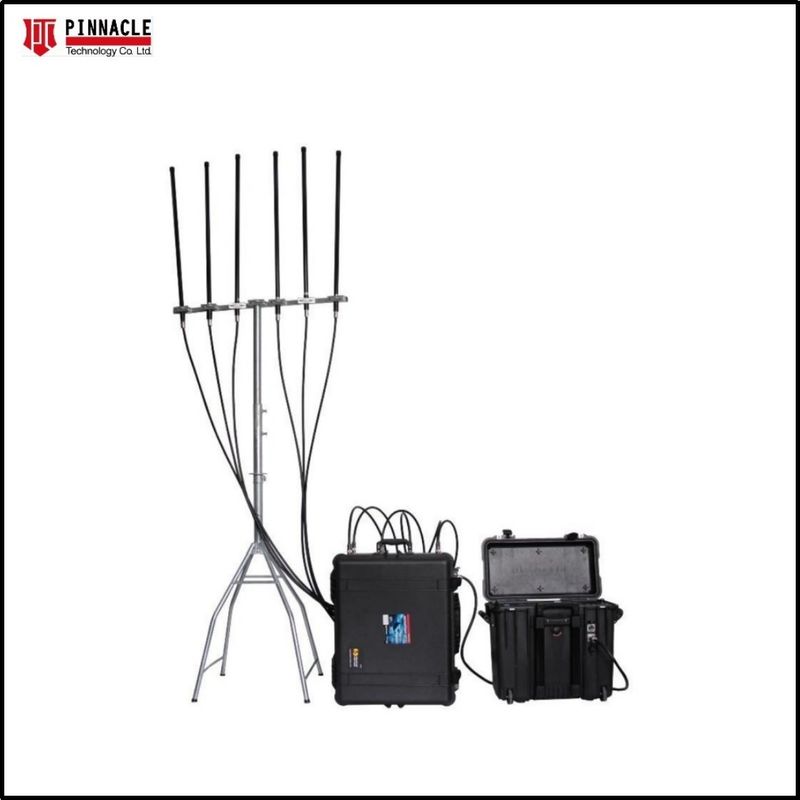

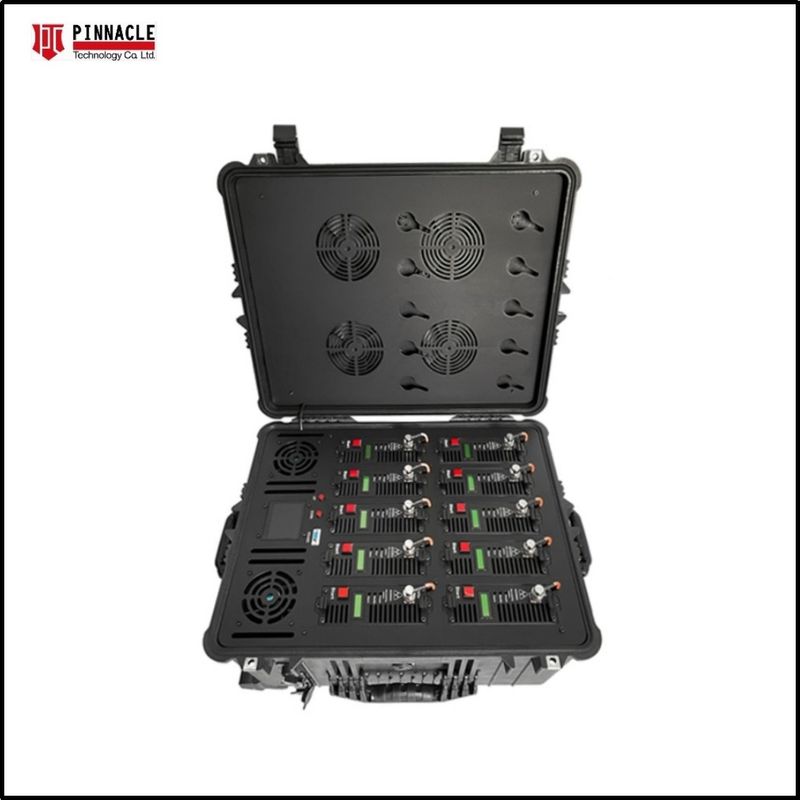

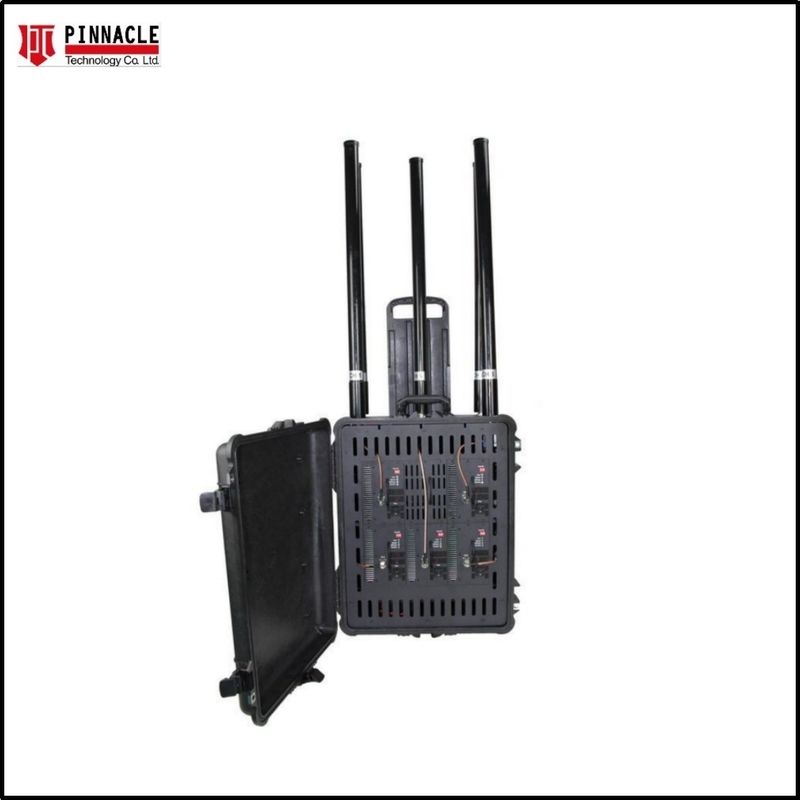

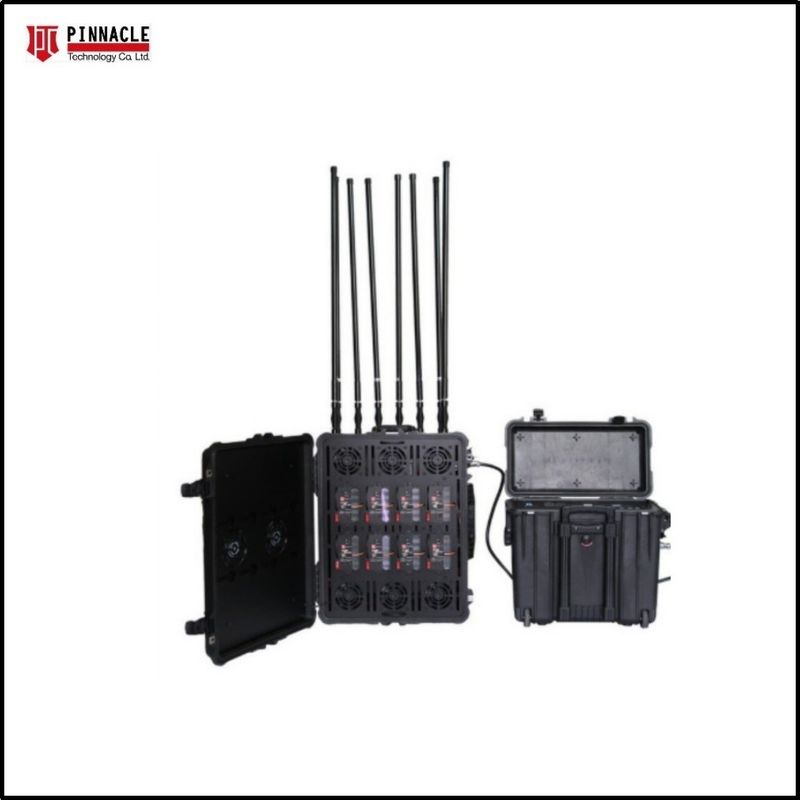

This Pelican portable DRONE JAMMERS PTC-UAV-P7 is elaborately designed as a domestic and international drone-controlling device by adopting advanced technologies-DDS both at home and abroad. It is an environment-friendly jammer; it is designed to disturb low-altitude flying drone's remote control signals without influence on surrounding signals such as those for mobile communication, communication base station, car remote control and so on. The jammer is configured with 8 frequencies signals (remote control signals+WIFI2.4G/5.8G +GPS ) to intercept drone's remote control signal.
Technical Parameters
Frequency parameters can be customized. Typical frequencies are shown below| Channel | Working Frequency | Channel Power(±3dBm) | |
| CH1 | 433MHz | 100W | |
| CH2 | 868-912MHz | 100W | |
| CH3 | 1080 - 1300MHz | 100W | |
| CH4 | 1550 - 1620MHz | 100W | |
| CH5 | 2400 - 2500MHz | 100W | |
| CH6 | 2400 - 2500MHz | 100W | |
| CH7 | 5725 - 5850MHz | 25W | |
| Total Working Channels | 7 channels | ||
| Total Working Output | 525W | ||
| Shielding distance | 300-3000meters | ||
| Power Control | Adjustable Output Power each Band/Channel | ||
| Battery | B-50AH 27V/50AH LiFePo4 Battery | ||
| External Battery working time | 1-2hours, Pelican Case 1440, 35kg Weight | ||
| External Antenna | High gain Directional antenna and Omni Antennas for option | ||
| Power consumption | 1600W | ||
| Jammer Weight | 40Kg | ||
| Size(Length × width × height) | 626 mm(L)×49.2mm(W)× 350mm(H), not included antennas | ||
| Humidity | 5%-95% | ||
| Operation temperature | -20 to +50ºC | ||
| Stand-alone modular design and individual power control | |||
| VSWR over protection for each modular | |||
| Working status indicator for each band modular | |||
| Designed to cut off down-link only, Therefore it doesn't have Interference to base station and repeater | |||
Features and Advantages
Q1. Could I get a sample before bulk order?
Yes, we offer the sample for all models, but the sample costs, shipping and taxes are charged by buyer.
Q2. What should I do if I don't know about frequency in my country?
Please feel free to contact us with your inquiry, we will find the frequency you need and address your problems.
Q3. Do you accept OEM/ODM order?
Yes, ODM & OEM are both available and we can customize the brand logo, colors, and frequencies as per request.
Q4. Leadtime
Sample: 7-10 business days, <20 pcs 15-20 days, 20-200 pcs 20-30days, >200 pcs Negotiate
Q5. Delivery Date of the sample by DHL/FedEx/UPS/EMS
USA/Canada/Europe/Asia: 3-5 business days
Middle East/Latin American: 5-7 business days
African: 3-7 business days
Q6. Payment Method
T/T, Western Union, PayPal, are available
*Other methods please contact us with more details.
