Low Altitude Drone Jammer FPV Blocker with Radar Detecting and Eo Camera Identify up to 2km
Brand Name:
PTC
Model Number:
UAVD2.0
Place of Origin:
Shenzhen China
Certification:
ISO 9000
MOQ:
1set
Price:
Contact Us
Supply Ability:
50000
Delivery Time:
10-20days
Payment Terms:
T/T, Western Union
Standard Packaging:
Carton
Product Details
Highlight:
fpv anti drone jammer
,fpv drone signal jammer
,5km anti drone jammer
Model NO.:
PTC-UAVD2.0
Camerna Resolution:
1080p
Radaw Detecion Distance:
3-5km
Jamming Distance:
>1000m
Product Description
Detailed Specifications & Features
Product Instructions:
The low altitude Anti-UAV system is designed to monitor unwanted UAV potential malicious activities.
The system uses frequency-modulated continuous wave radar and photoelectric cooperative detection system as the main technical means. The radar detects the target at a long distance, the dual camera completes the search, detection and recognition of the UAV within the line of sight, and drives the identified UAV Or forced landing.
The system is scalable, allowing detection devices to access audio snooping, radio detection and radar equipment. System can be used within a network to meet the needs of different applications.
Product Specification:
| Equipment | Functions, Features Description |

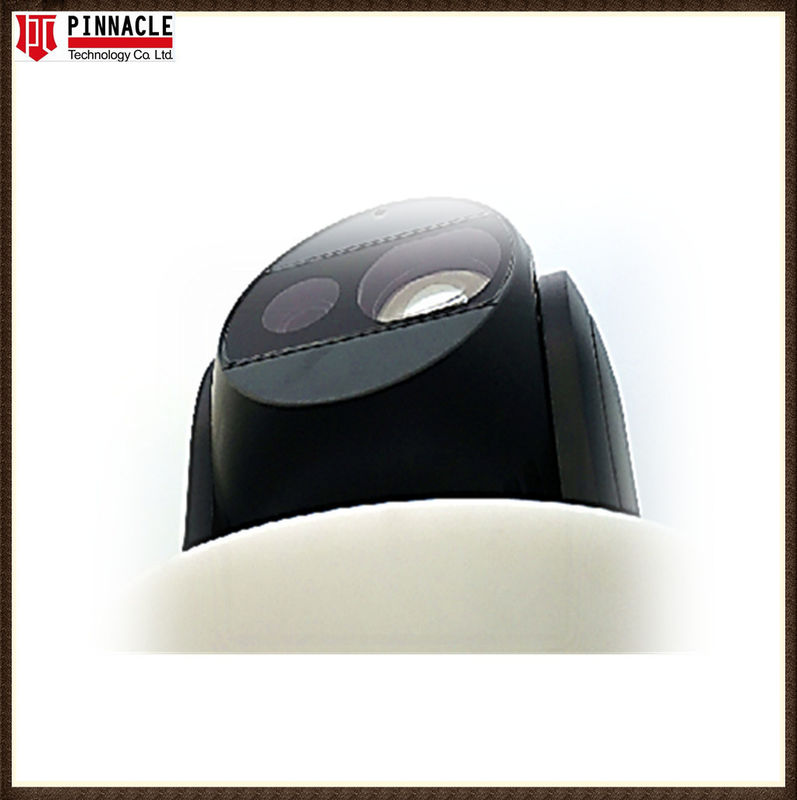

| Starlight HD camera | Resolution: 1080p Clear sky: ≥ 1000 m Night vision: > 500 m |
| Radar | System: FMCW RCS: 0.01 Detection range: > 5 km |
| Radio detection module | Spectral analysis Direction detection Frequency Range: ISM typical frequency band Range: > 2km, Directional accuracy: 1~3°R.M.S |
| Audio detection module | Range: 200 m |
| Fixed Unmanned Aerial Vehicle Jamming Equipment | Range: > 1000 m, with the omni antenna |
| GPS Cheating module | Power: 10 w Range: ≤ 5 km |
| Anti-UAV module | Band: 2.4GHz, bandwidth 100MHz 5.8GHz, bandwidth 40MHz 1.5GHz, bandwidth 40MHz Range: ≥ 1000 m |
| Portable Anti-UAV module | Band: 2.4GHz, bandwidth 100MHz 5.8GHz, bandwidth 40MHz 1.5GHz, bandwidth 40MHz Range: ≥ 500 m |
| Command and Dispatch system | Multi-target processing capability: 20 batches |
