Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
D20
Video

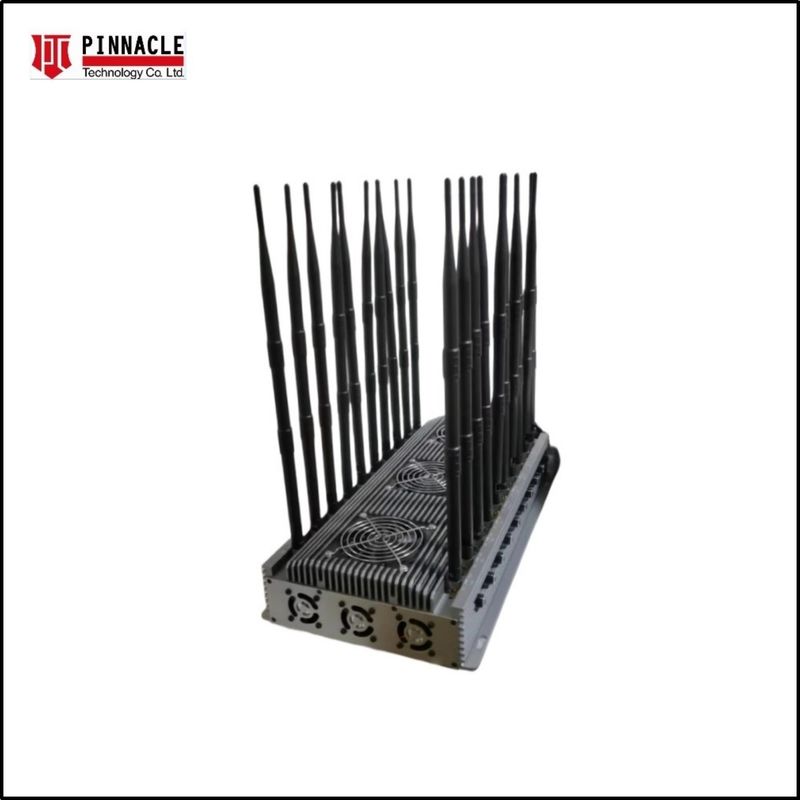

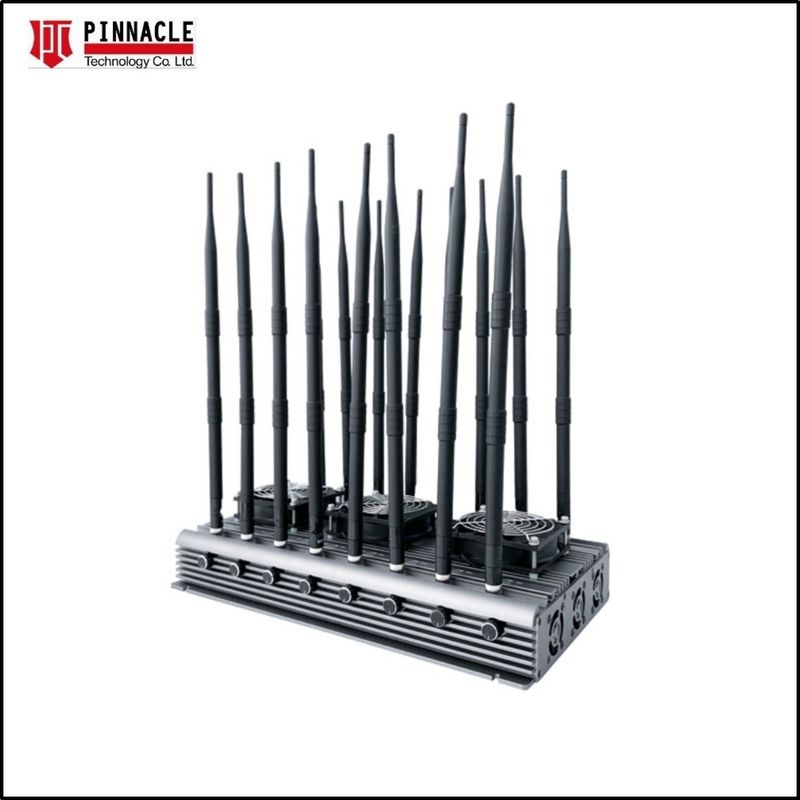

Desktop 160W 20-Antenna Cellphone WiFi 5g GPS Lojack UHF VHF Signal Jammer
This jammer designed with 20 Antennas Full Bands 130Mhz-6GHz for mobile phone GSM 3G 4GLTE 5G signal which bring us a strong jamming ability. And it can not only cut off all 3G 4G 5G mobile phone signals, but also jam Wi-Fi GPS LOJACK, RF 315 MHz 433MHz , VHF UHF Walkie-Talkie & Wireless Headset/Microphone signals. all-in-one jammer is power full to blocks all the signals, Jamming frequencies the jamming range may up to 60meters.
| Product Technical Specification of PTC-D20 | |||
| Working Channel | Output Port | Working Frequency | Output Power (+-1dBm) |
| CH1 | 5G-600 | 617-698MHz | 10W |
| CH2 | 4G-700 | 700-803MHz | 10W |
| CH3 | 4G-800 | 790-826MHz | 10W |
| CH4 | CDMA850 | 851-894MHz | 10W |
| CH5 | GSM900 | 920-965MHz | 10W |
| CH6 | DCS1800 | 1805-1880MHz | 10W |
| CH7 | PCS1900 | 1920-2000MHz | 10W |
| CH8 | 3G-2100 | 2110-2180MHz | 10W |
| CH9 | 4G-2300 | 2300-2400MHz | 8W |
| CH10 | 4G-2600 | 2500-2690MHz | 8W |
| CH11 | 5G-3300/3500 | 3300-3600MHz | 4W |
| CH12 | 5G-3600/3800 | 3600-3900MHZ | 4W |
| CH13 | Wifi-2400 | 2400-2500MHz | 8W |
| CH14 | Wifi-5800 | 5100-5900MHz | 4W |
| CH15 | GPS-L1 | 1560-1620MHz | 10W |
| CH16 | GPS-L2/L3/L4/L5 | 1170-1390MHz | 10W |
| CH17 | VHF/LOJACK | 135-175MHz | 5W |
| CH18 | RC-315 | 315MHz | 5W |
| CH19 | RC-433 | 433-434MHz | 5W |
| CH20 | RC-868 | 868MHz | 5W |
| Working frequency: 20 frequencies for option | |||
| Total output Power: 156W | |||
| Power Supply: AC-110~240V to DC-24V | |||
| Each band power can be adjustable by Knobs | |||
| External Battery working time: about 60minutes | |||
| Support 2-5meters with IR remote control to turn ON/OFF Jammer, from Max power to 0(off) | |||
| Dimensions: 440x 250x 90 mm(not Include Antenna) | |||
| N.W: appr.8kgs | |||
| Omni Antenna: 380mm length | |||
| Jamming range: 2-60 meters, Still depends on the strength signal in given area | |||
| All frequency can be mixed flexible | |||
| Each channel module can be switch on/off and work independently | |||
| Warranty: 1 year from delivery date | |||
Advantage:
