800W RCIED Cell Phone Jamming Device Pelican Disruptor For Military Police Government Convey

800W Portable RCIED Cellphone Pelican High Power Signal Jammer For Military/Police/Government/Convey

This portable jamming system from 20MHz to 6Ghz NO GAP, designed for safer disabling all cellphone siganls. Consisting multiple transmission frequency bands and high transmission power, used for force protection. The IED Jammer consists of a multi-channel jamming transmitter and unique software, configured as a modular jamming system that allows the end-user to select protection against any threats. Delivering powerful jamming signals through a matching array of antennas.

Basic RF Technical Parameters:
Part No.: PTC-L8P820W
Total Output Power: 720W
Working Channels: 8CH
Jamming Frequency Range: 20-6000MHz for optioin
Jamming Range: 50-300 meters, still depending on the local signal strength
Jammer Size: 626 mm(L)×49.2mm(W)× 350mm(H), Pelican 1620
N.W: 45kgs
Antennas: High Gain Omni Antennas or directional antennas for option
Power Supply: 220VAC/24VDC
External Battery for option: 24V/45Amp
Power Consumption: 2200W for each jammer case
Sweep rate: Fixed
Power control: Each band/channel power can be adjustable
Warranty: 1years

The technical Specification of PTC-L8P720W

System Features and Advantages :

1. Stand-alone modular design and individual power control.

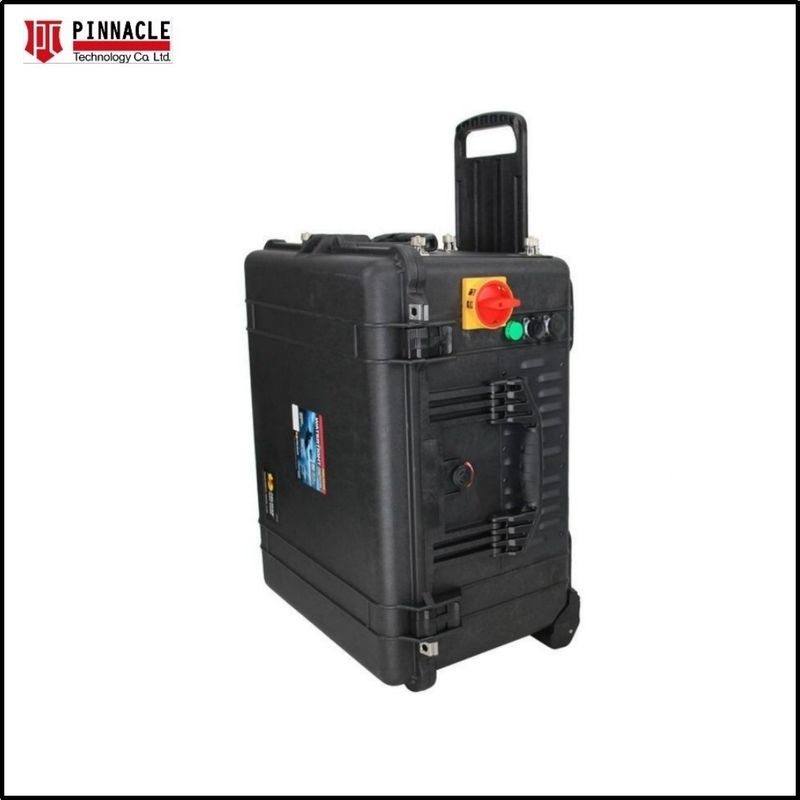

2. Specially designed with portable high grade Pelican cases to cover all the mobile signals 2G/3G/4G/5G cellphone signals.  Easily move on the bumpy uneven roads. Resistance from bumps and falls.
3. Support high gain Directional antennas and 360ºC Omni antennas for protection from all 360ºC directions.
4. Fully rainproof design available for some rainy climates. Compound by high IP grade waterproof parts to ensure high waterproof capabilities rain.
5. Modular construction for easy removal and connection, maintenance, repair and convenience for future upgrade.
6. Delicate ventilation design and heat sink built into the case to ensure uninterrupted work.

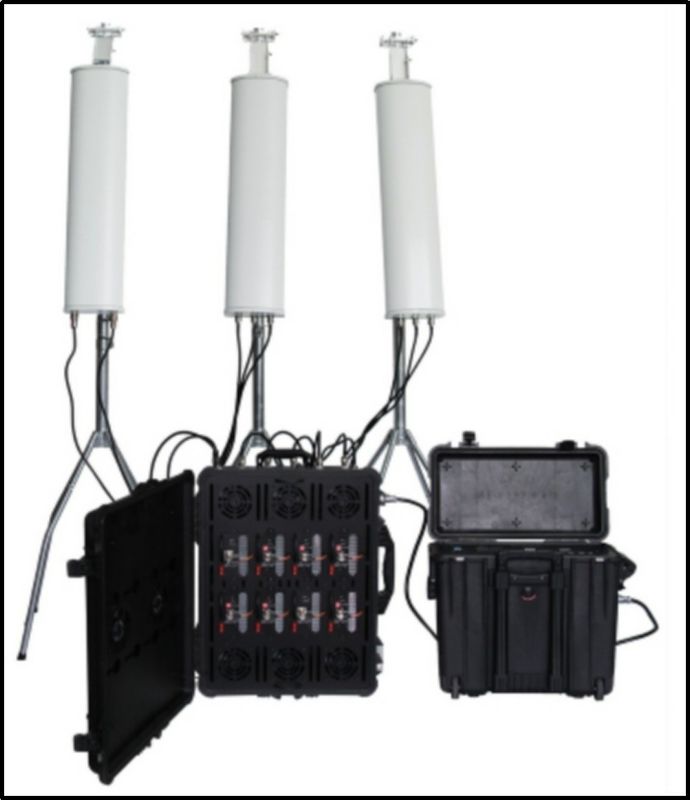

7. Each Jammer case contains up to 8 different inhibition modules simultaneously.
8. Each module with its antenna can work as an independent complete unit.
9. Each module can be controlled individually.
10. Support external backup battery input for option, adapted for external battery.Facilitating battery change in time for use in the field and thus extending hours duration of the equipment.
11. The Jammer can be portable and mounted in a vehicle, which is the best advantage of the system. The jammer can combine entire frequency bands installed in vehicle, equipped with vehicle mount antennas as required.
