Name: Suitcase Mobile Phone Signal Jammer Portable Cell Phone Blocker WIFI 2g 3g 4g 5g
Brand: Pinnacle Technology Co., Limited
SKU: HB14
Price: 22,238.00 USD
Availability: InStock

Home > products > Mobile Phone Signal Jammer >

Suitcase Mobile Phone Signal Jammer Portable Cell Phone Blocker WIFI 2g 3g 4g 5g

Suitcase Mobile Phone Signal Jammer

Portable Mobile Phone Signal Jammer

Suitcase portable cell phone blocker

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

HB14

Request A Quote

Suitcase Mobile Phone Signal Jammer Portable Cell Phone Blocker WIFI 2g 3g 4g 5g

Product Details

Model NO.:

PTC-HB14

Total Output Power:

140W

Jamming Distance:

10-50meters

Jamming Frequencies:

Mobile Frequencies 5g/4G/3G/3G+WiFi 2.4G/5.8g

Antennas:

Built-in Directional Antennas

N.W:

9kgs

Highlight:

Suitcase Mobile Phone Signal Jammer

Portable Mobile Phone Signal Jammer

Suitcase portable cell phone blocker

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Packaging Details

Carton

Delivery Time

10-20days

Payment Terms

T/T, Western Union

Supply Ability

50000

WIFI 2.4G 5.8G VHF UHF Mobile Phone Signal Jammer Scrambler Device

Get Best Price

20MHz-6000MHz Cellular Mobile Phone Signal Jammer Blocker Jamming Devices

Get Best Price

IP65 Waterproof School Mobile Phone Signal Jammer Jamming Device 210W

Get Best Price

High Power Portable Cellphone Jammer Signal Scrambler 8CH OEM

Get Best Price

86-755-86239323

Contact Now

Product Description

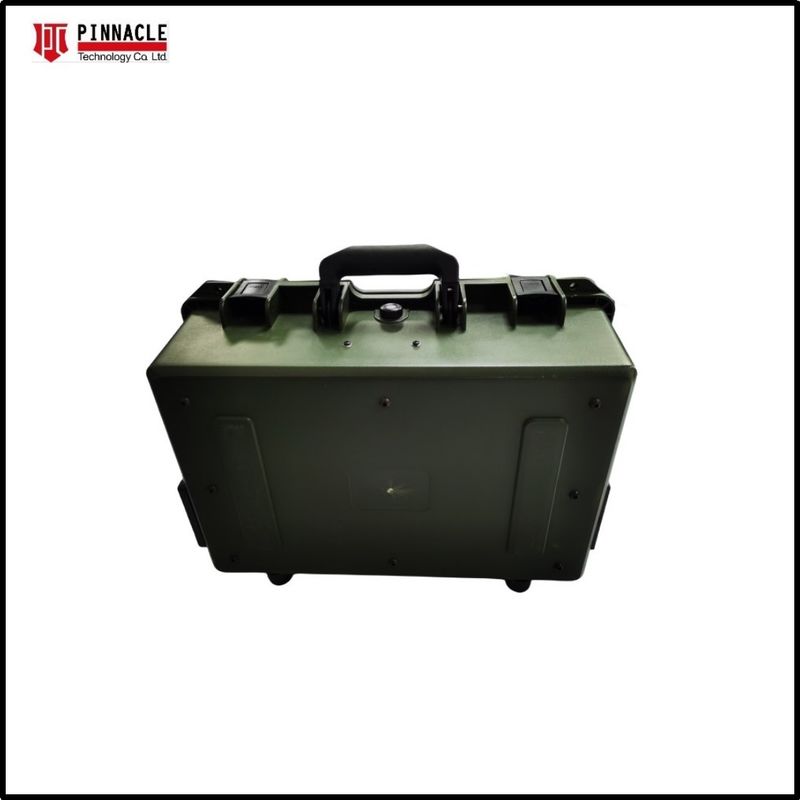

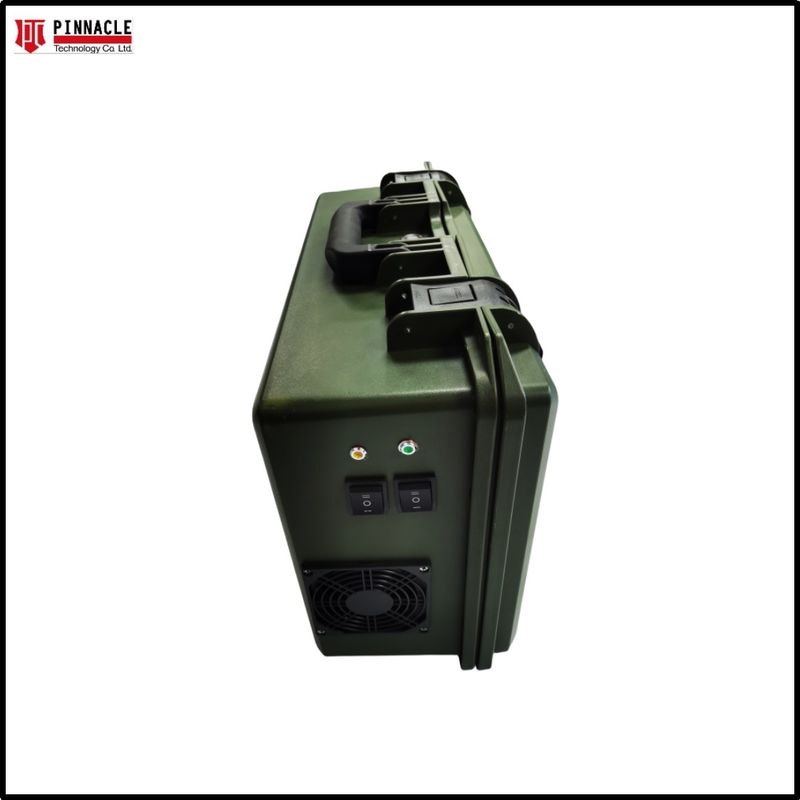

Suitcase Design WIFI 2g 3g 4g 5g Mobile Phone Signal Jammer Built-In Antennas Signal Blocker

PTC-HB14 Suitcase Siganl Jammer is a light weight easy-to-use Mobile Jamming model to block all mobile frequencies Signals and WIFI Signals (other frequencies for option). It has been Successfully and widely in many fields.

Channel	Working Frequencies	Output Power(±1dBm)
CH1	610-660MHz	40dBm/10W
CH2	750-803 MHz	40dBm/10W
CH3	869-894 MHz	40dBm/10W
CH4	925-960 MHz	40dBm/10W
CH5	1805-1880MHz	40dBm/10W
CH6	1930-1990 MHz	40dBm/10W
CH7	2110-2170 MHz	40dBm/10W
CH8	2300 - 2400 MHz	40dBm/10W
CH9	2400 - 2500 MHz	40dBm/10W
CH10	2500 - 2600 MHz	40dBm/10W
CH11	2600 - 2700 MHz	40dBm/10W
CH12	3300 - 3600 MHz	40dBm/10W
CH13	3600 - 3800 MHz	40dBm/10W
CH14	5150 - 5850 MHz	40dBm/10W
Remarks: 315/433/868/1.2G/1.5G can be customized

Total working bands	14bands for option
Each band power	10W
Total output power	140W
Power Supply	AC-110-240V
Internal Battery	For option
Battery LED Indicator	Battery consumption level LED indicator for option
1-key start	One key start for operation
Power Adjustable	Each band power can not be adjusted
Antennas	14pcs high gain Directional or Omni antennas for option
Jamming Range	about 2-20meters@-80dBm, depend on local signal strength
Dimension	460340180mm(LxWxD)
N.W	9kgs (no cover packing)
VSWR over protection and temperature over protection
Consumption Power: 420W
Storage temperature: -20ºC ~+60ºC Humidity:5%~90%

Technical Features

1.Ultrahigh frequency board-band jamming technology
2.High effective power, long jamming Range.
3. Light Weight and Friendly use
4. Built-In high gain Directional Antennas
5.Effective segmentation to block each drone controlled signals.
6.Imported chips, slow start circuit design can avoid the sparking phenomenon caused by mechanical switch, high integration and stable operation.
7.Perfect self-protection function, when the device is overheated, over output -power, standing wave and other fault alarms, the drone signal jammer will automatically cut off the failed module to avoid damage to the drone shield.

How to Use
Put the Drone jammer to point at your target drone, using the gun-shaped antenna holder (with the antennas on it), it will cut off the signal between the controller and the drone. The drone will not be able to receive any control signals or transmit any camera signals back to the controller and drop down. The drone will be officially MIA (missing in action).

Rechargeable Battery for option
Battery type: Lithium Iron Battery
Battery quantity: 1pcs
Battery capacity: 25.9V/4Ah
Battery working time: 30minutes
Battery Usage Level Indicator
Low battery warning: available

Applications:

Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Arm-y Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities etc.
