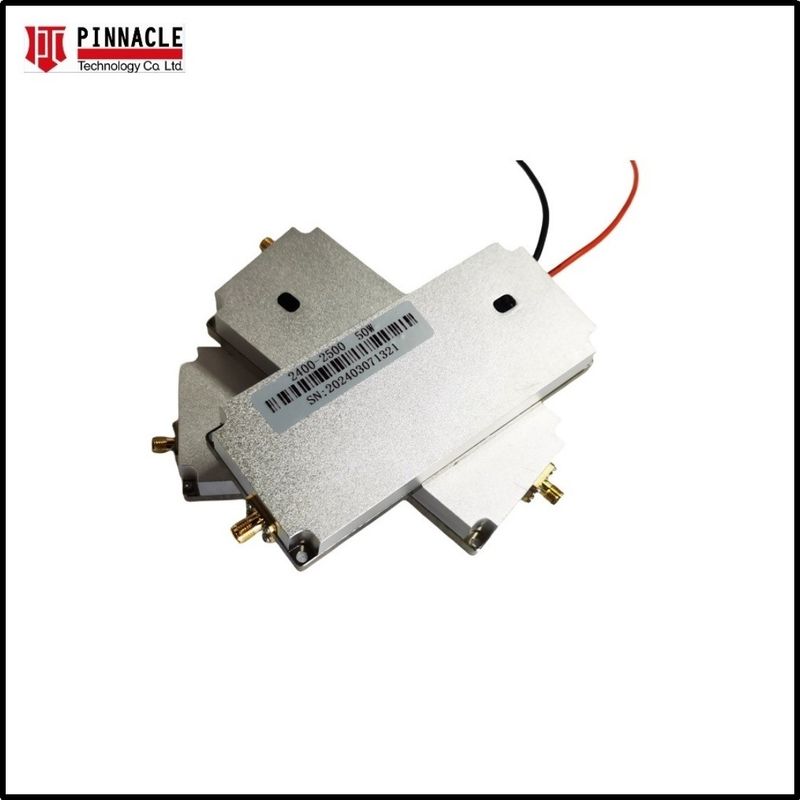

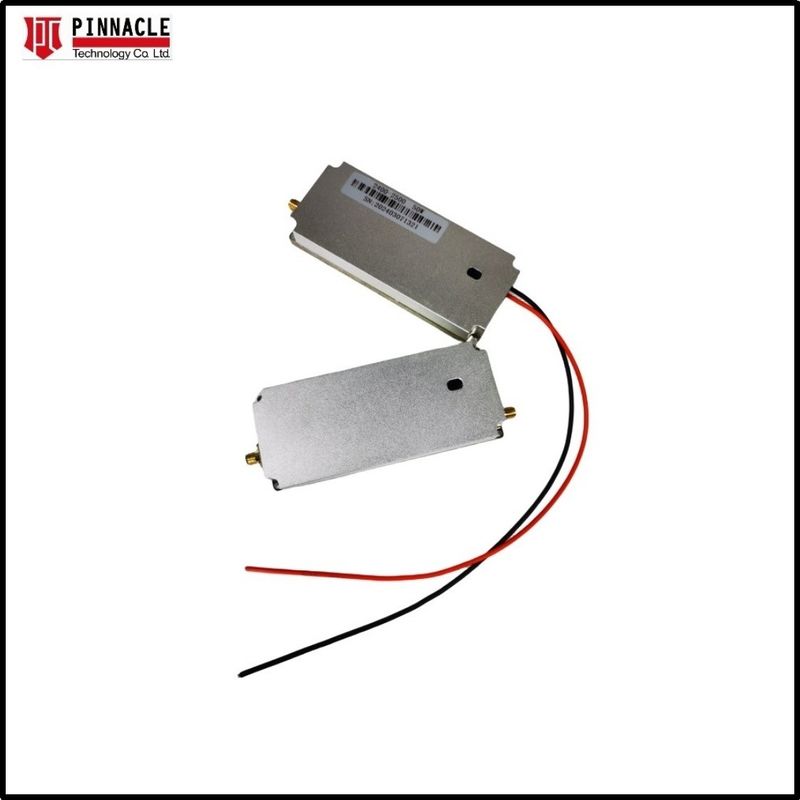

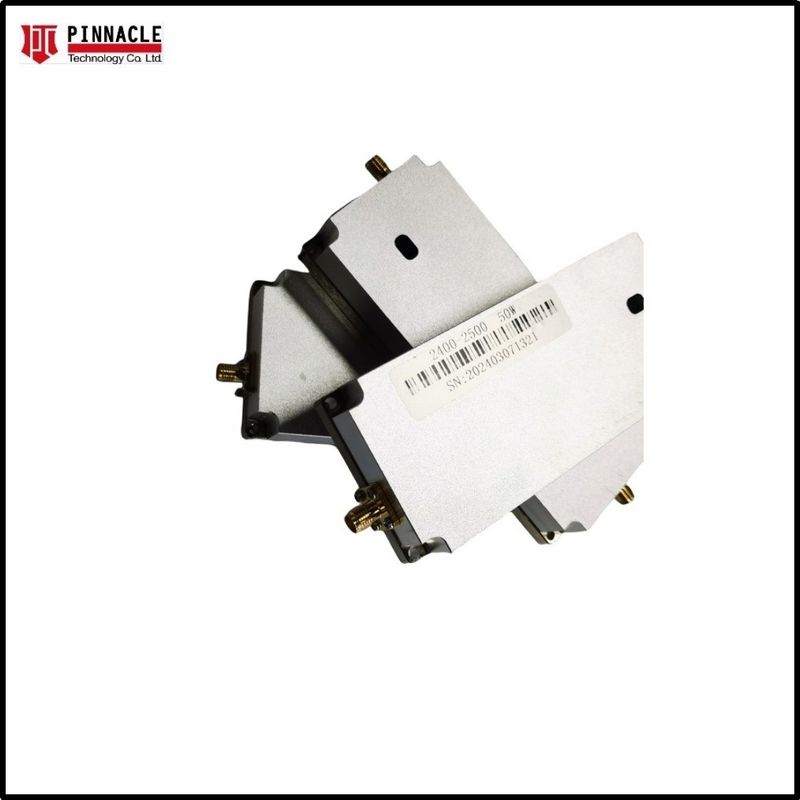

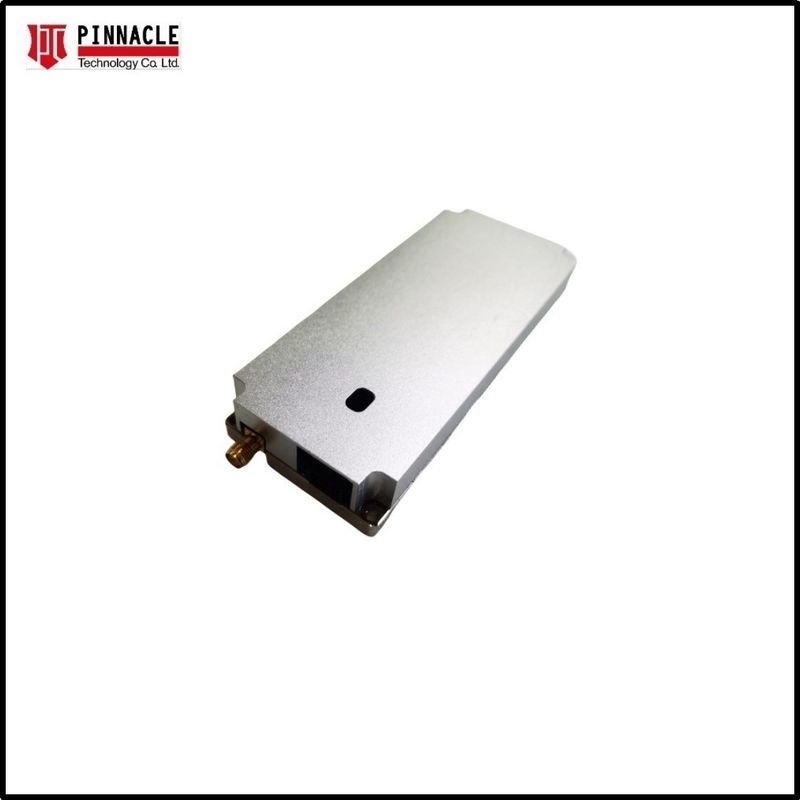

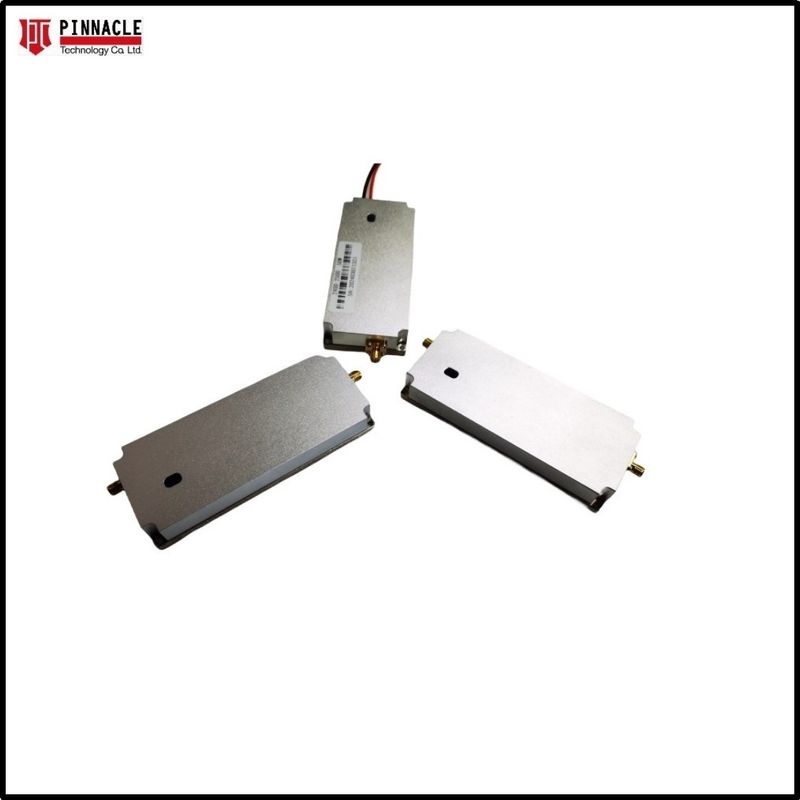

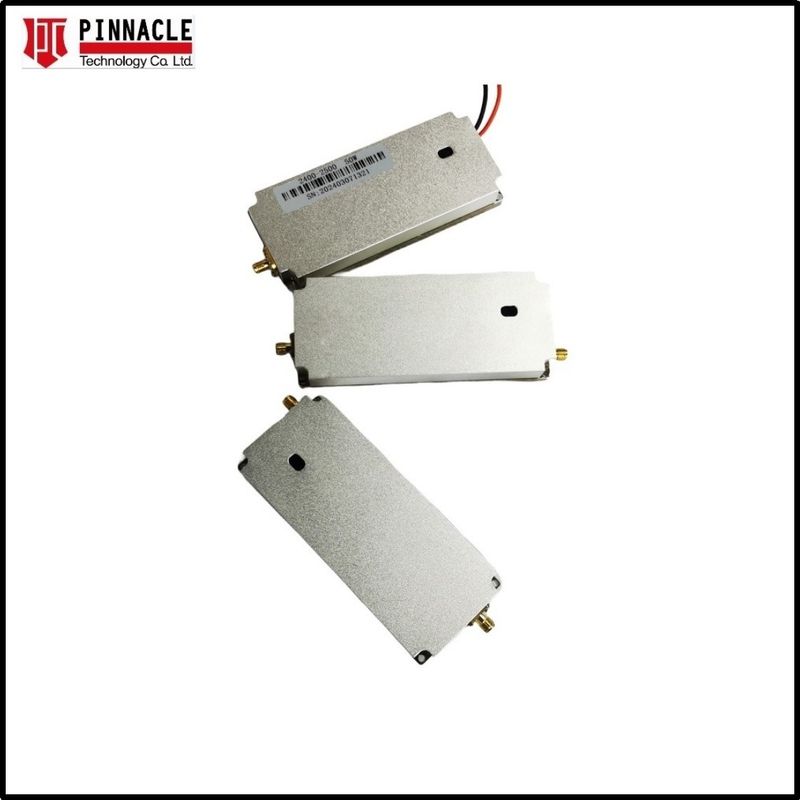

50W Anti Drone RF Power Amplifier Module GPS WiFi Remote Control Uav Uas Killer
Brand Name:
PTC
Model Number:
A50W
Place of Origin:
Shenzhen China
Certification:
ISO, GS
MOQ:
1set
Price:
Contact Us
Supply Ability:
50000
Delivery Time:
10-20days
Payment Terms:
T/T, Western Union
Standard Packaging:
Carton
Product Details
Highlight:
50W rf power amplifier module
,GPS WiFi rf power amplifier module
,Uav Uas power amplifier module
Model NO.:
PTC-A50W
Working Frequencies:
433/900/1200/1400/1500/2400/5200/5800MHz
Output Power:
50W
Working Voltage:
DC-28V
Net Weight:
50g
Dimension:
14x5x2cm
Product Description
Detailed Specifications & Features
| Specification Parameters of Amplifier | |
| Item | Technical Parameters |
| Working Band | 5725-5850MHz |
| Working Frequency | 5725-5850MHz |
| Remarks: 433mhz/800mhz/900mhz/1.2G/1/4G/1.5G/2.4G/5.2G/5.8G and so on, all can be customized | |
| Working Bandwidth | 125MHz |
| Operating Voltage | DC-28V |
| Output Power | 47±1dBm |
| Gain | 42±1dB |
| In-band flatness | ≤3.5dB |
| EVM | <5% |
| Input& Output standing | ≤2.0 |
| Dimension | 14x5x2cm |
| Net Weight | 50g |
| Operating temperature | -40~+55ºC |
| Relative humidity | 5%~95% |
| Storage Temperature | -40~+85ºC |
| RF IN | SMA |
| RF OUT | SMA |
| Power Connector | 43025-10P |
