WIFI 5.8G Jamming Broadband RF Power Amplifier Module 10W OEM
Brand Name:
PTC
Model Number:
A10W
Place of Origin:
Shenzhen China
Certification:
ISO, GS
MOQ:
1set
Price:
Contact Us
Supply Ability:
50000
Delivery Time:
10-20days
Payment Terms:
T/T, Western Union
Standard Packaging:
Carton
Product Details
Highlight:
WIFI 5.8G broadband rf power amplifier module
,10W broadband rf power amplifier module
,RF jamming module
Model NO.:
PTC-A1W
Part No.:
PTC-A50W
Output Power:
50W
Working Frequencies:
433/900/1200/1400/1500/2400/5200/5800MHz
Working Voltage:
DC-28V
Net Weight:
50g
Transport Package:
Standard Export Carton
Specification:
14x5x2cm
Trademark:
PTC
Origin:
Shenzhen China
HS Code:
8543709200
Supply Ability:
500000/Year
Package Size:
15.00cm * 12.00cm * 5.00cm
Package Gross Weight:
3.000kg
Type:
Wireless
Support Network:
Bluetooth
Information Content:
Data
Customization:
Available | Customized Request
Shipping Cost:
About Shipping Cost And Estimated Delivery Time.
Currency:
US$
Return&Refunds:
You Can Apply For A Refund Up To 30 Days After Receipt Of The Products.
Product Description
Detailed Specifications & Features

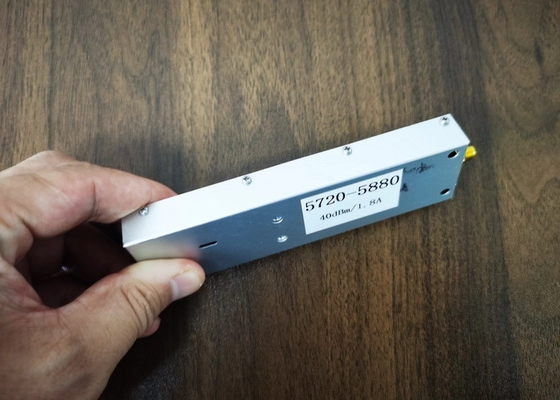

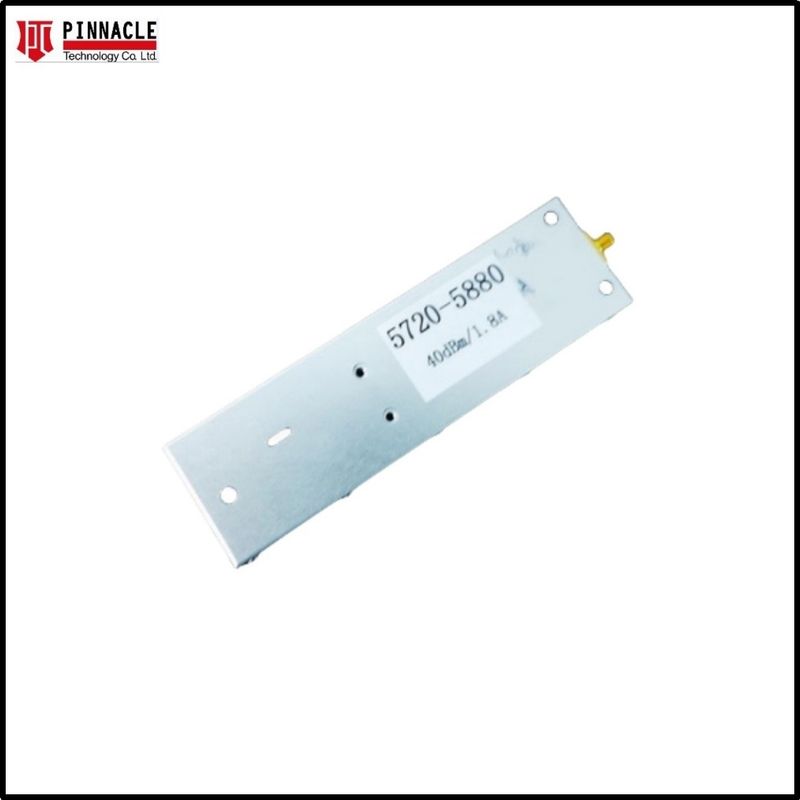

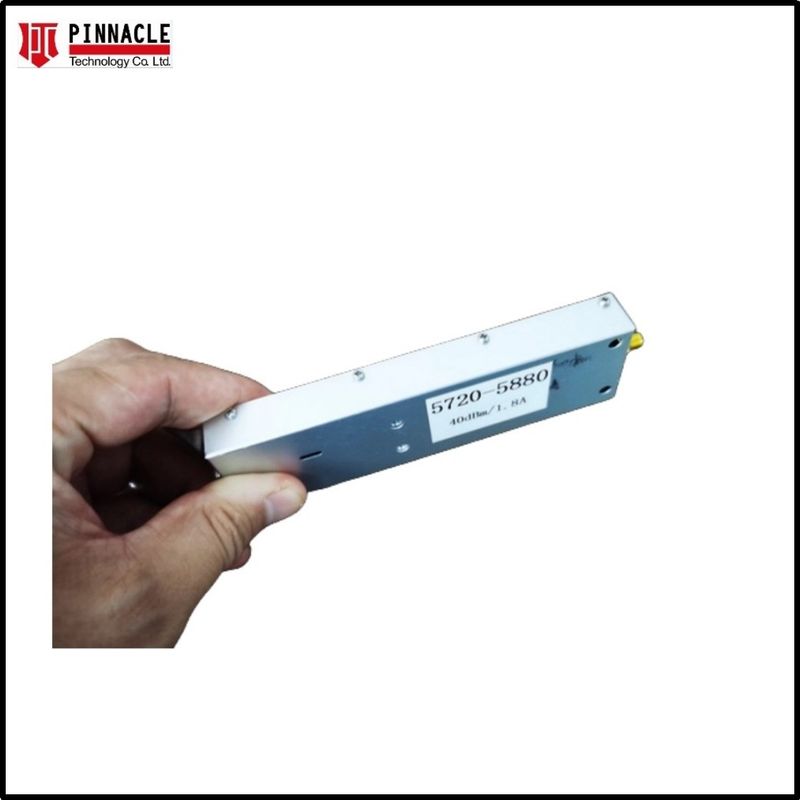

RF Power Amplifier Module
Our RF Power Amplifier Module is designed to provide efficient, high-power RF jamming capabilities in a compact form factor. With a VSWR of 1.5:1, an operating temperature range of -40ºC to +85ºC, and a weight of 100g, it is ideally suited for both indoor and outdoor applications. Output power ranges from 10 to 20W, and a SMA-F connector ensures a reliable connection.
Our RF Power Amplifier Module provides a superior RF jamming performance, making it an ideal choice for a variety of applications. It is designed to be easy to install and operate, and offers superior performance and reliability.
If you are looking for a high-performance RF power amplifier module, then look no further than our RF Power Amplifier Module. With its excellent performance and reliability, it is the perfect choice for your RF jamming needs.
| Working Frequency | 5150-5250MHZ, 5725-5850MHZ |
| Saturated power output | 10-20W |
| In-band flatness | ≤±1dB |
| VSWR | 1.5:1 |
| Operating Voltage | DC-28V |
| Working current | ≤1.2A |
| Group Delay | ≤2ns |
| Input/Output Impedance | 50Ω |
| Noise Figure | 2.5dB |
| Harmonic Suppression | ≤-30dBc |
| Power supply interface | 485 requirement, 8-PIN socket |
| RF port Connector | SMA-KFD |
| Monitoring interface | 485, 8-PIN socket |
| Amplifier size | 130*35*15mm |
| Net Weight | 100g |
| Operating temperature | -10~+55ºC |
| Relative humidity | 5%~95%,No condensation |
| Storage temperature | -25~+65ºC |
Features:
- Product Name: RF Power Amplifier Module
- Group Delay: ≤2ns
- VSWR: 1.5:1
- Operating Temperature Range: -40℃~+85℃
- Input/Output Impedance: 50Ω
- Output Power: 10W
- Special Features: RF PA Module with Signal Source, RF Jamming Module, RF PA Module with Signal Source
