Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
HPA200W

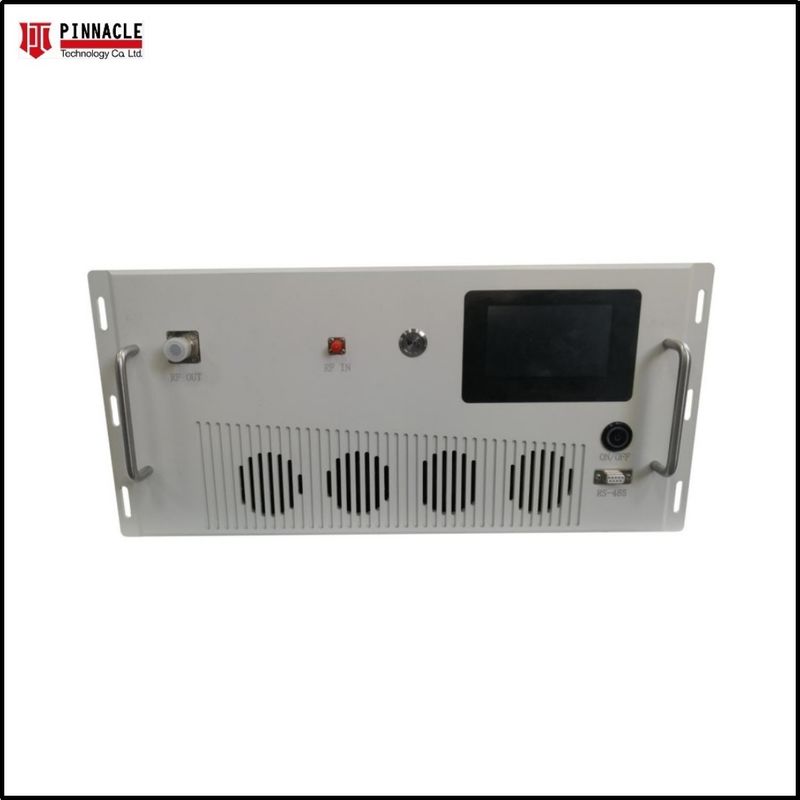

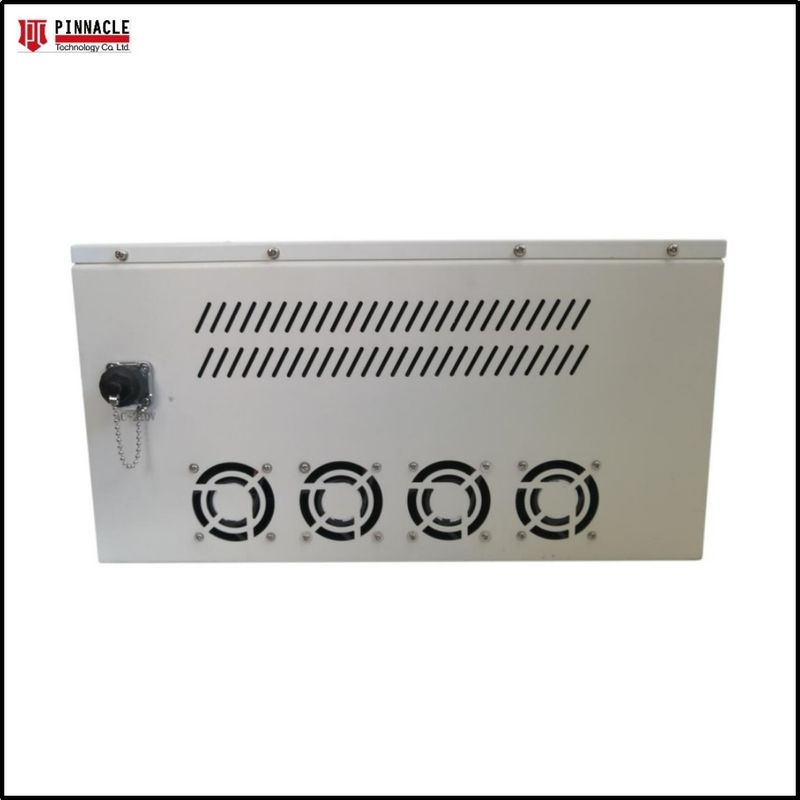

19" Standard Rack Mounted 5.6g-6g High Power 200W RF Power Amplifier Module
PTC-HPA200W is a Solid State High Power Amplifier, we customized all Amplifiers as per each client's request, this model with Ultra-wide bandwidth and high power output for option. This model designed with 19'Standard Rack & 6U Height.
ELECTRICAL SPECIFICATIONS: 50, 25°C
| Parameter | Specification | Notes | |||||
| Operating Frequency Range | 5700- 5800 MHz | ||||||
| Power Output @ Saturation | 300 Watt Typ | CW | |||||
| Power Output @ P1dB | 200 Watt Min | ||||||
| Power Gain | 54 dB Min | Pin=0dBm for normal operation | |||||
| Power Gain Flatness | 1.5-2 dB p-p Max | Constant input power | |||||
| Pulse Characteristics | Width | Duty | PRF | ||||
| 100 nS | |||||||
| Input Return Loss | -10 dB Max | Relative to 50 Ohm | |||||
| 2-Tone Intermodulation (IMD) | -30 dBc Typ | 44dBm/Tone, = 1MHz | |||||
| Noise Figure | <20 dB | ||||||
| Harmonics | <-25 dBc Typ | At rated output power | |||||
| Spurious | -60 dBc Max | Non-harmonics | |||||
| Operating Voltage | 100V-AC | ||||||
| Power Consumption | 1500 Watt Max | At rated Pout | |||||
| Input Power Protection | +20 dBm Max | <10 Sec without damage | |||||
| Load VSWR Protection | 5 : 1 Max | <1 minute at rated Pout | |||||
ENVIRONMENTAL CHARACTERISTICS |
|||||||
| Parameter | Specification | Notes | |||||
| Operating Ambient Temperature | -20 to +55°C | ||||||
| Storage Temperature | -40 to +85 °C | ||||||
| Relative Humidity | 5 to 95 % | Non-condensing | |||||
MECHANICAL SPECIFICATIONS |
|||||||
| Parameter | Specification | Notes | |||||
| Dimensions W x H x D | 620×480×530mm | 5U - Excluding handles | |||||
| Weight | 25 Kg | ||||||
| RF Connectors In / Out | Type-N Female | Front or rear panel | |||||
| AC Power / Interface | IEC 60320-C14 / 9-Pin D-Sub | Or equivalent | |||||
| Cooling | Built in Fan Cooling | Variable speed | |||||
| OPTIONAL: Digital Monitor & Control: | Ethernet RJ-45 TCP/IP, RS422/485, USB | Optional | |||||
| FWD, REV, VSWR, GAIN, ALC, V & I, TEMP | Optional GPIB Interface | Remote Bluetooth application | |||||
Class A/AB linear GaN design
Rack mounted system
Instantaneous wide bandwidth
Suitable for broadband EMI/RFI, Lab, Comm., and EW applications
Suitable for pulse and all single channel modulation standards
Built-in protection circuits
High reliability and ruggedness for mobile applications
System control supports Ethernet Software remote control
Touchscreen
