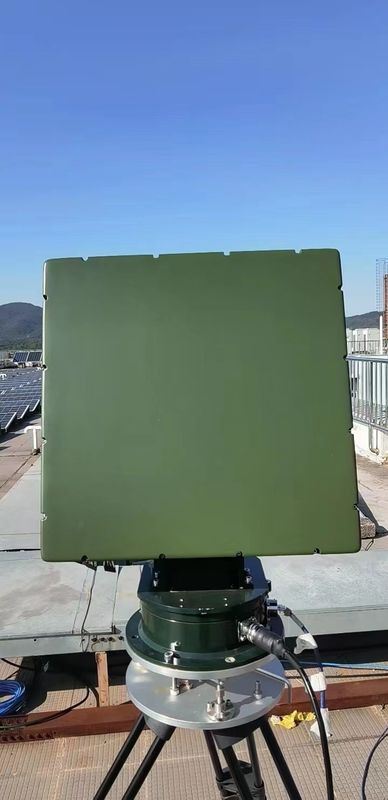

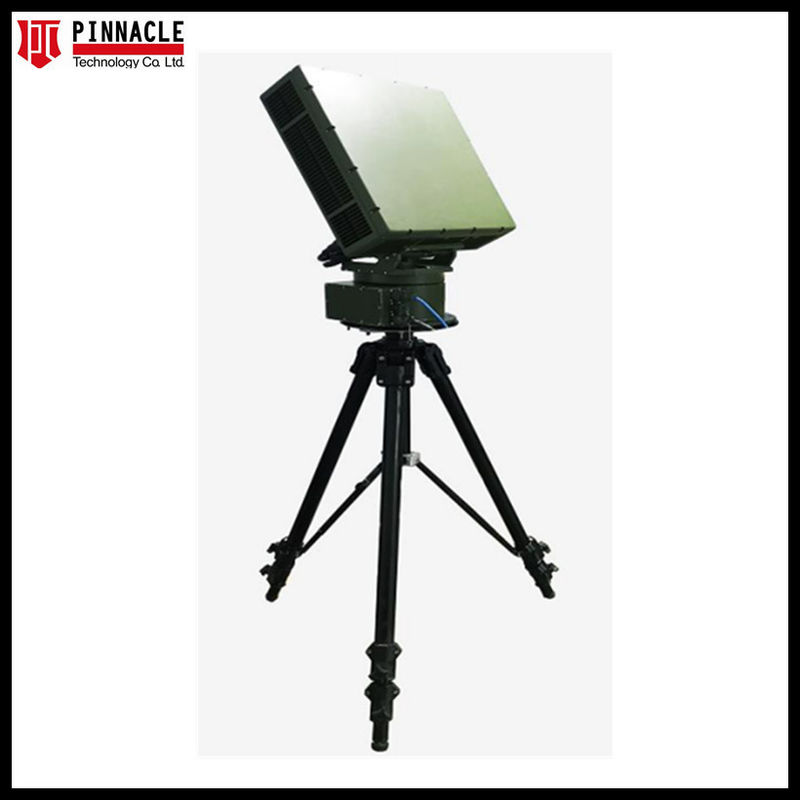

Anti Drone Detection System 3D Pulsed Doppler Radar

Brand Name: PTC
Model Number: RD-Z03
Place of Origin: Shenzhen China
Certification: ISO 9000
MOQ: 1set
Price: Contact Us
Supply Ability: 50000
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Standard Packaging: Carton
Product Details
Highlight:

DJI Phantom anti drone detection system

,

anti drone detection system Doppler Radar

,

anti radar drone System
Product Name: KU Band -Security Radar
Part Number: PTC-RD-Z03
Function: UAV Detection
Detection Range: 3km
Product Description
Detailed Specifications & Features


Product Details:


The 3-dimentional pulsed Doppler radar is a medium-range air security radars optimized for the detection of small UAVs. It can be equipped with photoelectric system, radio interference equipment, laser weapons and drone navigation deception system. Ku band all solid state T/R module and fractional Fourier transform digital signal processing technology are adopted. Adaptive clutter suppression algorithm and target matching algorithm are used for radar clutter and target echo. allows drones to be detected while reducing false alarms from birds by adaptive target matching algorithm and tracking algorithm.





Device

Item

Index

Radar

System

3-D Active Phase Array



Band

Ku band(16.1GHz~16.5GHz)



Power

≤100w



Detection range

Maximum range:3km (RCS=0.01m²)





Minimum range: 200m



Range resolution

≤10m



Azimuth resolution

≤1°



elevation resolution

≤3°



range resolution

≤20m



Antenna scanning cycle

6～10 rpm



Directional coverage

Horizontal: 360°, (≤7s)





Vertical: 42°



Scanning range

360° mechanical scanning



Weight

≤30kg



Dimension(Radar antenna)

422mm (L) x 422mm (W) x 124mm (D)



Power supply

DC 24V, 10A



Power consumption

≤120W



IP

66





Product Features and Advantages:

  • 3km UAV detection distance (DJI Phantom 4)
  • 360° scan
  • Radiation safety distance requirement compliance
  • Radiation hardening & ECCM compliance
  • 24/7, weather-proof operation


    Anti Drone Detection System 3D Pulsed Doppler Radar 0
