Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
WX-Z01
Product Details: |
|
Drone Detecting Parameters:
Detection Frequencies: 2.4G,5.8G
Detection Angle: 360°
Interception response time: ≤9s
Detection success rate: ≥95%
Detection Range: ≥5km
Detection Angle Accuracy Error (RMS): ≥15°
Minimum detection height: ≤0m
Simultaneously detect the number of drones: ≥24 drones
Drone Interference and Jamming Parameters:
Jamming Frequencies: 900M,1.5G,2.4G,5.8G
Jamming Range: ≥2km( In open area)
Interference VS communication: ≥20:1
Jamming Power: 10dBm(0.01W),20dBm(0.1W),30dBm(1W),37dBm(5W),40dBm(10W), 5 levels for adjustable
Product Features
Black and White List:
Blacklist and whitelist can be marked by the same location, the same frequencies, the same brand and the same model of drones. When the Jammer is started, the blacklist drone will be blocked, and the whitelist will not be disturbed.
Unattended Operation:
After the automatic defense is turned on, it can enter the unattended mode, and can detect and block independently.
Remote Control Identification:
Can recognize ≥12 different remote controls of non-DJI models drone at one time.
Accurate Identification:
It can accurately identify the model and unique electronic fingerprint of the drone, and can simultaneously identify the brand and corresponding ID number of ≥ 24 different drones (identity authentication).
Early Warning:
It can be detected when the drone starts up on the ground (even the drone dont take off), and it has advanced warning capabilities.
Networking of multiple radio detecting device
The system can be networked with multiple devices through the cloud server, which can observe the online/abnormal status of each device, and remotely control the device through the mobile terminal (mobile phone IPAD), including but not limited to viewing the device system operation interface and receiving alarm information, view the black and white list, and enable the defense function.
Data logging and event logging:
Automatically record the monitoring data for future review and analysis, and save it as evidence.
Drone drive away:
Transmit radio interference signals to make the UAV return and leave the control area without any interference to GPS.
Drone landing: Emit radio jamming, forcing the drone to land directly.
Visual settings control area:
Through the visual operation method, directly plot the UAV protected area.
Multi-target discovery, direction finding and positioning: It can find the directions of multiple UAVs and display the UAV angles of multiple targets on the map at the same time.
Map: The system supports online maps, offline maps, satellite maps.
Sample creation and automatic identification: The system has a built-in sample library. The samples include characteristic data of known mainstream drone manufacturers and are updated continuously in a timely manner. Automatically analyze the relevant parameters of the signal for the discovered target, automatically identify the drone type (brand, model, etc.) according to the built-in sample library, and establish a specific and unique electronic fingerprint file for the drone type according to the identified parameter results Library for post-alarm use. At the same time, it can distinguish drones of the same brand, the same model, the same location, and the same height.

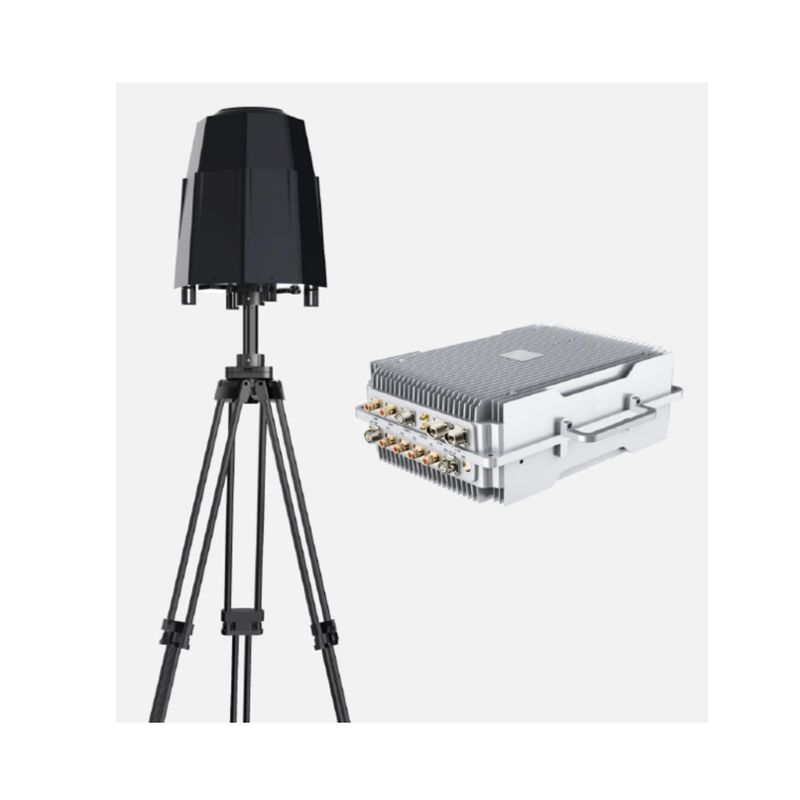

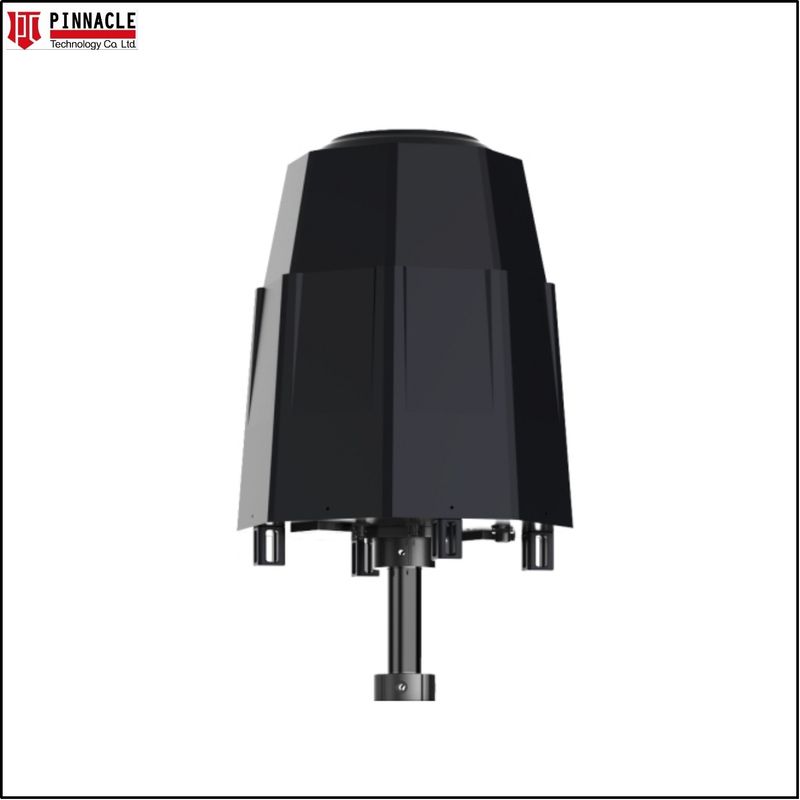

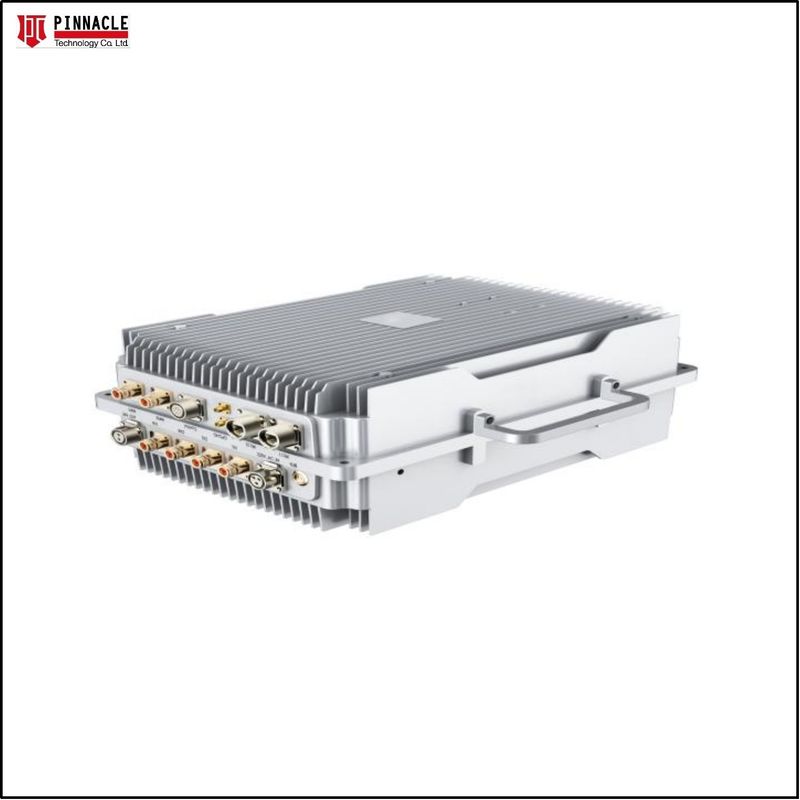

Product Picture
|
