Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable

Brand Name: PTC
Model Number: UAV-HB3
Place of Origin: Shenzhen China
Certification: ISO 9000
MOQ: 1set
Price: Contact Us
Supply Ability: 50000
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Standard Packaging: Carton
Product Details
Highlight:

Suitcase Anti Drone Jammer

,

Manpack Anti Drone Jammer

,

Suitcase portable drone jammer
Product Name: Manpack GPS 1.5g 2.4G 5.8g Drone Jammer Up To 1km
Part Number: PTC-UAV-HB3
Jamming Frequencies: 1.5g+2.4G+5.8g
Jamming Range: 50-800meters
Product Description
Detailed Specifications & Features


Product Details:

Product Description
Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0

PTC-UAV-HB3 Suitcase Counter Drone Siganl Jammer is a light weight easy-to-use drone Jamming model to defend airspace against the commercial UAVs/Drones Signals. It has been Successfully and widely in many fields.


Product Parameters
Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0
Channel Working Frequencies Output Power(±1dBm)
CH1 1550 - 1620MHz 40dBm/10W
CH2 2400 - 2500MHz 40dBm/10W
CH3 5725 - 5850MHz 40dBm/10W
Jamming Range About 800m
Built-in Battery 25.9V/4AH
Power consumption 90W
Net Weight 6Kg
Dimension(L*W*H) 370*270*150 mm
Humidity 5%-95%
Operation Temperature -20 to +50ºC
Remarks:  battery usage display on LED
Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 0


Technical Features

1.Ultrahigh frequency board-band jamming technology
2.High effective power, long jamming Range.
3. Light Weight and Friendly use
4. Built-In 2hours battery operation and high gain Directional Antennas
5.Effective segmentation to block each drone controlled signals.
6.Imported chips, slow start circuit design can avoid the sparking phenomenon caused by mechanical switch, high

   integration and stable operation.
7.Perfect self-protection function, when the device is overheated, over output -power, standing wave and other fault alarms, the drone signal jammer will automatically cut off the failed module to avoid damage to the drone shield.





How to Use:
Put the Drone jammer to point at your target drone, it will cut off the signal between the controller and the drone. The drone will not be able to receive any control signals or transmit any camera signals back to the controller and drop down. The drone will be officially MIA (missing in action).





Operation Applications:



Any sensitive locations where the drones/UAVs are not allowed to use, like Government, Oilfield, Homeland Security, Large Gathering Place, Counter-terrorism, Army Security, Airport Security, Petrochemical Industry, Sports Venues, VIP Convoy Protection, Schools and Universities etc.

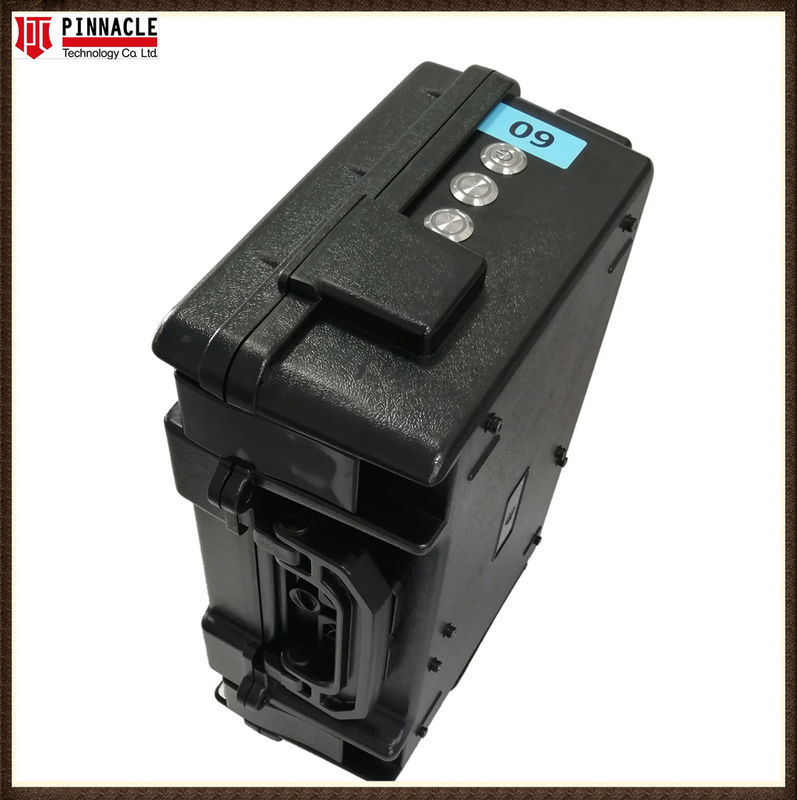

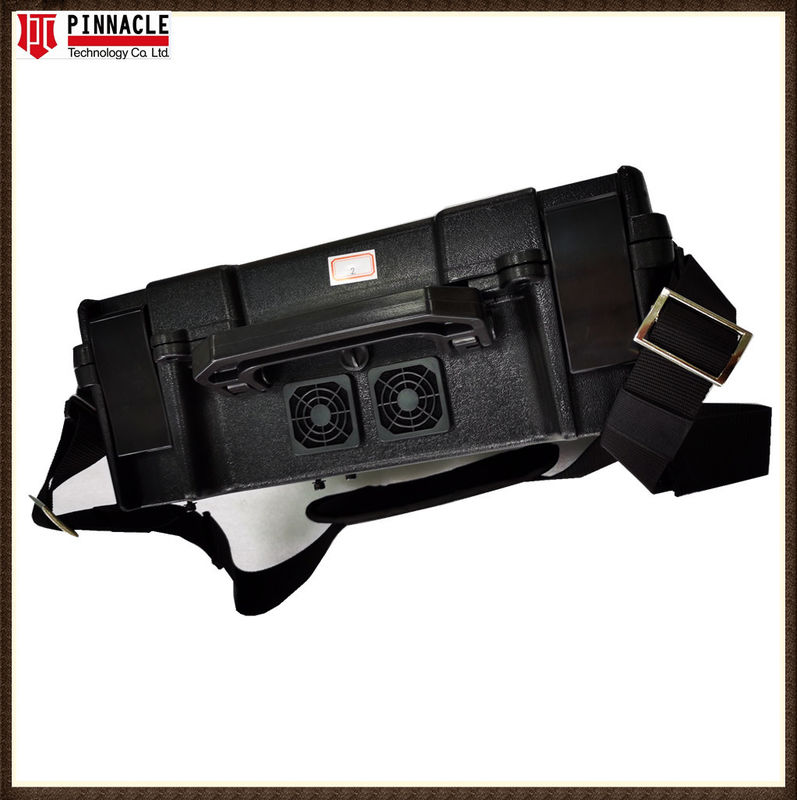

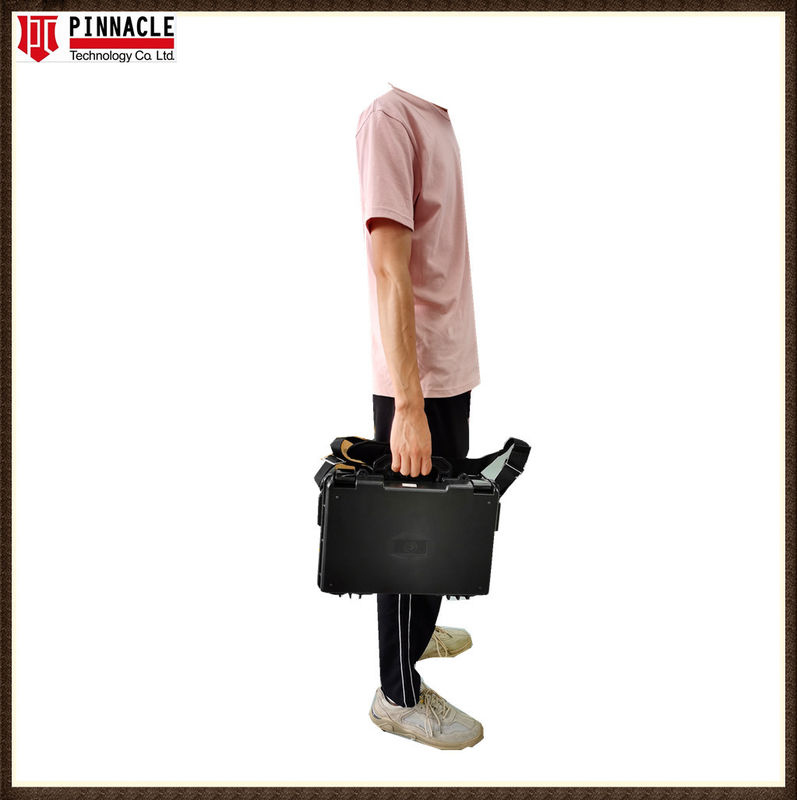

Product Image:
Suitcase Manpack GPS WIFI Anti Drone Jammer 1.5g 2.4G 5.8g Portable 10
