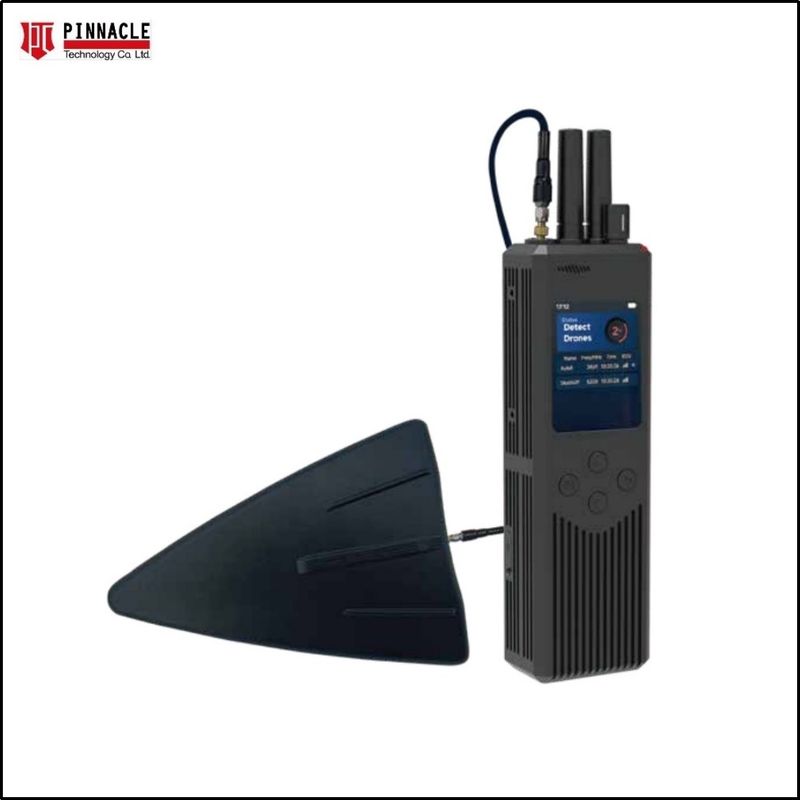

Handheld Drone Direction Finder is a powerful RF signal detector that is designed to detect and locate drones and other small remote-controlled aircrafts. It is an indispensable tool for security personnel and law enforcement when it comes to monitoring and counteracting hostile drones. This detector features a reliable and easy-to-use design that is ideal for both outdoor and indoor use. The detector also includes a Direction Finding Antenna, allowing it to accurately detect and locate drones from up to a mile away.
The Handheld Drone Direction Finder is crafted from high-grade ABS material that is rugged and durable for long-term use. It is also equipped with a 7.4V 5AH battery, providing a long-lasting power supply. Plus, the detector has an operating temperature range of -20℃ to 55℃, making it suitable for all types of weather conditions. The detector also features an LED indication and beep sound alarm that will alert users when a drone is detected.
Overall, the Handheld Drone Direction Finder is a reliable and easy-to-use device that is perfect for detecting and locating hostile drones. With its rugged design and long-lasting battery, this device is sure to provide reliable performance for years to come.
Technical Parameter
Omni-directional Detection Mode
| # | Item | Technical Parameters |
| 1 | Operating mode | Passive detection |
| 2 | Drone models supported | DJI series drones, FPVs, Xiaomi, Yuneec, Hubsan, Hubson, Powervision, Tello drones etc. |
| 3 | Working frequency | 900MHz,1.1GHz,1.2GHz,1.4GHz,2.4GHz,5.2GHz,5.8GHz |
| 4 | Detection range | 0-800 meters (urban environment, tested with DJI AIR2 as the target) |
| 5 | Azimuth | 0°~360°(omnidirectional antenna) |
| 6 | Recognition time | ≤2s |
| 7 | False alarm rate | ≤once/day(In an anechoic chamber environment) |
| 8 | Swarm detection | ≥10 concurrent drones |
Direction Finding Mode
| 1 | Operating mode | Directional passive detection |
| 2 | Action object | Some drones such as DJI (Phantom series and Yu series), Autel and Hubson |
| 3 | Working frequency | 2.4GHz and 5.8GHz |
| 4 | Detection distance | 100-2000 meters (urban environment, tested with DJI AIR2 as the target) |
| 5 | Probe azimuth | ≤±18°(Target 1km away with frequency locked) |
Mechanical Parameters
| 1 | size | L*W*H:235mm*66mm*43mm(the host) |
| 2 | weight | ≤800g(Antenna not included) |
| 3 | Battery life | ≥6 hours |
| 4 | Charging time | ≤3 hours (using the original charger) |
| 5 | Charging interface | Type-C |
Electrical Characteristics
| 1 | Overall power consumption | ≤6W |
Environmental Adaptability
| 1 | Operating temperature | -20℃~55℃ |
| 2 | degree of protection | IP54 |
Battery Parameters
| 1 | Nominal capacity | 5Ah |
| 2 | Nominal voltage | 7.4V |
| 3 | Battery type | lithium battery |
