Power Controllable Cell Phone Frequency Jammer GPS WIFI Signal Reception Blocker

Brand Name: PTC
Model Number: D20
Place of Origin: Shenzhen China
Certification: ISO 9000
MOQ: 1set
Price: Contact Us
Supply Ability: 50000
Delivery Time: 10-20days
Payment Terms: T/T, Western Union
Standard Packaging: Carton
Product Details
Highlight:

Power Controllable cell phone frequency jammer

,

WIFI Signal cell phone frequency jammer

,

WIFI Signal phone reception blocker

Part Number: PTC-D20
Working Frequencies: VHF/UHF/Cellphone Signal/wifi/GPS
Working Channel: 20CH
Output Power: 160W
Product Description
Detailed Specifications & Features
Product Details:


Product Technical Specification of PTC-D20

Working Channel

Output Port

Working Frequency

Output Power (+-1dBm)

CH1

5G-600

617-698MHz

10W

CH2

4G-700

700-803MHz

10W

CH3

4G-800

790-826MHz

10W

CH4

CDMA850

851-894MHz

10W

CH5

GSM900

920-965MHz

10W

CH6

DCS1800

1805-1880MHz

10W

CH7

PCS1900

1920-2000MHz

10W

CH8

3G-2100

2110-2180MHz

10W

CH9

4G-2300

2300-2400MHz

8W

CH10

4G-2600

2500-2690MHz

8W

CH11

5G-3300/3500

3300-3600MHz

4W

CH12

5G-3600/3800

3600-3900MHZ

4W

CH13

Wifi-2400

2400-2500MHz

8W

CH14

Wifi-5800

5100-5900MHz

4W

CH15

GPS-L1

1560-1620MHz

10W

CH16

GPS-L2/L3/L4/L5

1170-1390MHz

10W

CH17

VHF/LOJACK

135-175MHz

5W

CH18

RC-315

315MHz

5W

CH19

RC-433

433-434MHz

5W

CH20

RC-868

868MHz

5W

Working frequency: 20 frequencies for option

Total output Power: 156W

Power Supply: AC-110~240V to DC-24V

Each band power can be adjustable by Knobs

External Battery working time: about 60minutes

Support 2-5meters with IR remote control to turn ON/OFF Jammer, from Max power to 0(off)

Dimensions:  440x 250x 90 mm(not Include Antenna)

N.W: appr.8kgs

Omni Antenna: 380mm length

Jamming range: 2-60 meters, Still depends on the strength signal in given area

All frequency can be mixed flexible

Each channel module can be switch on/off and work independently

Warranty: 1 year from delivery date





Advantage:

l All in One with 20 frequencies high power desktop designed for blocking all mobile signals 2G/3/4G/5G/+WIFI+GPS+Remote control signals.

l Each band power can be adjustable by Knobs

l Support IR remote control

l Support external battery with 1hours operation for option

Each channel module With Knob switch design, for turning on/off any signal band freely and adjust the power

l Aluminum housing is high safety and good heat dissipating

Built-in Smart cooling fans.

l Easy operation and installation, non-stop working

l High/Low temperature over protection, VSWR over protection

l Block down link BCC channel only, no any interference with base stations

l High frequency stability with PLL circuit design

l Special modulating scheme improved jamming efficiency





Application

Prisons, , government, Oil and Gas Storage Facilities and fields, Churches, Theatres, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.



Product Image:

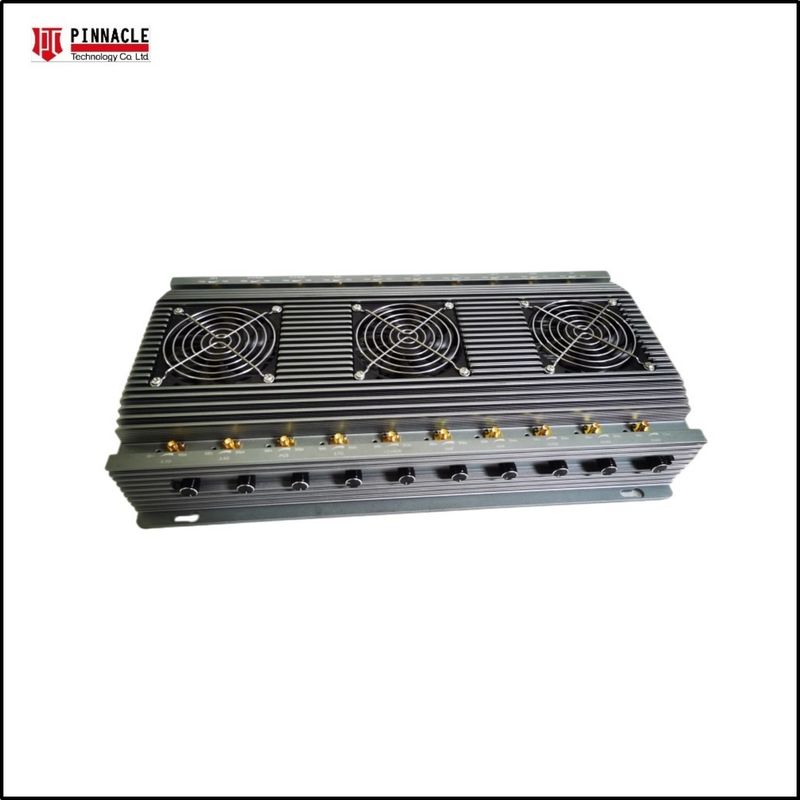

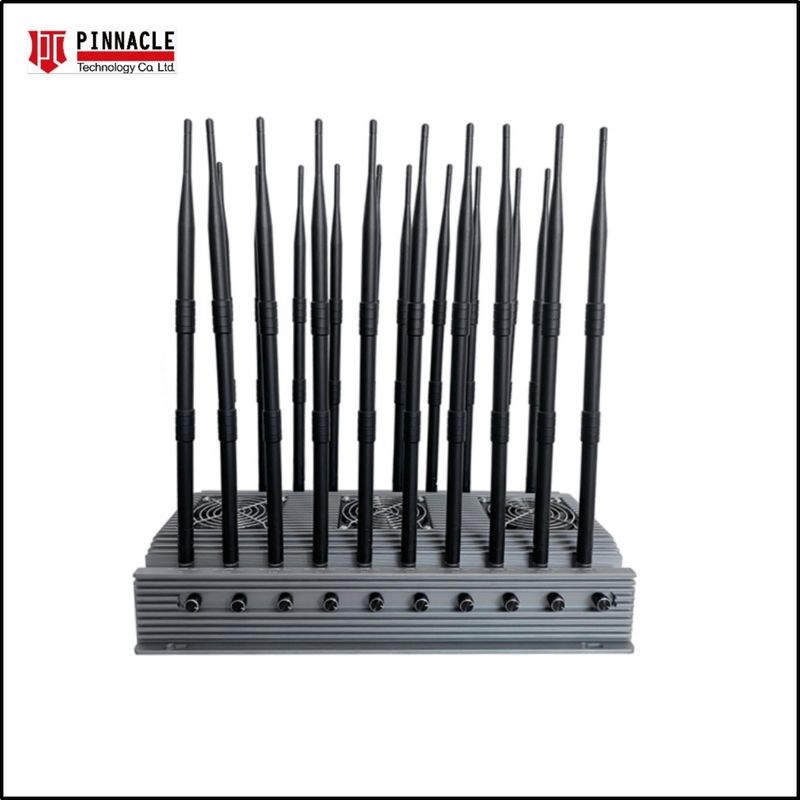

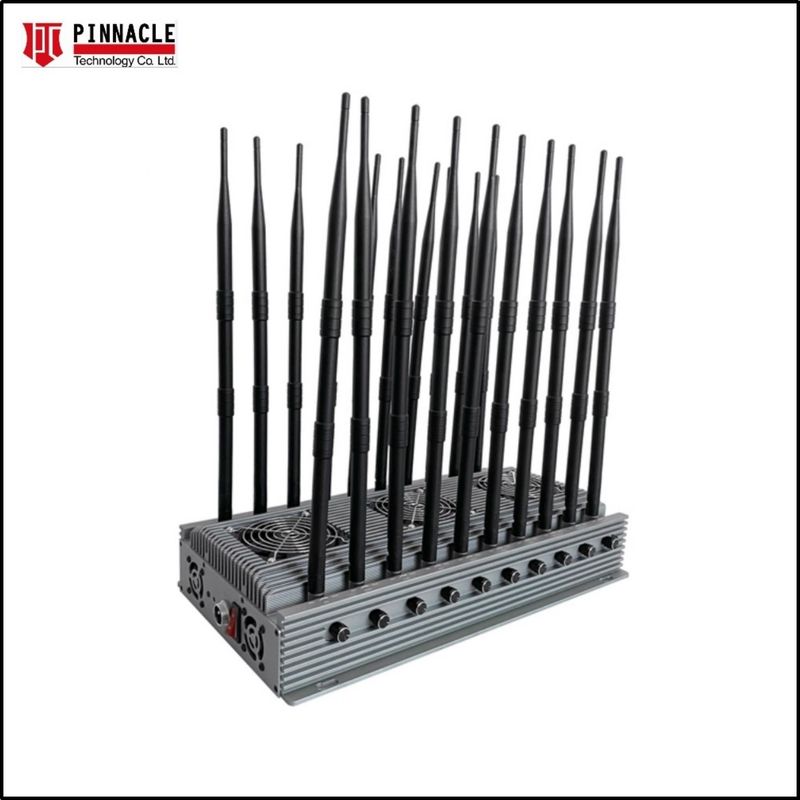

Power Controllable Cell Phone Frequency Jammer GPS WIFI Signal Reception Blocker 0
