Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
H12-12W

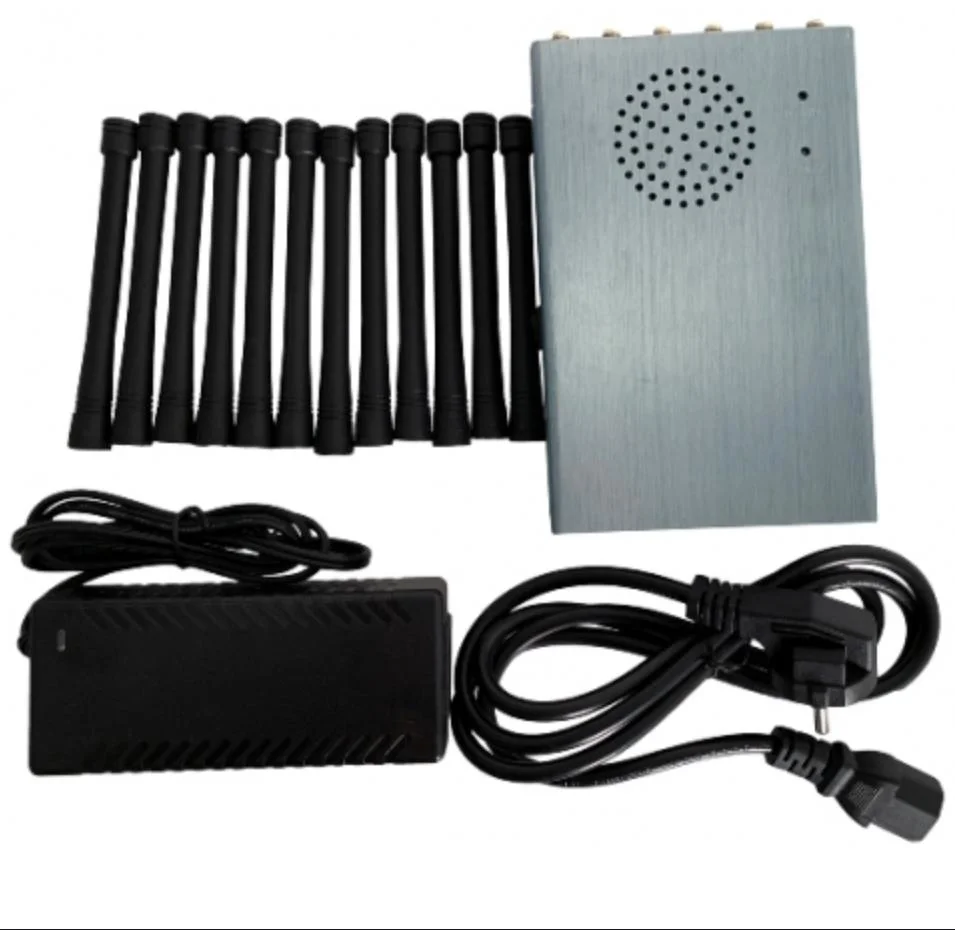

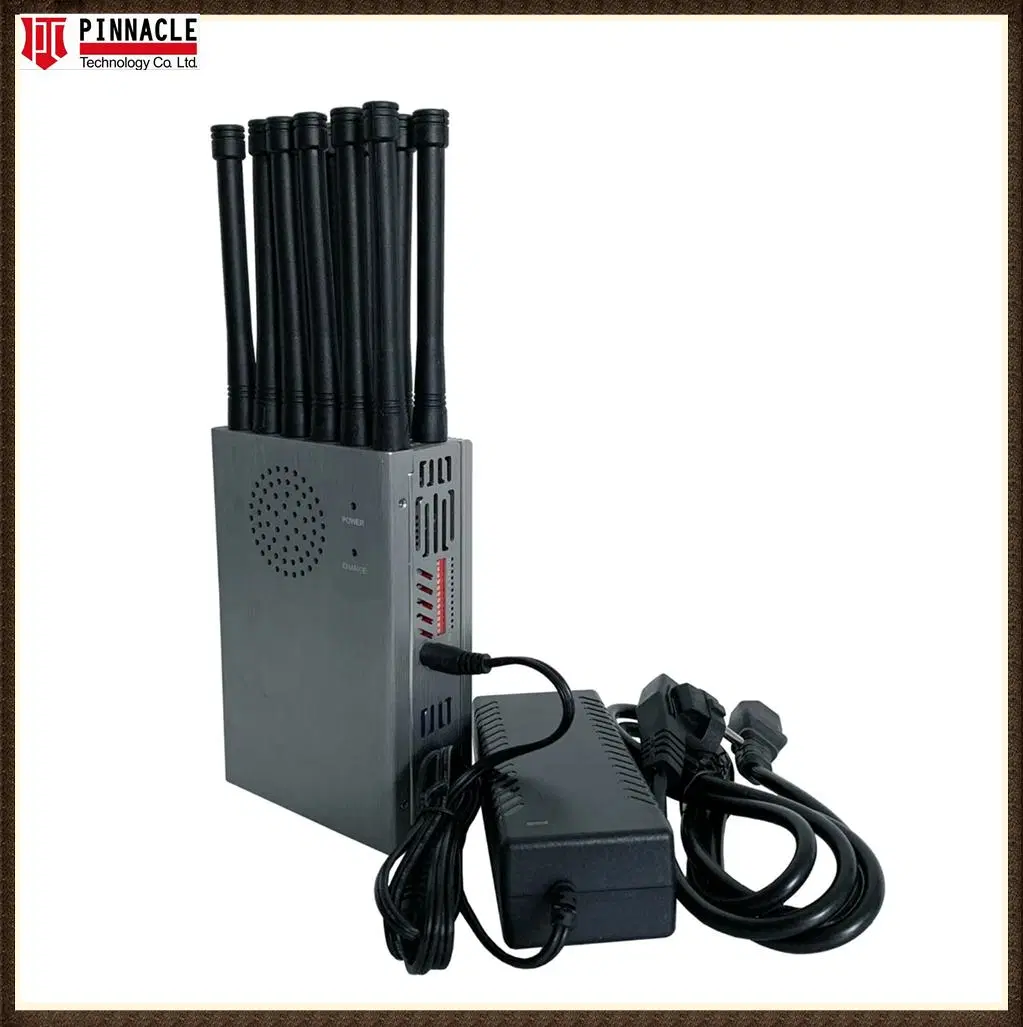

The all-in-one design portable wireless signal Jammer, 12 bands jamming all types of Android phones, Tablets, Smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G, and CDMA 450Mhz, Block LOJACK GPS, Wi-Fi, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868 and so on.
| Key technical specifications: PTC-H12-12W | |||
| Channel | Output port | Frequency range | Output Power (+/- 3dBm) |
| 1 | 4G LTE | 720-805MHz or 790-830MHz |
30dBm/1W |
| 2 | CDMA850 | 850-894MHz | 30dBm/1W |
| 3 | GSM900 | 925-960MHz | 30dBm/1W |
| 4 | GSM1800 | 1805-1880MHz | 30dBm/1W |
| 5 | PCS | 1930-1990MHz | 30dBm/1W |
| 6 | 3G | 2110-2170MHz | 30dBm/1W |
| 7 | 4G 2300 | 2300-2400MHz | 30dBm/1W |
| 8 | 4G 2600 | 2500-2690MHz | 30dBm/1W |
| 9 | 5G 3400 | 3400-3600MHz | 30dBm/1W |
| 10 | Wifi 2.4g | 2400-2484MHz | 30dBm/1W |
| 11 | Wifi 5.8G | 5100-5800MHz | 30dBm/1W |
| 12 | GPS L1 + Glonass | 1570-1620MHz | 30dBm/1W |
| Power supply: adapter 50 to 60Hz AC (110V AC/12V DC) Car Charger:DC12V IN | |||
| Dimensions: (length ,width, height) 160x 105x 50 mm (not include antenna) Length of antenna :120mm Gain:2.0dbi |
|||
| Packing size: 25*22*8.5cm Net weight: 1.5kg Gross weight: 2.5kg | |||
| Total working Channels: 12 frequencies for option Total power: 12W Jamming range: (2-20) meters at -85dBm Still depends on the strength signal in given area Built-in battery:7.4V/12000mAh Continue working: about 2.0+ hours |
|||
| Warranty: 1 year from delivery date | |||

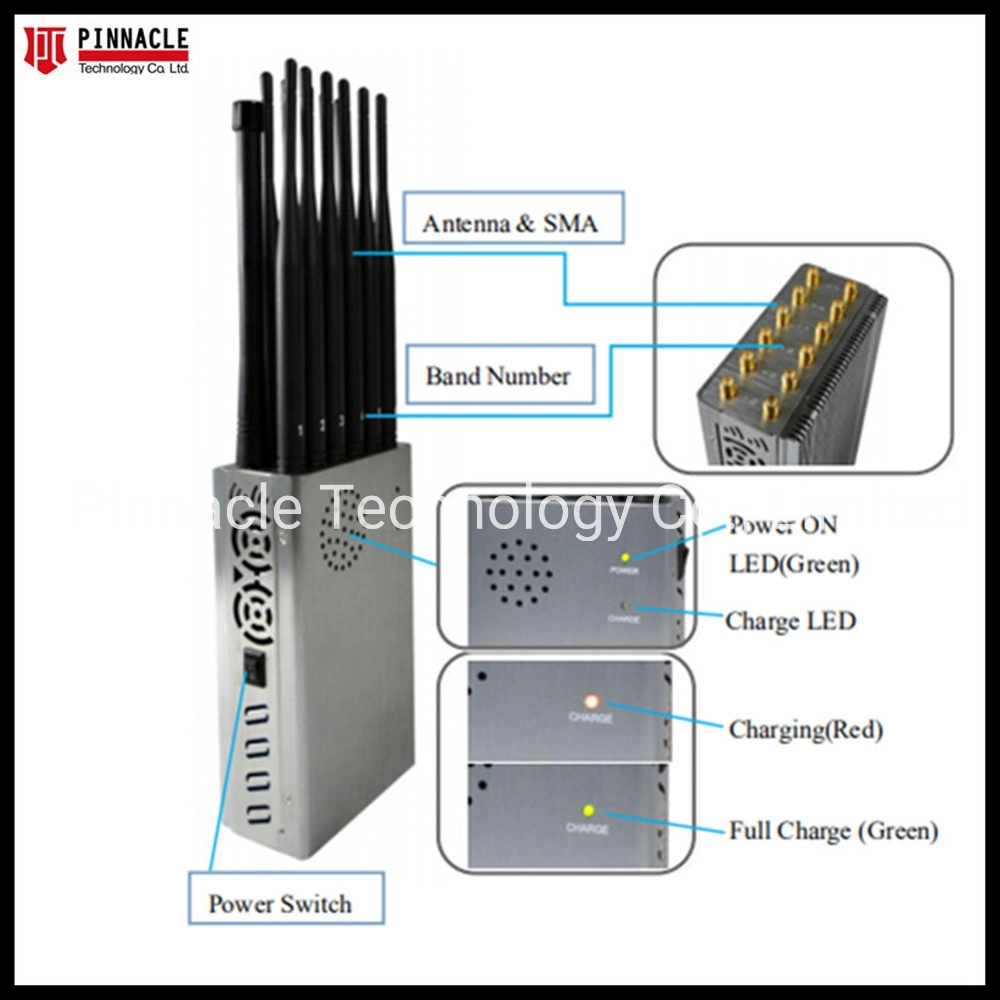

| Each band module can be switch on/off and work separately LED Indicator for each band working The Jammer can work during Charging |
|||
World first handheld design 12 all-in-one frequencies blocking all cell phone signals, LOJACK GPS, Wi-Fi, RF signals
12 watt high output power and high gain antennas, Jamming range 2 to 30 meters (at-85dBm, depends on signal strength in given area)

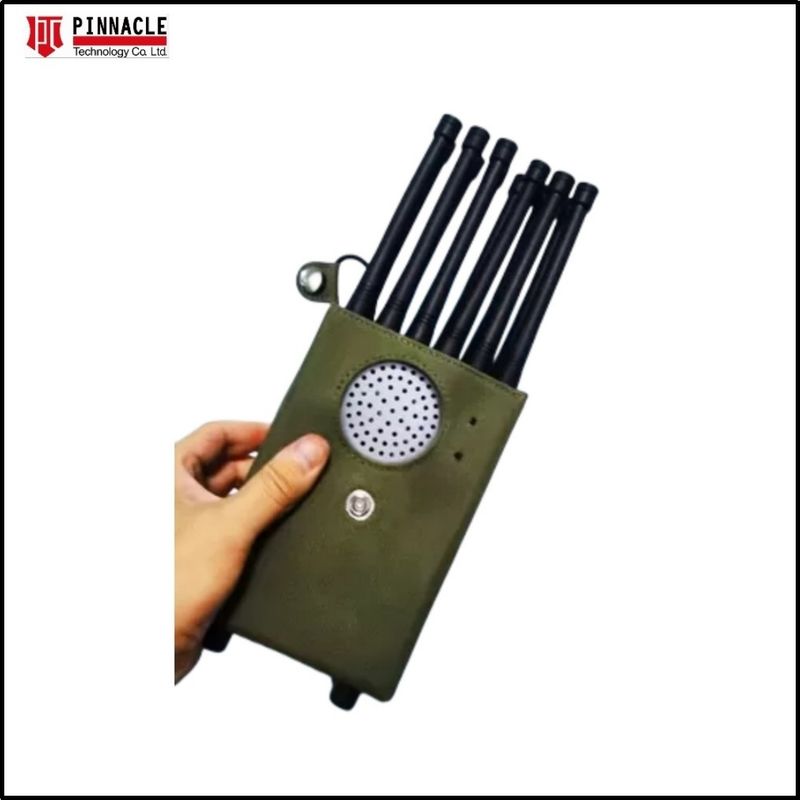

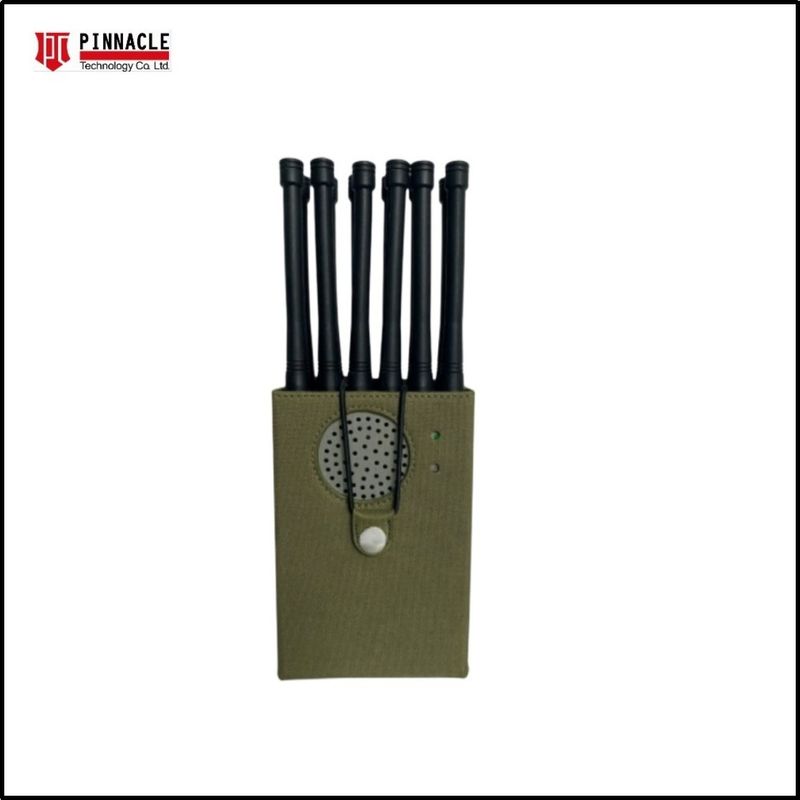

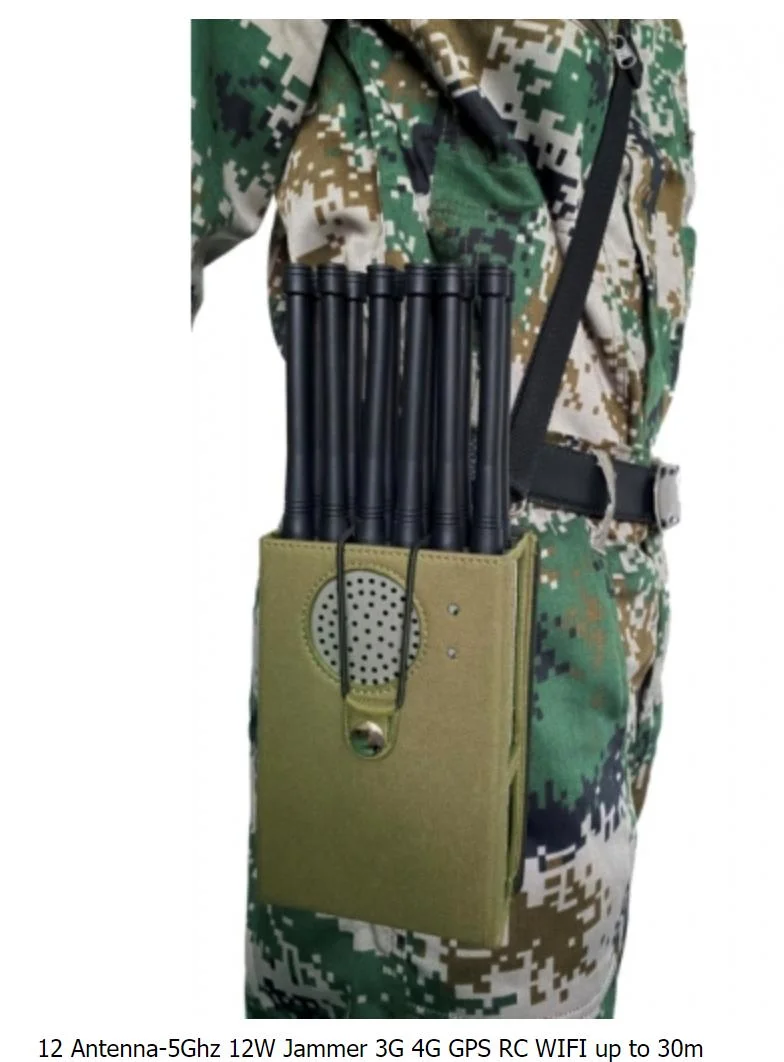

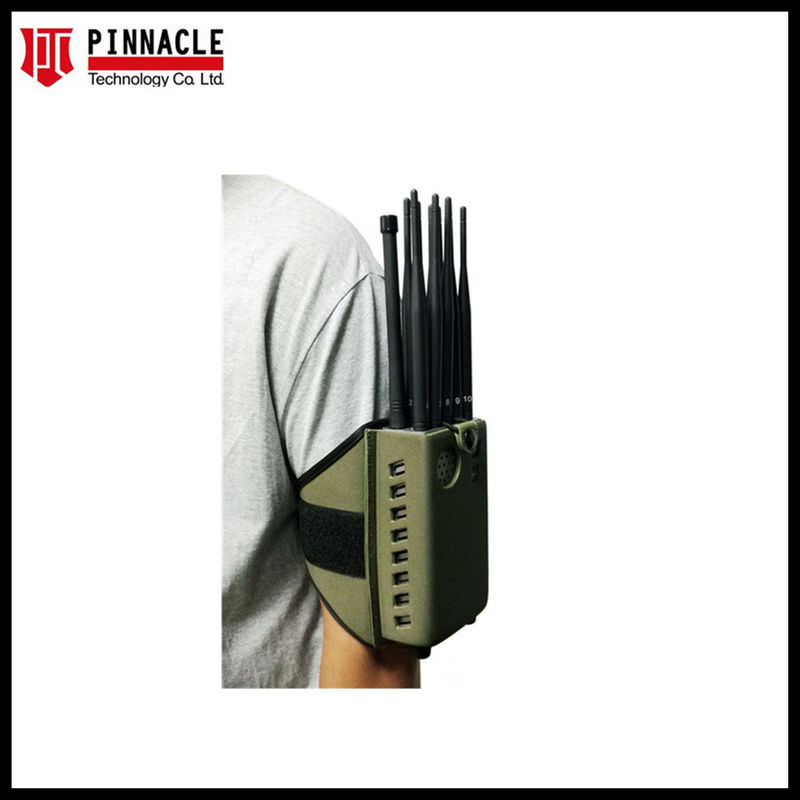

with Green Cover Hang or wear on the arm or belt, easy to carry on, handheld
Good cooling system with cooling fans inside and bigger hot sink
With DIP switch, can turn on/off any signal band without affect other bands
With car charger, can used in car directly, 12V DC/AC power supply is also available
With built-in bigger battery, can work more than (2.0+ hours) 120 minutes
Use the world's most safety high-capacity battery, can be repeated charging
