10W Power Radio Handheld Signal Jammer 3400MHz-3600MHz

10W Handheld Signal Jammer

3600MHz Handheld Signal Jammer

10W military radio jammer

Place of Origin:

Shenzhen China

Brand Name:

PTC

Certification:

ISO 9000

Model Number:

H10

Request A Quote

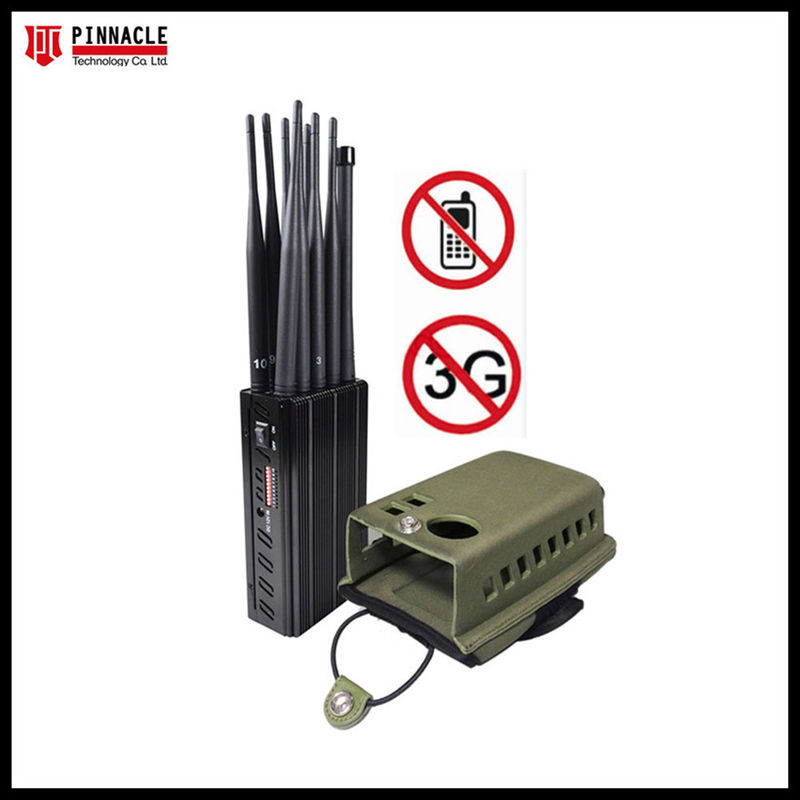

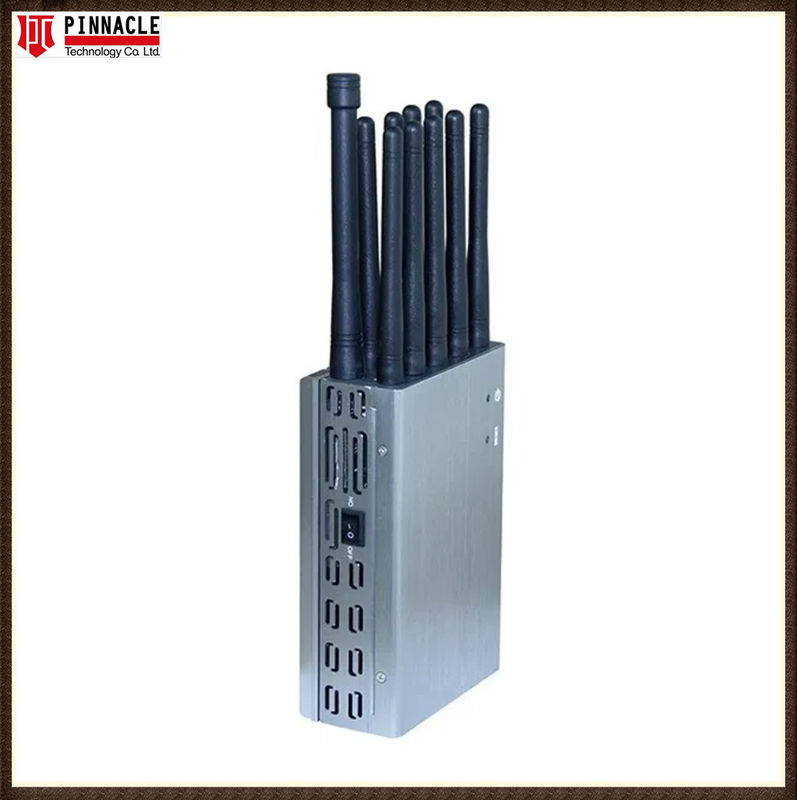

10W Power Radio Handheld Signal Jammer 3400MHz-3600MHz

Product Details

Part Number:

PTC-H10

Working Channel:

10 Bands

Working Frequencies:

2g+3g+4g+5g+wifi Signals

Jamming Range:

2-30meters

Highlight:

10W Handheld Signal Jammer

3600MHz Handheld Signal Jammer

10W military radio jammer

Payment & Shipping Terms

Minimum Order Quantity

1set

Price

Packaging Details

Carton

Delivery Time

10-20days

Payment Terms

T/T, Western Union

Supply Ability

50000

12 Antenna Handheld Signal Jammer Scrambler CDMA GSM PCS 3G LTE UHF VHF Remote Control

Get Best Price

10W Power Radio Handheld Signal Jammer 3400MHz-3600MHz

Get Best Price

GPS GSM Bluetooth Handheld Signal Jammer WiFi 2.4G 5.8g Mobile Phone Jamming Device

Get Best Price

12V 3 Antennas Military Cellphone Signal Jammers 315 433 868 mhz

Get Best Price

86-755-86239323

Contact Now

Product Description

Product Description

This All-in-one design portable wireless signal Jammer, 10 bands jamming all types of Android phones, Tablets, smart Phones, iPhones, Win phones etc. that use 2G, 3G, 4G, and CDMA 450Mhz, Block LOJACK GPS, Wi-Fi, Walkie-Talkie UHF/VHF and RF signals like 315, 433, 868mhz.

10W Power Radio Handheld Signal Jammer 3400MHz-3600MHz 0

Basic Specifications

Model:PTC- H10

Color: Silver

Jamming Frequencies: 10 bands for option
Output Power:Total 10W,1W each band
Jamming Range:2-30meters
Power Supply:AC110-240V to DC12V
Cooling System:High efficiency aluminum alloy radiator
Build-in 2 cooling fans
Built-in battery:7.4V/8000mAh
working time: more than 2.0+ hours
Product Size:145x 98x 50 mm(not Include Antenna)
Length of antenna :120mm Gain:2.0dbi
Product Weight: appr.1.3kg (N.W)
Package Contents:Jammer Host x 1, AC Charger x1,antenna x10,Car Charger x1,Cover x1

Key technical specifications: PTC-H10
Channel	Output port	Frequency range	Output Power (+/- 3dBm)
1	4G LTE	720-805MHz or 790-830MHz	30dBm/1W
2	CDMA850	850-894MHz	30dBm/1W
3	GSM900	925-960MHz	30dBm/1W
4	GSM1800	1805-1880MHz	30dBm/1W
5	PCS	1930-1990MHz	30dBm/1W
6	3G	2110-2170MHz	30dBm/1W
7	4G 2300	2300-2400MHz	30dBm/1W
8	4G 2600	2500-2690MHz	30dBm/1W
9	Wifi-2.4g	2400-2483MHz	30dBm/1W
10	5G 3400	3400-3800MHz	30dBm/1W
Power supply: adapter 50 to 60Hz AC (110V AC/12V DC) Car Charger:DC12V IN
Dimensions: (length ,width, height) 1459850mm (not include antenna) Length of antenna :120mm Gain:2.0dbi
Packing size: 25228.5cm Net weight: 1.3kg Gross weight: 2kg
Total working Channels: 10 frequencies for option Total power: 10W Jamming range: (2-20) meters at -85dBm Still depends on the strength signal in given area Built-in battery:7.4V/10000mAh Continue working: more than 2.0+ hours
Warranty: 1 year from delivery date
Each band module can be switch on/off and work separately LED Indicator for each band working The Jammer can work during Charging

Handheld design 10 all-in-one frequencies blocking all cell phone signals, LOJACK GPS, Wi-Fi, RF signals 7watt high output power and high gain antennas, Jamming range 2 to 20 meters (at-85dBm, depends on signal strength in given area)

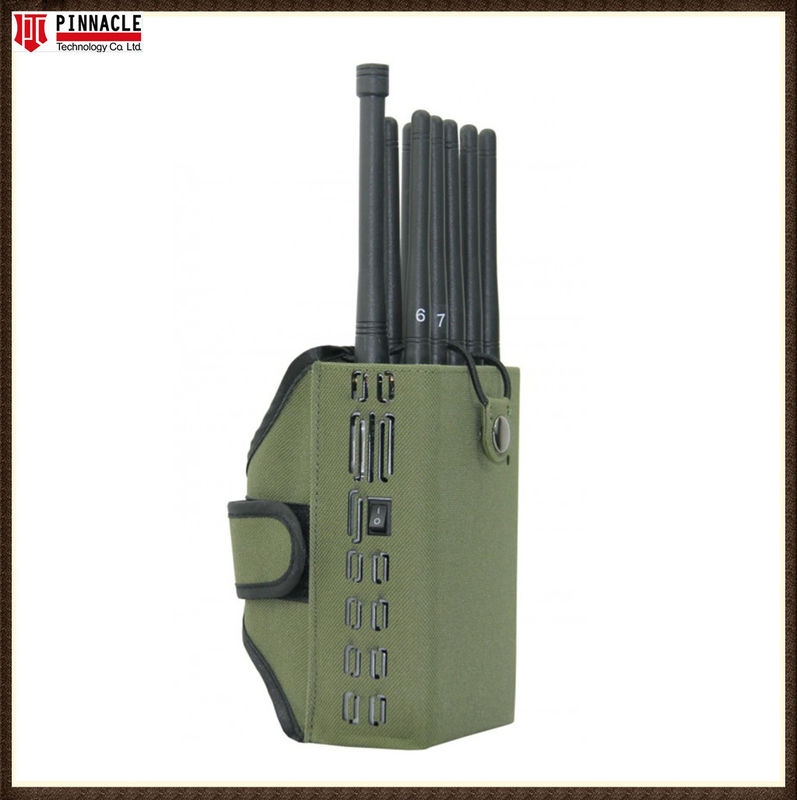

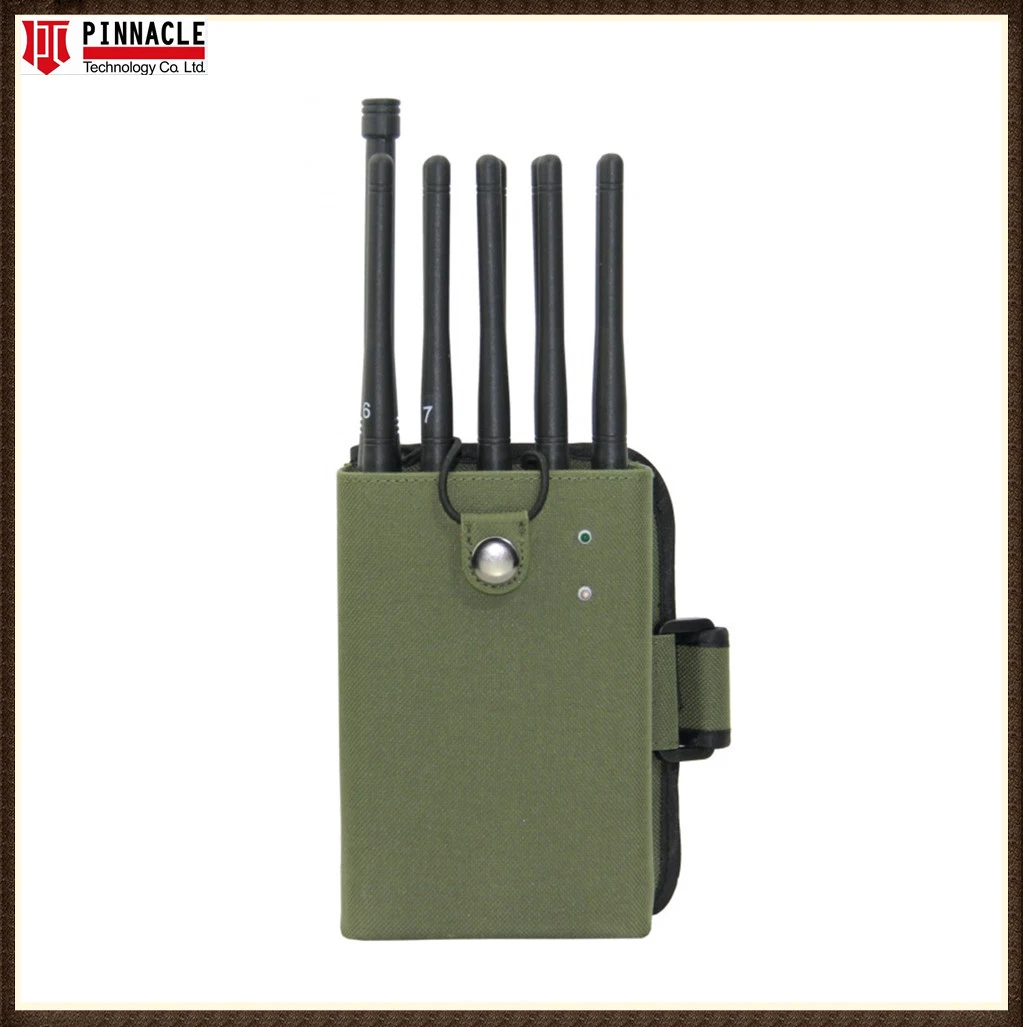

With Nylon Cover Hang or wear on the arm or belt, easy to carry on, handheld design

Good cooling system with cooling fans inside and bigger hot sink

With DIP switch, can turn on/off any signal band without affect other bands

With car charger, can used in car directly, 12V DC/AC power supply is also available

With built-in bigger battery, can work more than (2.0+ hours) 120 minutes: use the world's most safety

high-capacity battery, can be repeated charging

OEM Customized Service

Customized for special frequency band , Wi-Fi5G 3.6GHz, Wireless Camera 1.2GHz etc

Silkscreen OEM service can be offered

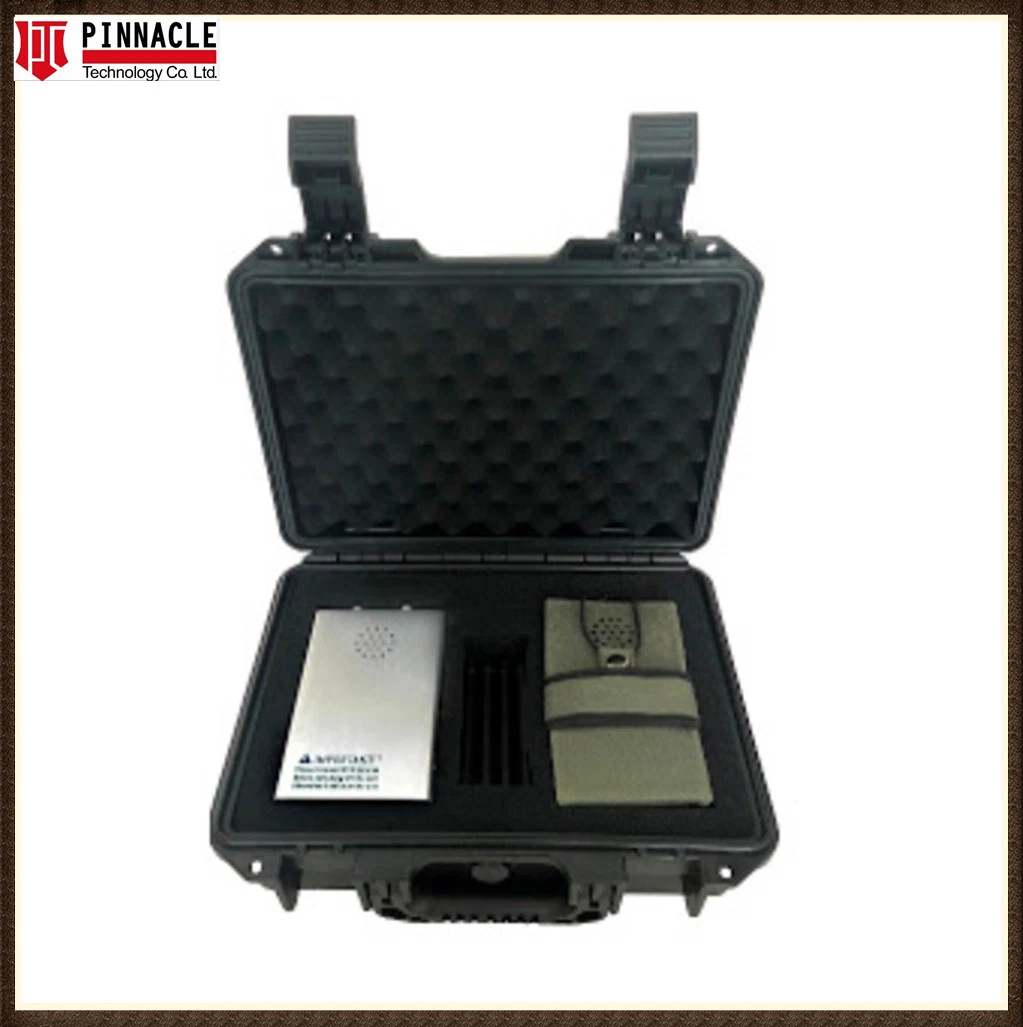

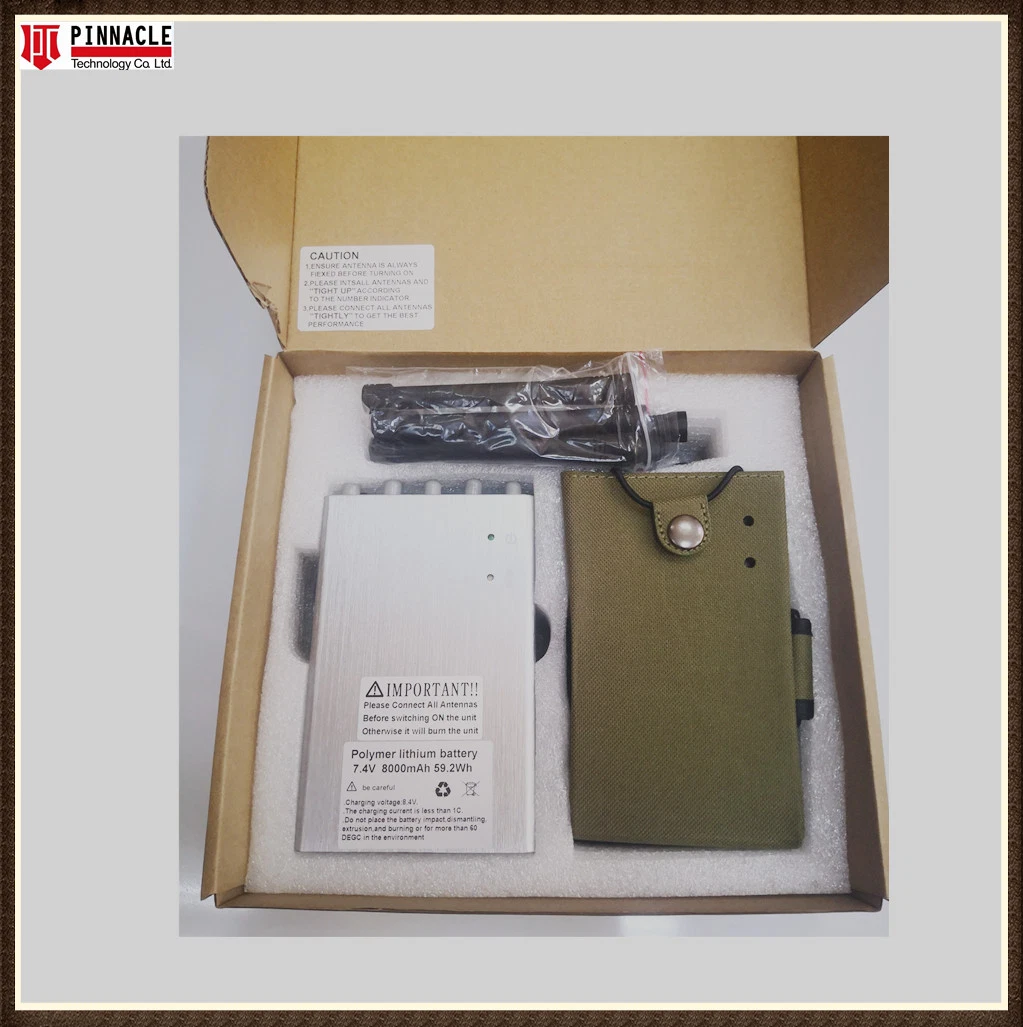

There are 2 Packing for option

10W Power Radio Handheld Signal Jammer 3400MHz-3600MHz 1

10W Power Radio Handheld Signal Jammer 3400MHz-3600MHz 2

10W Power Radio Handheld Signal Jammer 3400MHz-3600MHz 3

Application

It can be applied at meeting rooms, conference rooms, museums, galleries, theatres, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security

For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.

2 packing for option

10W Power Radio Handheld Signal Jammer 3400MHz-3600MHz 4

10W Power Radio Handheld Signal Jammer 3400MHz-3600MHz 5
