Handheld 28-Antennas Full Band 5G/4G/WiFi/GPS Signal Jammer
Brand Name:
PTC
Model Number:
PTC-H28
Place of Origin:
Shenzhen China
Certification:
ISO 9000
MOQ:
1Unit
Price:
Contact Us
Supply Ability:
50000
Delivery Time:
10-20days
Payment Terms:
Western Union, MoneyGram, T/T
Standard Packaging:
Carton, wooden packing
Product Details
Highlight:
Handheld 5G signal jammer
,Portable WiFi GPS jammer
,28-antenna full band jammer
Part Number:
PTC-H28
Working Target:
28 Bands FM Radio Wi-Fi6E Wi-Fi2.4G Wi-Fi5G GPS LOJACK LORA UHF VHF 433 315 868 CDMA GSM 3G 4G 5G Cell Phone Signal
Jamming Distance:
2-20meters
Battery Running:
Appr. 80minutes
Power Supply:
AC-110-240V, DC-12V
Lcd Display:
Battery Capacity LCD Display
Product Description
Detailed Specifications & Features
Handheld 28-Antennas Full Band 5G/4G/WiFi/GPS Signal Jammer
Product Overview
Advanced 28-band wireless signal jammer featuring an all-in-one design with 28 antennas and nylon cover for portability. Effectively jams all types of Android phones, tablets, smartphones, iPhones, Windows phones, and other devices by shielding GSM, 3G, 4G, 5G, CDMA 450MHz, GPS, Glonass, Beidou, Wi-Fi 2.4G, Wi-Fi 5G, Wi-Fi 6E, Walkie-Talkie UHF/VHF, and RF signals including 315, 433, 868, 915, LORA, and LOJACK. Also functions as an 88-108MHz FM radio breaker. Features battery capacity LCD display showing capacity percentage, working voltage, and current.
Technical Specifications
| Channel | Output Port | Frequency Range | Average Output Power |
|---|---|---|---|
| CH 1 | VHF/LOJACK | 135-175MHz | 30±1dBm/ 1±0.2W |
| CH 2 | 5G600 | 617-698MHz | 30±1dBm/ 1±0.2W |
| CH 3 | 5G3700 | 3600-3900MHz | 30±1dBm/ 1±0.2W |
| CH 4 | 3G2100 | 2110-2180MHz | 30±1dBm/ 1±0.2W |
| CH 5 | RC-868 | 868MHz | 30±1dBm/ 1±0.2W |
| CH 6 | WIFI5.2G 802.11.a | 5100-5500MHz | 30±1dBm/ 1±0.2W |
| CH 7 | 4G2600 | 2620-2690MHz | 30±1dBm/ 1±0.2W |
| CH 8 | 4G800 | 790-826MHz | 30±1dBm/ 1±0.2W |
| CH 9 | FM Radio | 80-108MHz | 30±1dBm/ 1±0.2W |
| CH 10 | RC-433 | 433-434MHz | 30±1dBm/ 1±0.2W |
| CH 11 | 4G700 | 700-803MHz | 30±1dBm/ 1±0.2W |
| CH 12 | GPSL1 | 1560-1610MHz | 30±1dBm/ 1±0.2W |
| CH 13 | LORA/RC915 | 900-930MHz | 30±1dBm/ 1±0.2W |
| CH 14 | 4G2500 | 2500-2620MHz | 30±1dBm/ 1±0.2W |
| CH 15 | GPSL2L3L4L5 | 1170-1390MHz | 30±1dBm/ 1±0.2W |
| CH 16 | CDMA850 | 851-894MHz | 30±1dBm/ 1±0.2W |
| CH 17 | 4G1700 | 1710-1780MHz | 30±1dBm/ 1±0.2W |
| CH 18 | WIFI 6E 802.11ax | 5925-6425MHz | 30±1dBm/ 1±0.2W |
| CH 19 | RC-315 | 315MHz | 30±1dBm/ 1±0.2W |
| CH 20 | GSM900 | 925-960MHz | 30±1dBm/ 1±0.2W |
| CH 21 | DCS1800 | 1805-1920MHz | 30±1dBm/ 1±0.2W |
| CH 22 | WIFI2.4G 802.11.b & g | 2400-2500MHz | 30±1dBm/ 1±0.2W |
| CH 23 | WIFI5.8G 802.11.a | 5500-5900MHz | 30±1dBm/ 1±0.2W |
| CH 24 | 5G3300/3500 | 3300-3600MHz | 30±1dBm/ 1±0.2W |
| CH 25 | UHF&CDMA450 | 400-470MHz | 30±1dBm/ 1±0.2W |
| CH 26 | 5G1500 | 1427-1518MHz | 30±1dBm/ 1±0.2W |
| CH 27 | PCS1900 | 1920-2000MHz | 30±1dBm/ 1±0.2W |
| CH 28 | 4G2300 | 2300-2400MHz | 30±1dBm/ 1±0.2W |
General Specifications
Power Supply: Adapter 50 to 60Hz AC (110-240V AC/12V DC)
Car Charger: DC12V IN
Built-in Battery Runtime: Approximately 80 minutes
Dimensions: 200×133×66mm (without antenna)
Antenna Length: 166-195mm
Gain: 2.0dbi
Packing Size: 295×260×125mm
Net Weight: 2.2kg
Gross Weight: 3.0kg
Total Power: 28W
Shielding Radius: 2-25 meters (depends on signal strength in given area)
Warranty: One year from delivery date
Product Advantages
- World's first 28-band portable jammer with 28 antennas design, blocking FM radio, Wi-Fi 6E, and all cell phone 5G/4G/3G/2G signals including LORA, LOJACK, GPS, Wi-Fi, and RF signals
- 28 watts high output power with jamming range of 2 to 25 meters (at -75dBm, depends on signal strength in given area)
- Advanced cooling system with 3 cooling fans and larger heat sink
- Nylon cover for handheld operation
- DIP switch allows turning on/off any signal band without affecting other bands
- Includes car charger and 12V DC/AC power supply options
- Built-in rechargeable battery provides 80 minutes of continuous operation
- Battery capacity LCD display shows capacity percentage, working voltage, and current
- Safe case packing and handheld design options

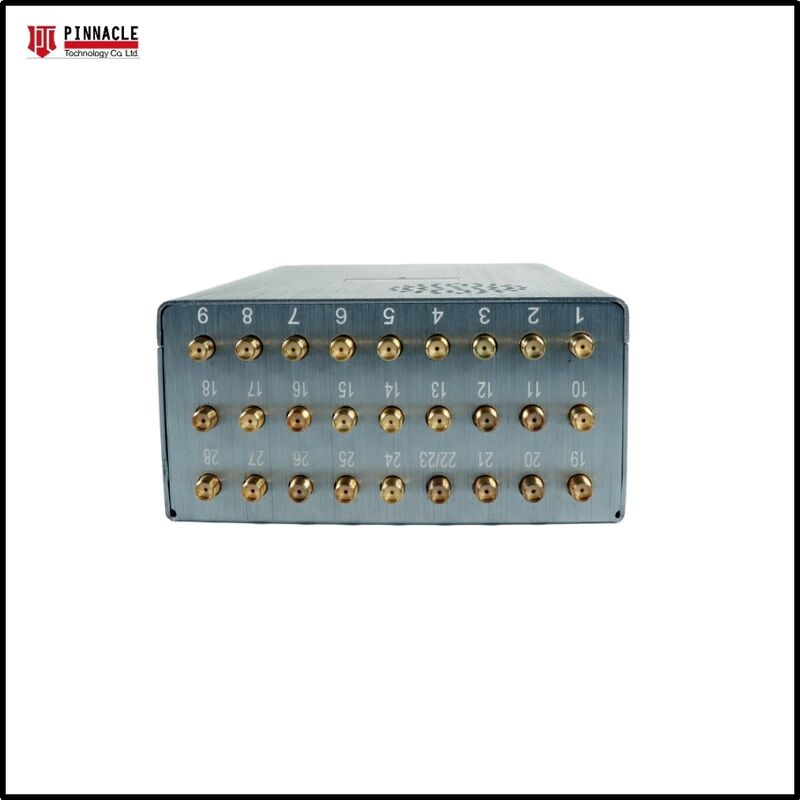

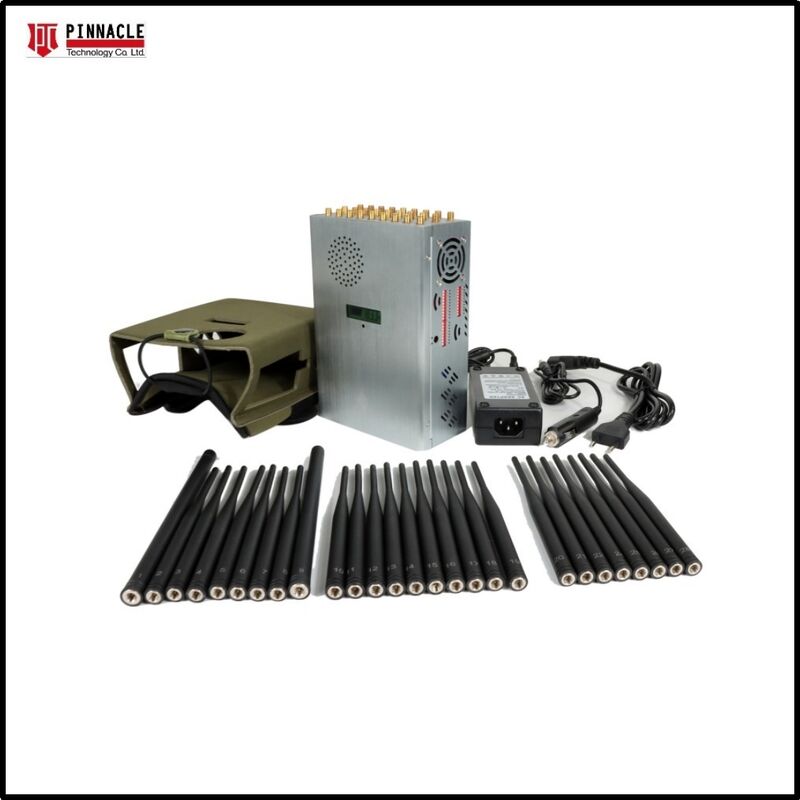

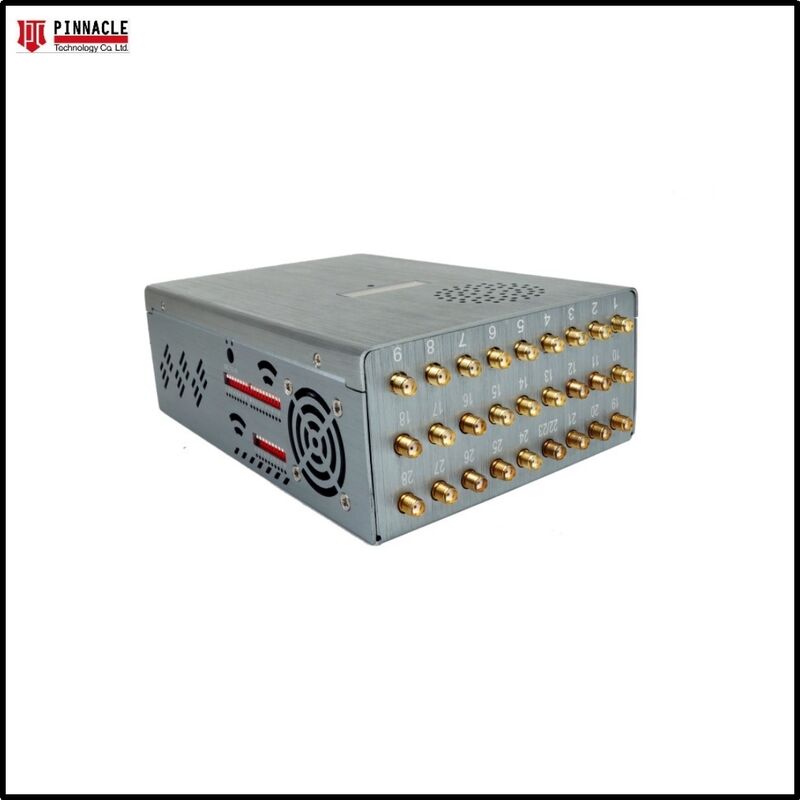

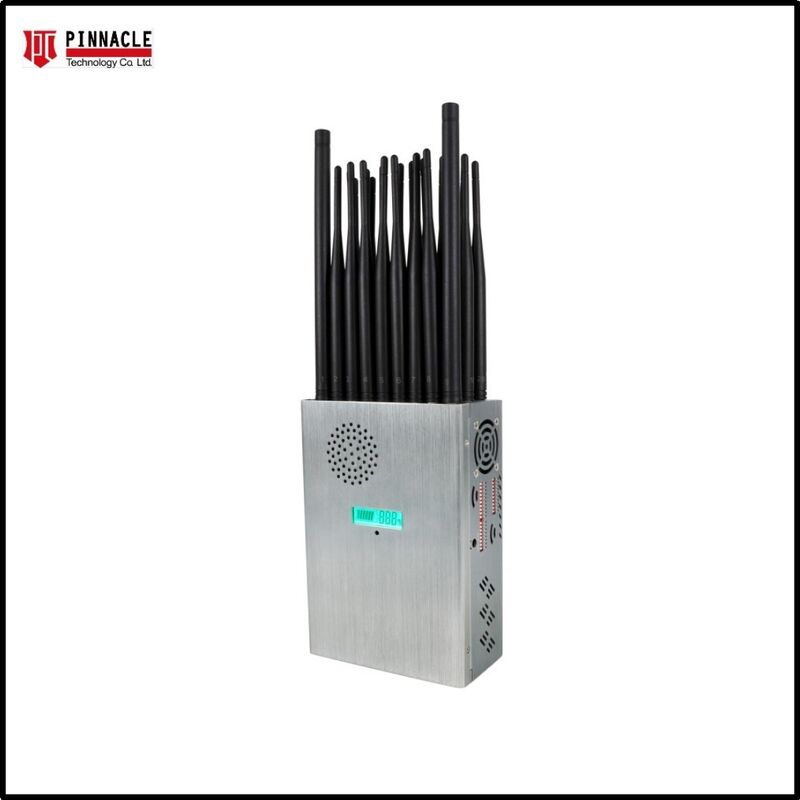

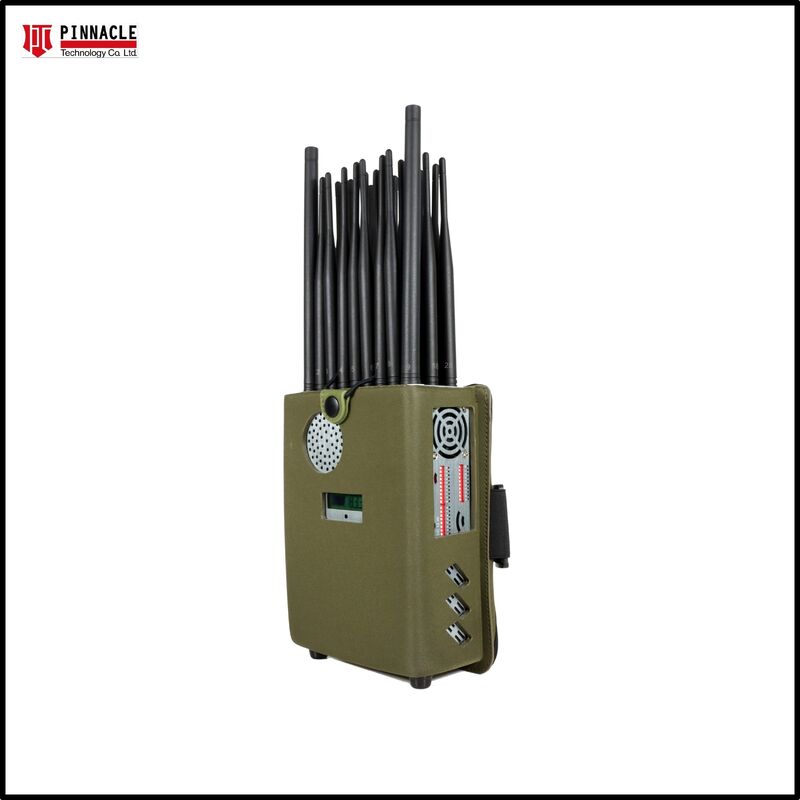

Product Images
Key Product Keywords
Handheld Full Band Signal Blocker
28 Antennas Signal Jammer
Handheld 5G WiFi GPS Remote Control Jammer
