Solid State 200W High Power 2.4G Amplifier
Brand Name:
PTC
Model Number:
HPA2.4G-200W
Place of Origin:
Shenzhen China
Certification:
ISO 9000
MOQ:
1pcs
Price:
Contact Us
Supply Ability:
500000pcs /year
Payment Terms:
T/T, Western Union, MoneyGram
Standard Packaging:
Carton
Product Details
Highlight:
Drone Jamming rf power module
,200W 2.4GHZ rf power module
,Drone Jamming broadband rf power amplifier module
Part Number:
PTC-HPA2.4G-200W
Output Power:
200W
Class:
AB Linear GaN
Product Name:

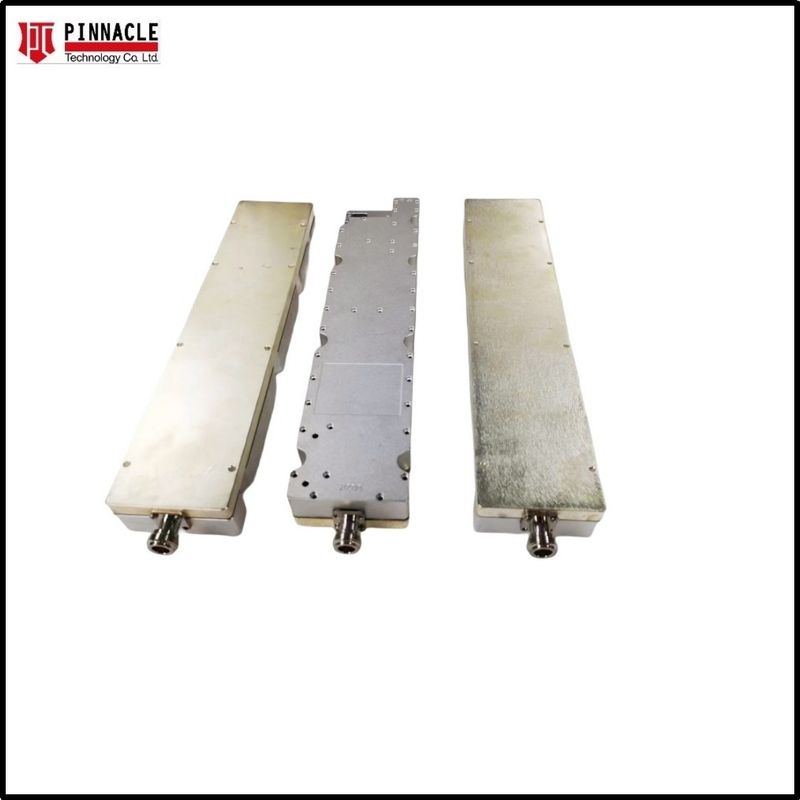

High Power 200W 2.4GHZ Drone Jamming RF Amplifier Signal Modules
Product Description
Detailed Specifications & Features
ELECTRICAL SPECIFICATIONS
| Parameter | Specification | Notes |
| Operating Frequency Range | 2.4G - 2.5 GHz | |
| Power Output | 250 Watt Min | CW |
| Power Output @ P1dB | 200 Watt Typ | CW |
| Power Gain | 53dB Min | |
| Power Gain Flatness | 4.0 dB p-p Max | Constant input power |
| Input / Output Return Loss | 10 dB Min | Relative to 50 Ohm |
| 2-Tone Intermodulation (IMD) | -30 dBc Typ | 40 dBm/Tone, Δ = 1 MHz |
| Harmonics | -20 dBc Typ | -15dBc @ 1GHz - At rated Pout |
| Spurious | -60 dBc Max | Non-harmonics |
| Operating Voltage | 28 VDC Nom | |
| Current Consumption | 48 Amp Max | At rated Pout |
| Max Input Power Protection | +8 dBm | <10 Sec without damage |
| Load VSWR Protection | 5 : 1 | <1 minute at rated output |
| Turn On / Off Speed | 5 µSec Max |
ENVIRONMENTAL CHARACTERISTICS
| Parameter | Specification | Notes |
| Operating Case Temperature | -20 to +65 °C | |
| Storage Temperature | -40 to +85 °C | |
| Relative Humidity | 5 to 95 % | Non-condensing |
MECHANICAL SPECIFICATIONS
| Parameter | Specification | Notes |
| Dimensions | 300 x 400 x 60 mm | Excluding connectors |
| Weight | 8.1 Kg. | |
| RF Connectors In/Out | SMA / Type-N female | |
| DC Power / Interface Connector | Hybrid 9-Pin D-Sub | 9W4 |
| Cooling | External Heatsink | Forced air required |
FEATURES
Class AB linear GaN design
Instantaneous ultra-wide bandwidth
Suitable for all single channel modulation standards
Small form factor & light weight
Built-in protection circuits
High reliability and ruggedness
