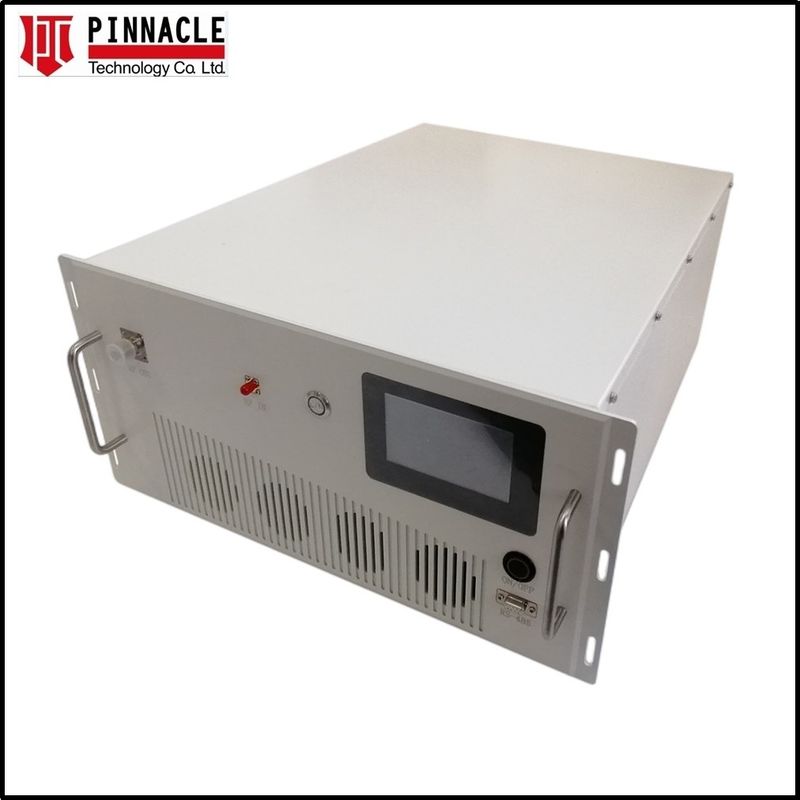

Counter Drone PA RF Power Amplifier Module Signal Jammer Module 200W

Product Details

Product Name:

1000-2000MHz High Power Counter Drone PA/RF Module RF Amplifier With 200W Power With Cabinet

Part Number:

PTC-HPA-200W

Parameters:

Product Advantages,Class A/AB Linear GaN Design,Rack Mounted System,Instantaneous Wide Bandwidth,Suitable For Broadband EMI/RFI Lab Comm. And EW Applications,Suitable For Pulse And All Single Channel Modulation Standards,Built-in Protection Circuits,High R

Highlight:

Counter Drone rf power amplifier module

200W rf power amplifier module

Counter Drone signal jammer module

Payment & Shipping Terms

10W Bluetooth Signal Jammer UHF Power Amplifier Module 5800MHz

Get Best Price

Rack Mounted RF Power Amplifier Module 5.6G-6G ISO9000 Certificated

Get Best Price

Counter Drone PA RF Power Amplifier Module Signal Jammer Module 200W

Get Best Price

Anti Uas RF Wifi Signal VHF Power Amplifier Module 30W Customized

Get Best Price

86-755-86239323

Contact Now

Product Description

Product Details:

Product Parameters:

ELECTRICAL SPECIFICATIONS

Parameter	Specification	Notes
Operating Frequency Range	1.0 - 2.0 GHz
Power Output	120 Watt Min	CW
Power Output @ P1dB	100 Watt Typ	CW
Power Gain	50dB Min
Power Gain Flatness	4.0 dB p-p Max	Constant input power
Input / Output Return Loss	10 dB Min	Relative to 50 Ohm
2-Tone Intermodulation (IMD)	-30 dBc Typ	40 dBm/Tone, Δ = 1 MHz
Harmonics	-20 dBc Typ	-15dBc @ 1GHz - At rated Pout
Spurious	-60 dBc Max	Non-harmonics
Operating Voltage	28 VDC Nom
Current Consumption	28 Amp Max	At rated Pout
Max Input Power Protection	+8 dBm	<10 Sec without damage
Load VSWR Protection	5 : 1	<1 minute at rated output
Turn On / Off Speed	5 µSec Max

ENVIRONMENTAL CHARACTERISTICS

Parameter	Specification	Notes
Operating Case Temperature	-20 to +65 °C
Storage Temperature	-40 to +85 °C
Relative Humidity	5 to 95 %	Non-condensing

MECHANICAL SPECIFICATIONS

Parameter	Specification	Notes
Dimensions	300 x 400 x 60 mm	Excluding connectors
Weight	8.1 Kg.
RF Connectors In/Out	SMA / Type-N female
DC Power / Interface Connector	Hybrid 9-Pin D-Sub	9W4
Cooling	External Heatsink	Forced air required

D-SUB CONNECTOR PIN ASSIGNMENT

Pin	Function	Description
1	FWD	OPTION 101 - Forward power detect
2	VVA	OPTION 103 - Variable Voltage Attenuator
3	CURRENT SENSOR	I_D@20mV/100mA Typ
4	TEMP SENSOR	V_T@10mV/°C + 500mV Typ
5	SHUTDOWN	TTL
A1, A2	VDD	28VDC
A3, A4	GND	Ground
