Product Description

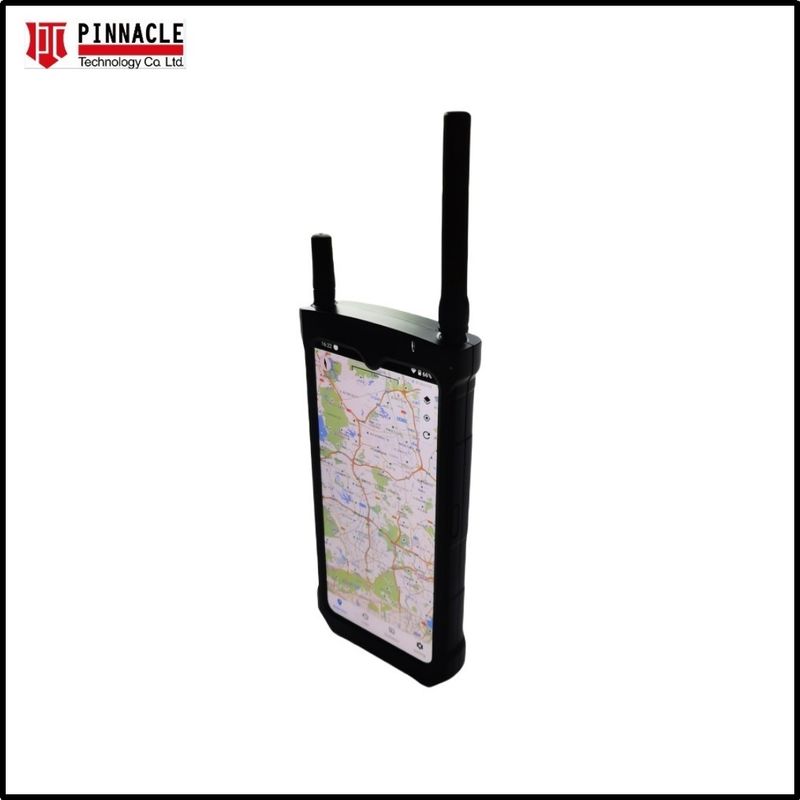

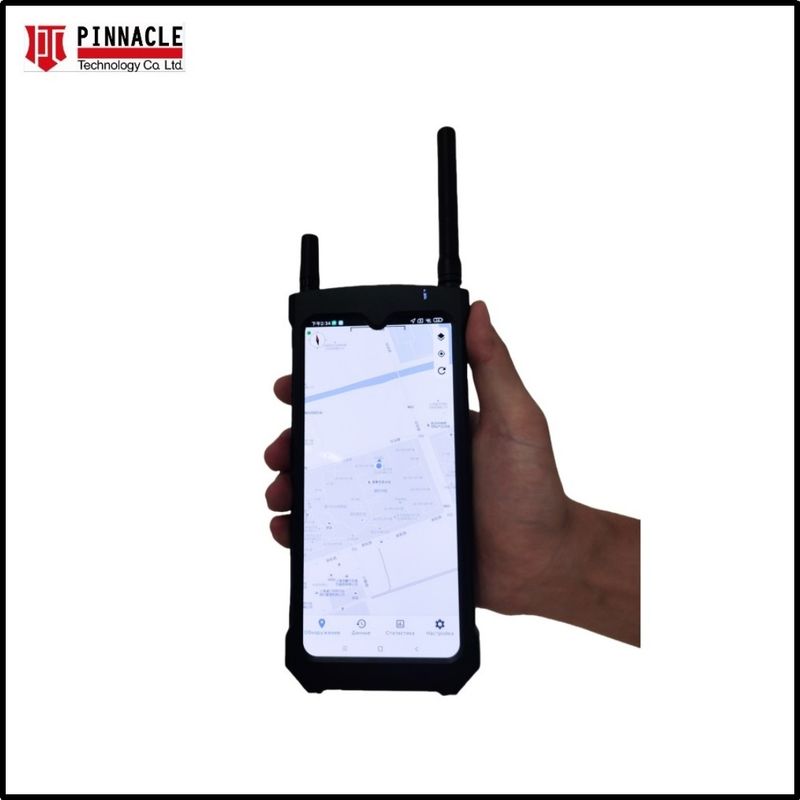

PTC-2LH is a carry-on device for drone Locator of 2.4g and 5.8G, it is a handheld device that can accurately locate drones and pilots (remote controllers). Through deep spectrum analysis and feature recognition of drone signals, it can conduct real-time monitoring of multidimensional information such as drone serial number, model, position, speed, altitude, flight path, and pilot position within the detection range through a single device.
Product Parameters
| # |
Index |
Parameter |
Notes |
| 1 |
Locatable drone models |
DJY, Air, Mini, FPV, Avata, etc |
DJI with OcuSync protocols |
| 2 |
Detection frequency band |
2.4GHz,5.8GHz |
|
| 3 |
Range |
1~2km |
Varies due to environment and drone model |
| 4 |
Positioning accuracy |
≤5m |
Varies due to environment and drone model |
| 5 |
Location refresh time |
≤30s |
|
| 6 |
Dimension |
L*W*H(186mm*86mm*21mm) |
|
| 7 |
Weight |
(455±10)g (not included Antennas) |
|
| 8 |
Battery capacity |
4520mAh |
Built in lithium battery |
| 9 |
Battery working time |
~5 hours |
Screen brightness is 20%, temperature is 25℃ |
| 10 |
Charging time |
~1.5 hours |
Using the original charger |
| 11 |
Working temperature
|
-20~50℃
|
|
| 12 |
Storage temperature
|
-25~60℃
|
|
Product Advantages
Function Description
1) Drone Positioning [1]: A single H1L can locate the coordinate of a drone, which can be displayed in the form of a "drone icon" on the
device screen.
2) Pilot Positioning [2]: Single machine can locate the position of the remote control (pilot), which can be displayed on the device screen as
a "remote control icon".
3) Pilot Position Navigation[3]: H1L can plan the route for searching for drone controllers and provide a "one click position navigation"
function.
4) Unique Identification [4]: Can recognize the unique serial number (SN) of the DJI series (with OcuSync protocol) drone.
5) Trajectory Tracking [5]: It can display the flight trajectories of multiple drones simultaneously on the electronic map interface.
6) Multidimensional Information Monitoring[6]: It can display real-time information such as the current drone model, position
information (longitude and latitude), speed, altitude, and pilot position (longitude and latitude) in the detection list column.
7) Black and Whitelist[7]: A white list can be set, and the device wont alarm once a whitelist drone is detected.
Note: [1] [2] [3] [4][5][6][7] only applies to DJI series with OcuSync protocols.
8) Intrusion Alarm: When a drone intrusion is detected, the device will give an alarm through sound, light, vibration, and other means.
9) Data Playback: Supports the historical track playback function, assisting security personnel in analyzing historical drone flight data.
10)Detection Record: The detection record list can retain historical detection records, including multidimensional information such as drone
serial number, model, frequency, etc.
11)Visual Data Analysis: Support drone detection and flight data statistical analysis, which can be displayed through a graphical interface.

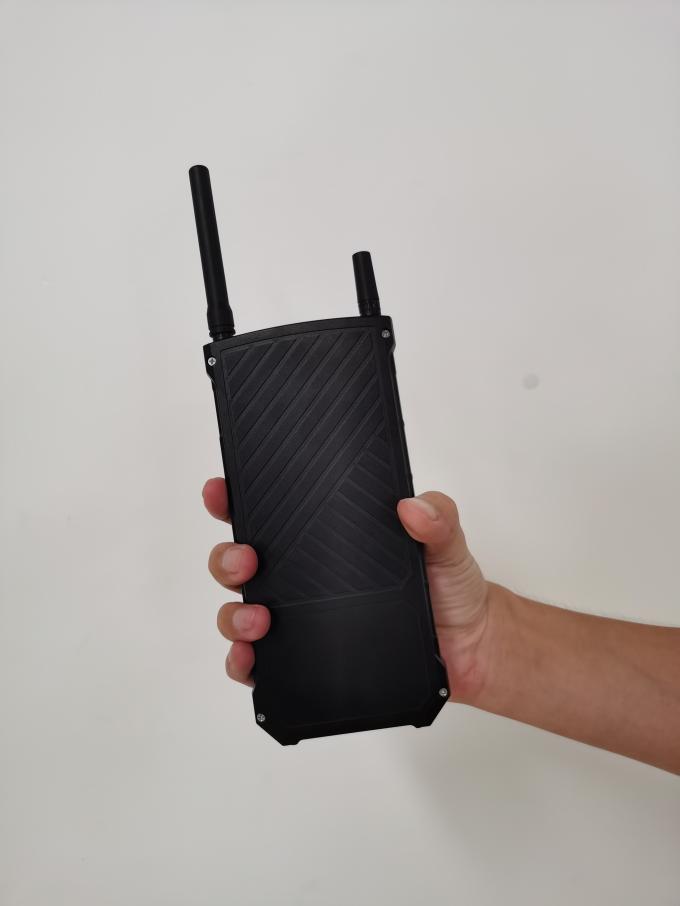

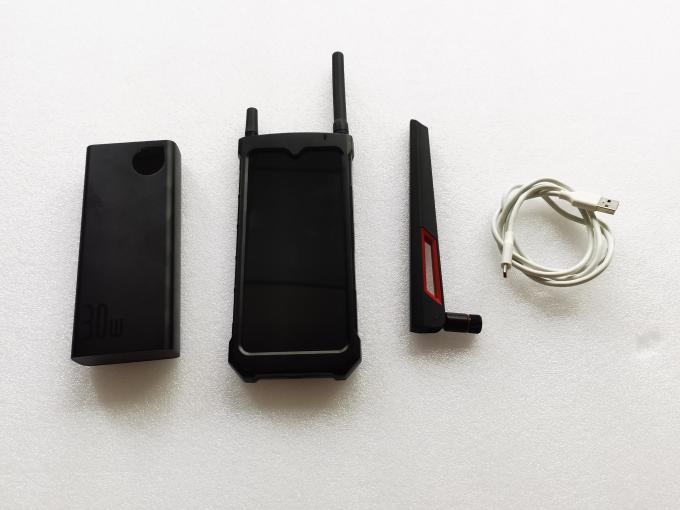

Detailed Photos
