Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
A2GL

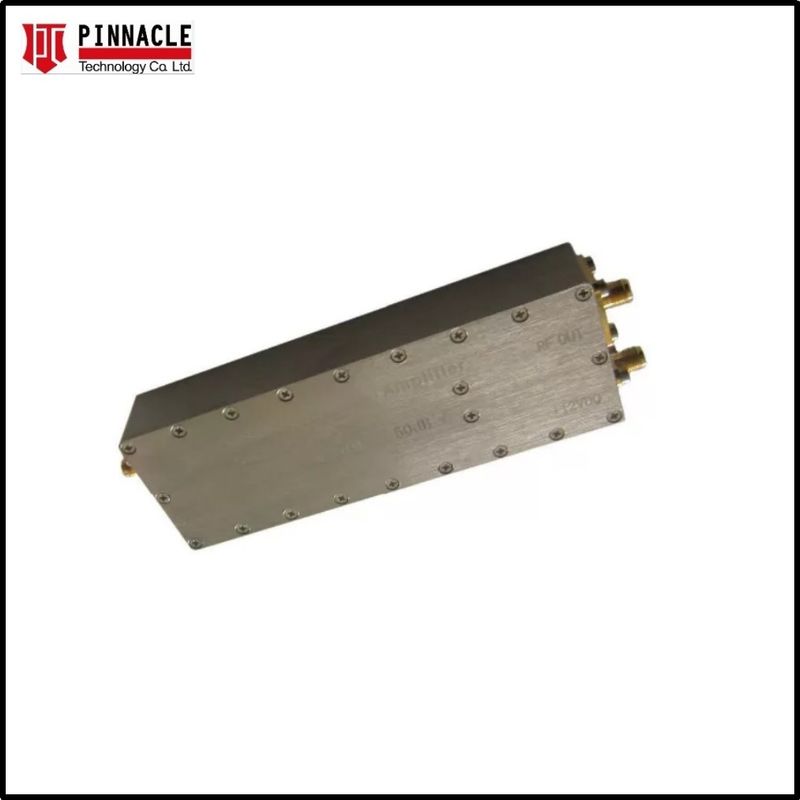

Drone UAV GPS WiFi-5.8g 50W RF Signal Jammer Module
Our RF Power Amplifier Module is designed to provide efficient, high-power RF jamming capabilities in a compact form factor. With a VSWR of 1.5:1, an operating temperature range of -40ºC to +85ºC, and a weight of 100g, it is ideally suited for both indoor and outdoor applications. Output power ranges from 10 to 100W, and a SMA-F connector ensures a reliable connection.
Our RF Power Amplifier Module provides a superior RF jamming performance, making it an ideal choice for a variety of applications. It is designed to be easy to install and operate, and offers superior performance and reliability.
If you are looking for a high-performance RF power amplifier module, then look no further than our RF Power Amplifier Module. With its excellent performance and reliability, it is the perfect choice for your RF jamming needs.
| NO. | Item | Description | Min Typical Max | Unit |
| 1 | Frequency Band | A B C |
1.5 1.6 1.4 1.7 1.1 1.6 |
GHz |
| 2 | Gain | Selectable | 40 50 60 | dB |
| 3 | Gain Flatness | Full Band | +/-0.5 | dB |
| 4 | VSWR | Input/Output | 1.3:1 | |
| 5 | Noise temperature | 23°C | 45 | °K |
| 6 | 1dB Compression Point Power | ≥+10 | dBm | |
| 7 | 3rd Order IMD | Dual-tone-12dBm | ≤-51 | dBc |
| 8 | Gain Stability | 24 Hours | +/-0.5 | dB |
| 9 | Connector | Input/Output | N or SMA | |
| 10 | Input Overload | Overload 1min | 0 | dBm |
| 11 | Working Voltage | DC | +12 +15 | V |
| 12 | Working Temperature | -40~+70 | °C |
Features:
1. Wide Frequency band;
2. Low Output noise;
3. Low power consumption, high linearity;
4. Hybrid micro-assembly process, small size, high stability;
5. Wide operating temperature range;
6. Custom made available
Applications:
