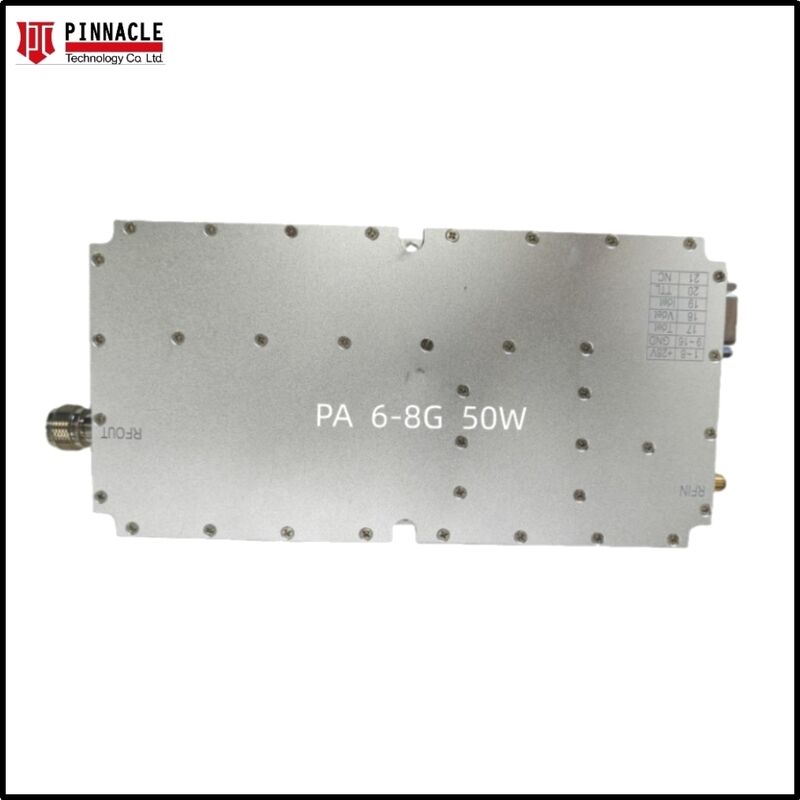

Name: High-Power WiFi 6E RF Jammer Amplifier Module with 50W or 100W Output for 5925-7125 MHz Signal Suppression
Brand: Pinnacle Technology Co., Limited
SKU: PTC-A6E
Price: 22,238.00 USD
Availability: InStock

Home > Products > RF Power Amplifier Module >

High-Power WiFi 6E RF Jammer Amplifier Module with 50W or 100W Output for 5925-7125 MHz Signal Suppression

WiFi 6E RF jammer amplifier

50W high-power RF amplifier module

100W WiFi 6E amplifier with warranty

Place of Origin:

SHENZHEN CHINA

Brand Name:

PTC

Certification:

CE,QS

Model Number:

PTC-A6E

Request A Quote

Product Details

Highlight:

WiFi 6E RF jammer amplifier

50W high-power RF amplifier module

100W WiFi 6E amplifier with warranty

Payment & Shipping Terms

Minimum Order Quantity

1PCS

Price

Neg

Packaging Details

Standard Packing

Delivery Time

5-30days

Payment Terms

T/T, Western Union, L/C, D/A, D/P

Supply Ability

50000/M

RF Power Amplifier Module with 50 Watt Covering 6 to 8GMHz for Signal Jamming Communication and Measurement

Get Best Price

Video

Ultra Wideband RF Power Amplifier Module 2500 to 6000MHz 50W Output Power Suitable for 5G WiFi 6 Satellite and Radar System Applications

Get Best Price

Video

400-3000MHZ Broadband Wide Band 50W RF Power Amplifier Module

Get Best Price

Solid State 200W High Power 2.4G Amplifier

Get Best Price

Contact Now

Product Description

High-Power WiFi 6E 5925 - 7125MHz RF Jammer Amplifier Module with 50W 100W Output

As the wireless landscape evolves, the WiFi 6E (6GHz band) presents new security challenges. Our industrial-grade RF Jammer Module is specifically engineered to provide robust signal suppression across the entire WiFi 6E spectrum (5925-7125 MHz). Featuring high-efficiency GaN technology and a compact form factor, this module is the ideal core component for advanced signal management systems, prison security, and sensitive area protection. The 50W 6E WIFI RF amplifier module is a no signal source amplifier module, designed to be lightweight and easy to mount and carry.

Technical Specifications

Parameter	Specifications (Standard)	Specifications (High Power)
Model	A6E-50W	A6E-100W
Frequency Range	5925 - 7125 MHz (Full WiFi 6E Coverage)	5925 - 7125 MHz
Output Power	50W (47 ± 1 dBm)	100W (50 ± 1 dBm)
Modulation Source	Digital Gaussian Noise / Analog Sweep	Digital Gaussian Noise / Analog Sweep
Input Voltage	DC +28V / +48V Optional	DC +28V / +48V Optional
Operating Current	< 6A (at 28V)	< 12A (at 28V)
RF Interface	N-Female (Output) / SMA (Input)	N-Female (Output) / SMA (Input)
Control Interface	DB9 / DB15 (Customizable)	DB9 / DB15 (Customizable)
Cooling System	Integrated Heat Sink (Fan cooling required)	Advanced Forced Air Cooling
VSWR Protection	Built-in Auto-Shutdown Protection	Built-in Auto-Shutdown Protection

Key Features

Cutting-Edge Frequency Coverage: Targets the latest WiFi 6E 6GHz band, ensuring no security blind spots.
Optional Power Outputs: Choose between 50W for standard range or 100W for ultra-long-distance suppression.
High Stability: Maintains consistent output power even in extreme temperatures (-20°C to +65°C).
Smart Protection: Features over-temperature and high-VSWR (standing wave) protection to prevent hardware damage.
Customization (OEM/ODM): Tailored frequency ranges, gain adjustments, and housing designs available upon request.

Product Applications

Counter-UAV Systems: Effective against drones utilizing the 6GHz control/video downlink.
Sensitive Facility Security: Prisons, military bases, and government buildings.
Privacy Protection: Prevention of unauthorized WiFi 6E data transmission in corporate boardrooms.

Keywords: WiFi 6E Jammer, 6GHz RF Module, 100W Signal Suppressor, 50W RF Power Amplifier, WiFi 6E Security, High Power Jammer Source.

Hot Tags: #WiFi6EJammerModule #6GHzSecurity #RFPowerAmplifier #50W #100W #SignalManagement #WirelessSecurity #AntiDroneTechnology #Custom RF Amplifier Module
