Place of Origin:
Shenzhen China
Brand Name:
PTC
Certification:
ISO 9000
Model Number:
WT300W

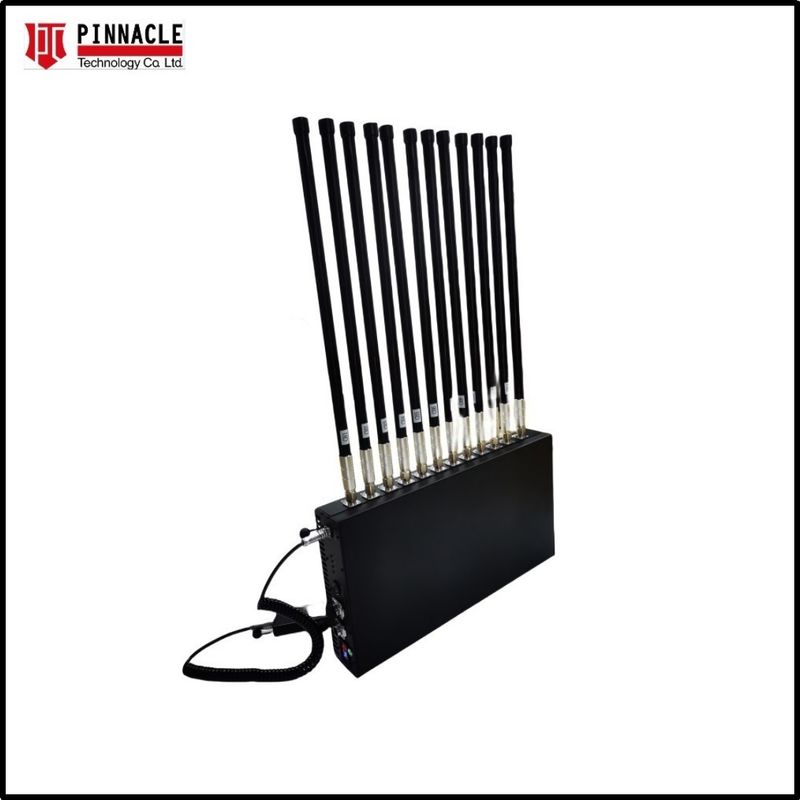

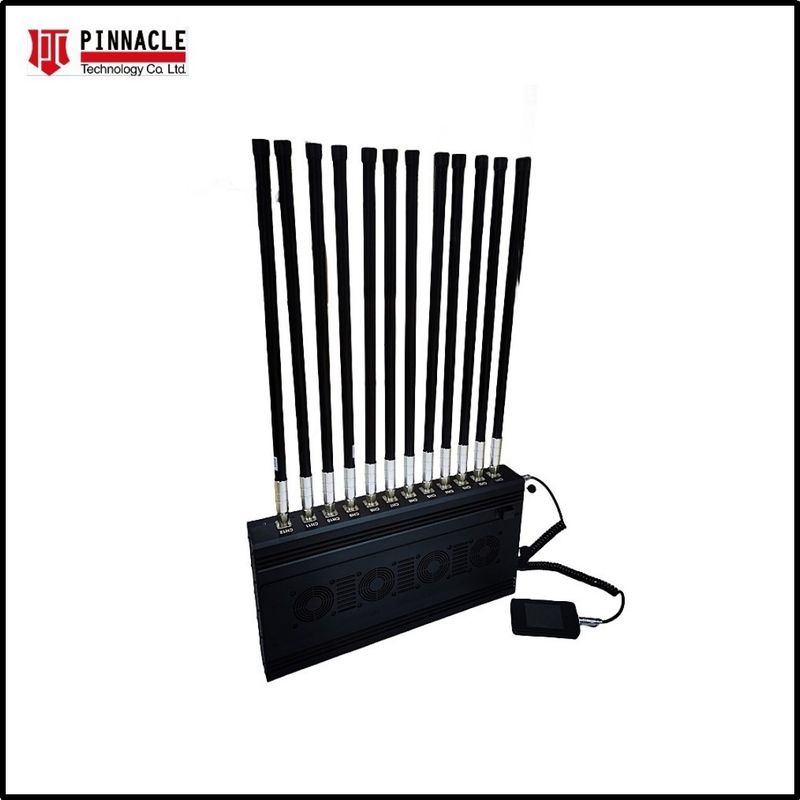

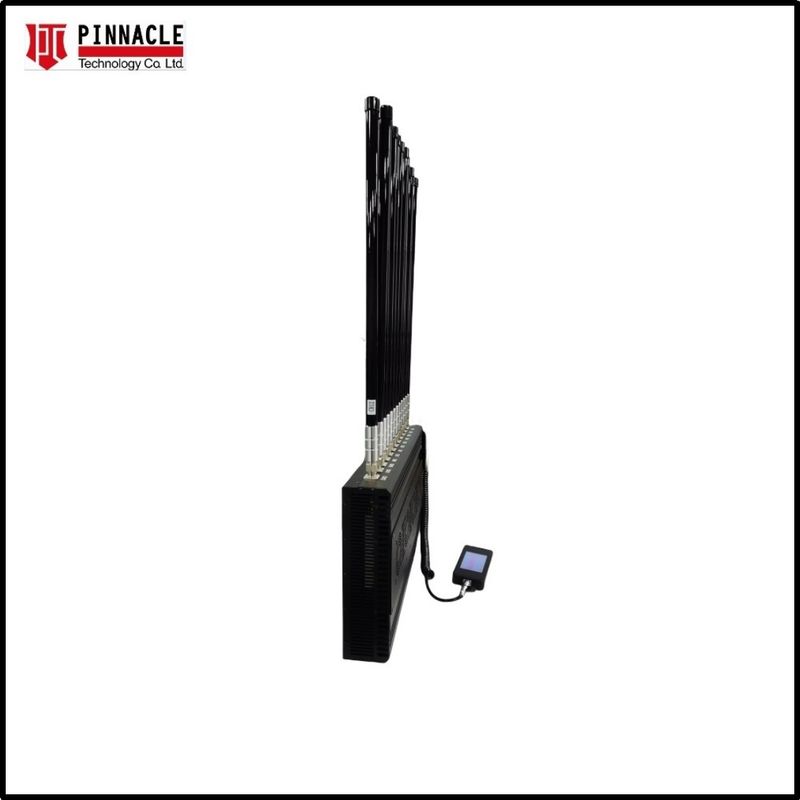

PTC-WT300W is a high power RF Jamming equipment for blocking all the mobile signals and wifi signals indoor, all the jamming frequencies can be customized as per request, it is a desktop model and can be integrated with internal battery if needs.
Technical Parameter:
| Working Frequencies | CDMA: 851-894MHZ |
| GSM: 920-960MHZ | |
| DCS: 1805-1880MHZ | |
| PCS: 1930-1990MHZ | |
| 3g: 2110-2170MHZ | |
|
4g: 725-770MHZ, 790-825MHZ,2300-2400MHZ, 2620-2690MHZ for option |
|
| 5g: 3400-3600MHZ, 3600-3800MHZ for option | |
| Wifi for option: 2.4g(Bluetooth): 2400-2500MHZ | |
| 5.8g: 5150-5850MHZ | |
| Total working bands | 8bands for option |
| Total output power | 240W |
| Each band power | 30W |
| Power Supply | AC-220V/110V, DC-24V |
| Band power adjustable | By computer software LAN to control |
| Antennas | 8pcs 6dBi high gain external Omni directional antenna |
| Jamming Range | about 0-120meters, depend on local signal strength |
| Dimension | 502mmX103mmX280mm |
| N.W | 13.5kgs (no cover antennas) |
| Stand alone module design. | |
| Solid metal outcase, without waterproof | |
| VSWR over protection and temperature over protection | |
| Consumption Power: 700W | |
| Storage temperature: -20℃ ~+60℃ Humidity:5%~90% | |
Product Advantages and Features:
l Each Jammer can jam up to 11 frequencies simultaneously.
l Support high gain Omni antennas
l Supports Remote control for switching ON/OFF Jammer.
l Supports Remote Access Control (computer internet software control) for controlling each band power. Failure alarms and running time.
l UPS and battery backup in case of mains power failure for option.
l ON/OFF each modules separately by software.
l For the cellular phone jamming, only block the downlink frequencies, not disturb the uplink for keeping the BTS normal running.
l Continuous operation, even in hot climates, with no time limit.
l Heat sink designing to make the system in a cooling status.
l (VSWR) circuit protection to ensure system will not burn out in case of antenna short circuiting or disconnection.
Application
It can be applied at prisons, school, meeting rooms, conference rooms, museums, galleries, theaters, concert halls, churches, temples, restaurants, classrooms, training centers, factories, banks, trains, bus and more Places that require silence, confidentiality and information security
For some locations of special purpose such as hospitals, gas stations and more, please do field test first to make sure no interference happened to the normal operation of their equipment and instrument.
Product Image
