Professional High Power Prison Jammer with Blacklist & Whitelist Control
Brand Name:
PTC
Model Number:
PTC-AIWP400W
Place of Origin:
Shenzhen China
Certification:
ISO 9000
MOQ:
1Unit
Price:
Contact Us
Supply Ability:
50000
Delivery Time:
10-20days
Payment Terms:
Western Union,MoneyGram,T/T
Standard Packaging:
Carton, wooden packing
Product Details
Highlight:
high power prison signal jammer
,prison phone jammer with blacklist
,whitelist control mobile signal jammer
Part Number:
PTC-AIWP400W
Antenna Type:
High Gain Directional Antenna
Power Control:
Power Adjustable By Software
Software Control:
For Turning ON/OFF Jammer And Failure Alarm
Total Output Power:
400W
More Function:
Black List & White List Control
Installation Type:
Wall-mounted Or Pole Mounted
Jamming Frequencies:
Cellphone 2G/3G/4G/5G +wifi GPS Signals
Product Description
Detailed Specifications & Features

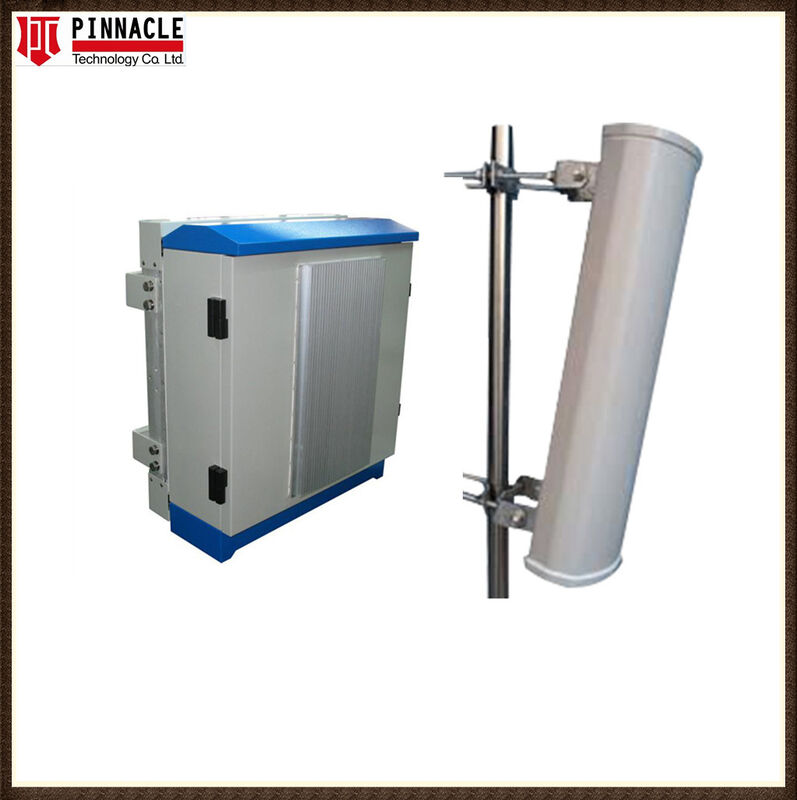

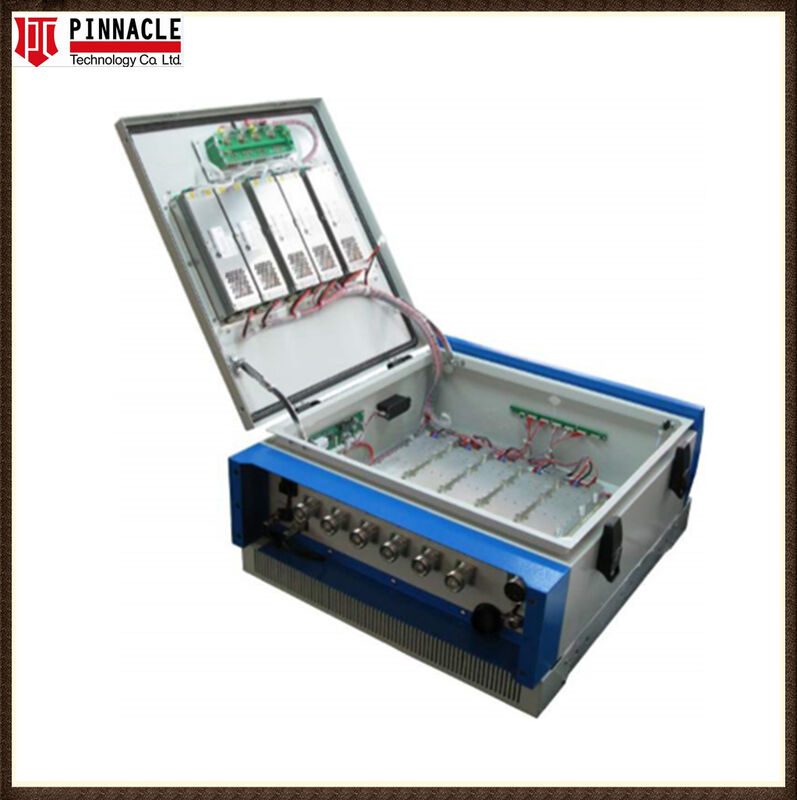

Professional High Power Prison Jammer with Blacklist & Whitelist Control
PTC Professional Prison Jammer designed for correctional facilities. Block 2G, 3G, 4G, 5G, and WiFi signals with wide coverage and stable operation. Unlike traditional signal jammers that block all communications, our Prison Jammer provides intelligent control with Black & White List management, ensuring both security and operational efficiency.
Technical Specifications
| Channels No. | Frequencies | RF Output Power +/-1dBm |
|---|---|---|
| 1 | 790-894MHz | 50W |
| 2 | 925-960MHz | 50W |
| 3 | 1805-1880MHz | 50W |
| 4 | 2110-2170MHz | 50W |
| 5 | 2620-2690MHz | 50W |
| 6 | 2400-2500MHz | 50W |
| 7 | 5150-5850MHz | 50W |
| 8 | 3300-3800MHz | 50W |
Total Working Channels: 8 channels (20-6000MHz frequencies for option)
Each Band Power: 50W
Total Output Power: 400W
Integrated Function: Blacklist & Whitelist Control for option
Remote Control: Support Infrared remote control and software Ethernet Access control
Power Adjustable: Each band power can be adjustable by software, monitoring all jammers and failure alarms by software
Jamming Range: 50-300 meters @-85dBm
Antennas: 1pcs High Gain Directional Antennas fully tuned 1 jammer
Jammer Dimension: 700*550*300mm (LxWxD)
Jamming Technology: SDR Solutions
Power Supply: AC: 110-240V/DC-48V
Waterproof Grade: IP65
Net Weight: 50Kg
Working Temperature: -20ºC to +50ºC
Working Humidity: 5% - 95%
Jamming Frequency Range: Mobile frequencies + WiFi Signals, GPS for option
Jamming Target: 2G/3G/4G/5G mobile phone signals + WiFi 2.4G, WiFi 5.8G
Black & White List Control System
Intelligent Signal Control for Secure Facilities
Our Prison Jammer System supports an advanced Black & White List Management Function, allowing administrators to control which devices are allowed or blocked within the prison coverage area.
This ensures secure communication management while allowing authorized devices to operate normally.
- Allow authorized staff phones
- Block illegal inmate devices
- Centralized management
- Flexible configuration
- Long Jamming Range with SDR Solution
Optional Smart Functions
Available upgrades:
- OPTIONAL IMSI Catcher Integration
- OPTIONAL Real-time Device Tracking
- OPTIONAL Remote Monitoring
- OPTIONAL Alarm System
- OPTIONAL Data Logging
Centralized Management System
Remote Control Software supports:
- Device management
- Blacklist configuration
- Whitelist configuration
- Real-time monitoring
- Failures status monitoring
Supports:
- LAN control
- Remote management
- Control center integration
Applications
Correctional Facilities
- Prisons
- Detention Centers
- Jail Facilities
Prevent illegal communication between inmates and outside contacts.
High Security Locations
- Sensitive important facilities
- Government buildings
- Secure compounds
Law Enforcement Areas
- Interrogation rooms
- Evidence rooms
- Restricted zones

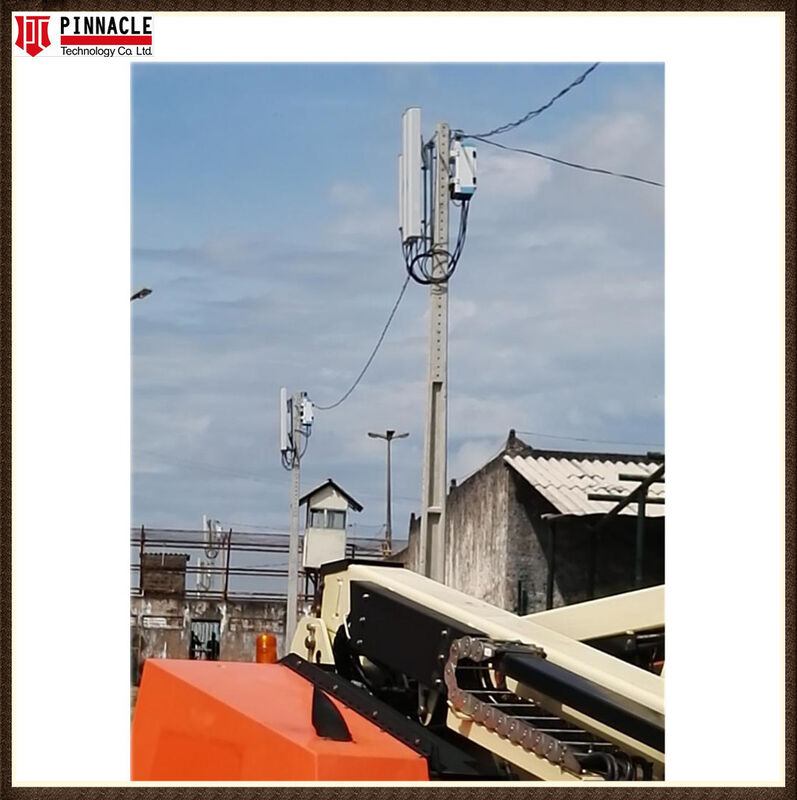

Installation Solution
Installation methods:
- Wall mounted
- Pole mounted
- Desktop Mounted
